K4259-3 - Lincoln Prism Mobile Fume Extractor One-Pak, 10ft Arm, MERV 14, Arc Sensor & Lamp

Packaging: 1 Per Ea
$14,322.38/EA $7,920.06/1 Per Ea only $7,920.06/EASave 45%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln Prism Mobile One-Pak

Safety and efficiency go hand-in-hand with the Lincoln Electric Prism® Mobile One-Pak® (K4259-3). Designed to meet the demands of modern welding environments, this mobile fume extractor provides a robust solution for controlling welding smoke and fumes. Whether you are working in a school, a training center, or a professional fabrication shop, the Prism Mobile helps maintain a cleaner, healthier workspace. This "One-Pak" bundle takes the guesswork out of ordering by including everything you need to get started: the base unit, a high-efficiency MERV 14 filter, and a 10-foot extraction arm equipped with advanced sensor technology.

Smart Technology for Energy Savings

One of the standout features of this model is the integrated Arc Sensor and Lamp Kit. The Arc Sensor transforms the unit into an intelligent system that responds to your work. It automatically activates the extraction motor when you strike an arc and powers it down when you stop, extending the life of the motor and reducing energy bills. The Lamp Kit, mounted inside the extraction hood, casts bright light directly onto your workpiece, helping you see the puddle clearly even in dimly lit shop corners. This combination of automation and visibility allows welders to focus entirely on their craft without worrying about manually operating the extractor.

Reliable Performance and Mobility

The Prism Mobile is built on a sturdy platform with heavy-duty wheels, allowing you to roll the unit right up to the job. The 10-foot arm is counterbalanced for easy positioning, staying exactly where you put it to capture fumes effectively. The system utilizes a disposable MERV 14 filter with a massive surface area, which means fewer filter changes and lower long-term operating costs. An easy-to-read filter status indicator takes the guesswork out of maintenance. With 750 CFM of airflow and 120V input power, this unit delivers industrial-grade performance in a portable, user-friendly package.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-per-ea
Input Voltage:120V
Input Phase:1-Phase
Amperage:6.1 A
Air Flow:750 CFM
Filter Type:MERV 14
Arm Length:10 ft
Dimensions:36 in x 32 in x 48 in
Weight:294 lbs
Warranty:3 Years

INCLUDED

  • Prism Mobile Base Unit (K1653-4)
  • 10 ft (3 m) Extraction Arm (K2633-6)
  • Integrated Arc Sensor
  • Integrated Lamp Kit
  • MERV 14 Filter (KP1653-5)
  • Plastic Housing
  • Flexible Hose 2 ft (0.6 m)
  • Pre-filter/spark arrestor
  • 19 ft (6 m) input power cord

APPLICATIONS

  • Automotive Repair and Fabrication
  • General Fabrication Shops
  • Heavy Fabrication
  • Plant Maintenance & Repair Operations (MRO)
  • Repair Welding
  • Robotic Welding Cells
  • Shipbuilding
  • Structural Steel Fabrication
  • Educational Institutions and Training Centers

FAQ

The unit provides approximately 750 CFM (Cubic Feet per Minute) of airflow, depending on the arm configuration and filter status.

Yes, this specific One-Pak (K4259-3) includes an Arc Sensor that automatically turns the vacuum motor on when an arc is struck and off when welding stops.

It uses a disposable MERV 14 filter (KP1653-5) which captures up to 84% of particles between 0.3 and 1 micron.

No, the main filter is a disposable, non-cleaning type. It must be replaced when the filter status indicator shows it is full.

This package includes a 10-foot (3 meter) flexible extraction arm.

Yes, this model comes with a Lamp Kit installed in the hood to illuminate the work area.

The Prism Mobile runs on standard 120V, single-phase, 60 Hz input power and draws about 6.1 Amps.

No, the Prism Mobile is designed for welding fumes only and is not suitable for cutting or arc gouging operations due to the high volume of sparks and particulate.

CATALOGUE & SPEC SHEETS

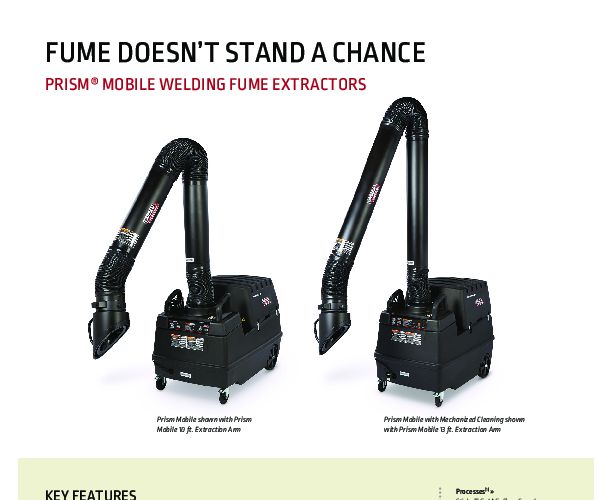

Spec Sheet
