K4259-7 - Lincoln Prism Mobile Fume Extractor 10ft Arm One-Pak

Packaging: 1 Per Ea
$15,132.68/EA $8,296.21/1 Per Ea only $8,296.21/EASave 45%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Prism® Mobile One-Pak®

Protecting yourself from welding fumes shouldn't be a hassle. The Lincoln Electric Prism® Mobile One-Pak® (K4259-7) is your all-in-one solution for cleaner air and a safer shop. This mobile fume extractor is ready to roll right out of the box, designed to move with you around the garage or shop floor. Whether you are MIG, TIG, or Stick welding, the Prism Mobile captures smoke before it reaches your breathing zone, thanks to its powerful 735 CFM airflow and professional-grade MERV 16 filter. It captures 95% of the microscopic particles that standard filters miss, keeping your lungs and your workspace clean.

Smart Features for the Modern Welder
Forget about walking back and forth to turn your extractor on and off. The K4259-7 comes with an intelligent Arc Sensor built right into the hood. It detects your arc flash and automatically turns the vacuum on, then shuts it off when you stop welding. This smart feature saves on electricity and keeps the shop quiet between welds. Plus, the included Lamp Kit shines bright light exactly where you need it—on your puddle—so you can focus on laying perfect beads without straining your eyes.

Convenience and Mobility
The 10-foot flexible arm stays where you put it, giving you the reach you need for various setups. The unit runs on standard 120V power, so you can plug it in anywhere. With its rugged wheels and casters, you can easily glide the unit between workstations or push it into a corner when the job is done. The Prism Mobile is the ultimate partner for welders who demand safety without sacrificing convenience.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1 of each
Airflow Capacity:735 CFM, 750 SCFM
Filter Type:MERV 16, Nano Filter
Arm Length:10 ft
Input Voltage:120 V
Phase:1-Phase
Dimensions:36 in x 32 in x 48 in
Weight:303 lb

INCLUDED

  • Prism® Mobile Base Unit (K1653-5)
  • 10 ft. Flexible Extraction Arm with Arc Sensor & Lamp Kit (K2633-6)
  • MERV 16 (HE) Nano Filter (KP1673-9)
  • Pre-Filter (KP1673-5)
  • 19 ft. Input Power Cord

APPLICATIONS

  • Small Manufacturing Facilities
  • Educational Institutions and Training Centers
  • Fabrication Shops
  • Plant Maintenance and Repair Operations (MRO)
  • General Welding Applications (MIG, TIG, Stick, Flux-Cored)

FAQ

The Prism Mobile provides approximately 735 CFM of airflow when equipped with the 10 ft extraction arm.

It uses a MERV 16 (HE) Nano Filter (KP1673-9) which captures 95% of particles from 0.3 to 1 micron.

No, the Prism Mobile operates on standard 120V, single-phase, 60 Hz input power.

No, the Prism Mobile is designed for light to medium-duty welding fumes and is not suitable for cutting or arc gouging operations.

The Arc Sensor detects the light from the welding arc and automatically turns the vacuum motor on. When the arc is extinguished, it switches the unit to standby mode.

No, the main MERV 16 filter is a disposable system. The unit features a filter status indicator to let you know when it needs replacement.

The One-Pak includes the base mobile unit, a 10 ft flexible extraction arm with installed Arc Sensor and Lamp Kit, a MERV 16 filter, a pre-filter, and a power cord.

The shipping weight is approximately 303 lbs. The unit is mounted on casters for easy mobility.

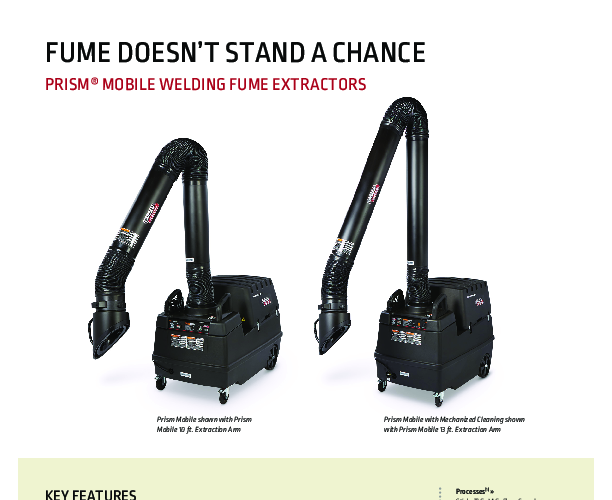

CATALOGUE & SPEC SHEETS

Spec Sheet
