K4259-5 - Lincoln Prism Mobile One-Pak Fume Extractor with 13ft Arm & Arc Sensor (MERV 14)

Packaging: 1 Per Ea
$14,449.42/EA $8,220.97/1 Per Ea only $8,220.97/EASave 43%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln Prism® Mobile One-Pak®

Take control of your shop's air quality with the Lincoln Electric Prism® Mobile One-Pak® (K4259-5), the ultimate all-in-one solution for mobile welding fume extraction. Designed for welders who need flexibility without compromising on safety, this powerful unit rolls right up to your workspace to capture fumes at the source. With a generous 13-foot extraction arm, you can easily position the hood exactly where you need it, keeping your breathing zone clear and your shop floor compliant with safety standards.

What sets this package apart is the intelligent Arc Sensor and Lamp Kit. Forget about walking back and forth to turn the machine on and off; the Prism Mobile detects when you strike an arc and automatically powers up the extraction. When you stop welding, it shuts down, saving you electricity and reducing shop noise. The integrated lamp also lights up your workpiece, giving you better visibility for precision welds. It’s convenience and performance wrapped in one rugged, American-assembled package.

Why Choose the Prism Mobile K4259-5?

  • Superior Filtration: The MERV 14 filter captures fine weld fumes effectively, while the massive 538 square foot surface area means you spend less time changing filters and more time welding.
  • Ready to Roll: Heavy-duty rear wheels and front casters make it easy to maneuver around equipment, jigs, and tight corners.
  • Plug and Play: Runs on standard 120V power, so you can plug it in almost anywhere in your facility.
  • Safety First: An internal spark arrestor adds a layer of protection, preventing hot sparks from damaging the main filter.

Whether you are running a fabrication shop, a maintenance department, or a welding school, the Lincoln Prism Mobile One-Pak is the smart investment for a cleaner, healthier, and more productive work environment. Get the complete package today and experience the difference of professional-grade fume control.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-of-each
Input Voltage:120V
Input Phase:1-Phase
Amperage:6.1 A
Airflow Capacity:750 CFM
Filter Type:MERV 14
Arm Length:13 ft
Weight:135 kg
Dimensions:36 in x 32 in x 48 in
Filter Surface Area:538 ft²

INCLUDED

  • (1) Prism® Mobile Base Unit (K1653-4)
  • (1) 13 ft. Flexible Extraction Arm (K2633-7)
  • (1) Arc Sensor / Lamp Kit (Installed)
  • (1) MERV 14 Filter (KP1653-5)
  • (1) Plastic Housing
  • (1) 2 ft Flexible Connection Hose
  • (1) Power Cord

APPLICATIONS

  • General Fabrication
  • Maintenance and Repair Operations (MRO)
  • Automotive Welding
  • Welding Schools and Training Centers
  • Light to Medium Duty Manufacturing
  • Structural Fabrication
  • Robotic Welding Cells (Mobile Support)

FAQ

The K4259-5 Prism Mobile comes equipped with a MERV 14 rated filter, which is highly efficient at capturing fine welding fume particulates.

No, the Prism Mobile operates on standard 120V, single-phase power (60Hz), drawing approximately 6.1 Amps.

The Arc Sensor detects the light from the welding arc and automatically turns the extraction fan on. When the arc is extinguished, the fan turns off after a set delay, conserving energy.

No, the Prism Mobile is a low-vacuum system designed for welding fumes. It is not suitable for cutting, arc gouging, or heavy grinding due to the high volume of sparks and debris.

Filter life depends on usage intensity. However, the unit features a color-coded filter status indicator that visually alerts you when the filter is saturated and needs replacement.

This specific One-Pak (K4259-5) includes a 13-foot (4 meter) flexible extraction arm, providing extensive reach for various workstation configurations.

No, the main filter is a disposable type. The large surface area (538 sq. ft.) is designed to hold a significant amount of particulate before needing replacement.

The One-Pak includes the base unit, arm, and accessories. Some assembly, such as attaching the arm and hose to the base unit, is required upon delivery.

CATALOGUE & SPEC SHEETS

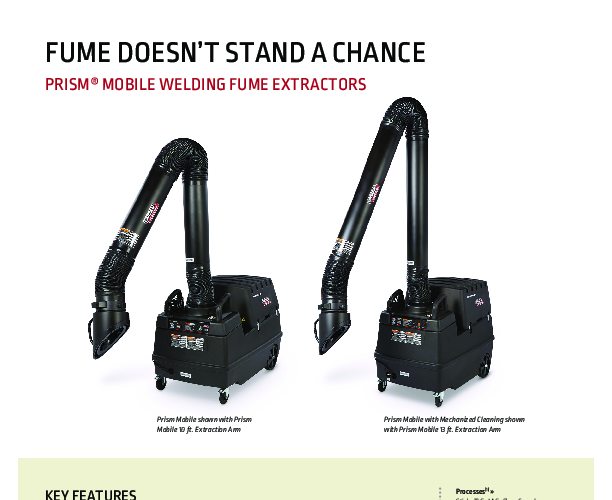

Spec Sheet
