K4259-4 - Lincoln Prism Mobile Fume Extractor One-Pak with 13ft Arm & MERV 14 Filter

Packaging: 1 Per Ea
$13,309.48/EA $7,910.89/1 Per Ea only $7,910.89/EASave 41%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln Prism® Mobile One-Pak®

Take control of the air quality in your shop with the Lincoln Electric Prism® Mobile One-Pak® (K4259-4). Welding fumes are more than just a nuisance; they can obscure your view of the puddle and pose long-term health risks. The Prism Mobile is the ultimate "plug-and-play" solution for welders who need powerful, portable fume extraction without the hassle of installing permanent ductwork. This complete package comes with everything you need to get started, including the mobile base unit, a high-reach 13-foot extraction arm, and a long-lasting MERV 14 filter.

Maximum Reach for Any Job

One of the standout features of this package is the included 13-foot extraction arm. Unlike shorter arms that force you to constantly move the base unit, this extended arm gives you the freedom to work around large assemblies or reach across workbenches with ease. The arm is counterbalanced and flexible, allowing you to position the hood right at the source of the fumes—and it stays there. Whether you are welding on a car lift, a large structural beam, or a benchtop jig, the Prism Mobile adapts to your workflow, not the other way around.

Smart Filtration that Saves You Money

Nobody likes downtime, and nobody likes buying replacement filters constantly. The Prism Mobile addresses both issues with its massive 538 square foot filter surface area. This design allows the unit to hold more dust and particulate before restricting airflow, meaning you get more hours of welding out of every filter. The MERV 14 rating ensures that even fine smoke particles are trapped, returning cleaner air to your shop. Plus, the handy filter status indicator on the front of the machine takes the guesswork out of maintenance—you'll know exactly when it's time for a change.

Built for the Shop Environment

Rugged, reliable, and ready to roll, the Prism Mobile is built on a sturdy chassis with heavy-duty wheels. You can easily push it from one bay to another, making it a perfect shared resource for smaller shops or schools. It runs on standard 120-volt household power, so you can plug it in anywhere. It also features an internal spark arrestor to protect the filter from hot sparks, adding an extra layer of safety to your operation. Invest in your health and your shop's cleanliness with a fume extractor that works as hard as you do.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1 of each
Input Voltage:120 V
Phase:1-Phase
Amperage:6.1 A
Airflow Capacity:750 SCFM
Filter Rating:MERV 14
Arm Length:13 ft
Weight:297 lbs
Warranty:3 Years

INCLUDED

  • (1) Prism Mobile Base Unit (K1653-4)
  • (1) 13 ft. Fume Extraction Arm (K2633-7)
  • (1) MERV 14 Filter (KP1653-4)
  • (1) Plastic Housing
  • (1) Flexible Connection Hose 2 ft (0.6 m)

APPLICATIONS

  • General Fabrication Shops
  • Maintenance and Repair Operations (MRO)
  • Welding Schools and Training Centers
  • Automotive Repair and Restoration
  • Light to Medium Duty Structural Fabrication
  • Robotic Welding Cells (as auxiliary extraction)

FAQ

The Lincoln Prism Mobile provides an airflow capacity of 750 SCFM (Standard Cubic Feet per Minute), which is sufficient for effective fume extraction in light to medium-duty welding applications.

No, the Prism Mobile operates on standard 120V, 1-phase, 60Hz power and draws approximately 6.1 Amps, making it easy to plug into standard wall outlets.

Filter life depends on usage intensity and the type of welding being performed. However, the Prism Mobile features a filter status indicator that visually displays the remaining life, and its large 538 sq. ft. surface area is designed to last longer than standard filters.

Yes, this is a One-Pak® package (K4259-4) which includes the base unit and the K2633-7 13-foot flexible extraction arm.

While it can handle incidental dust, the Prism Mobile is primarily designed for welding fumes. It is not suitable for heavy grinding applications, cutting, or arc gouging operations due to the risk of fire and filter clogging.

The included filter (KP1653-4) has a MERV 14 rating, which is highly efficient at capturing fine particulates found in welding fumes.

Yes, the Prism Mobile features an internal spark arrestor that functions as a pre-filter to catch larger particles and prevent sparks from reaching the main filter.

The unit weighs approximately 297 lbs. However, it is equipped with front casters and large rear wheels to make it mobile and easy to position within the shop.

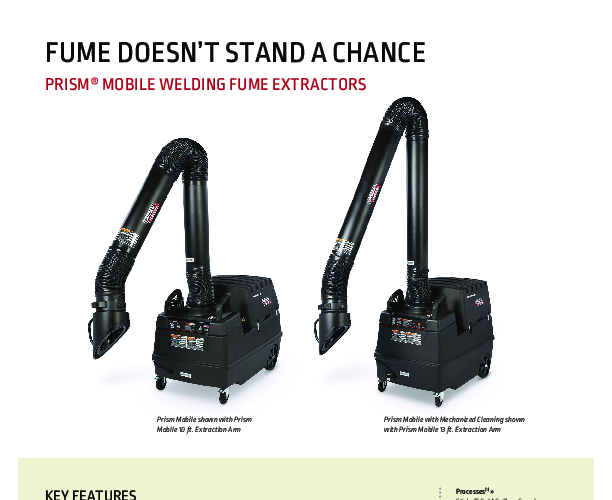

CATALOGUE & SPEC SHEETS

Spec Sheet
