K4384-2 - Lincoln Prism Mobile Fume Extractor 10ft Arm MERV 14 One-Pak

Packaging: 1 Per Ea
$23,141.52/EA $11,965.56/1 Per Ea only $11,965.56/EASave 48%

Usually ships within 3-5 business days

OVERVIEW

Protect Your Shop with the Lincoln Prism Mobile One-Pak

Breathe easier and weld smarter with the Lincoln Electric Prism® Mobile Fume Extractor One-Pak (K4384-2). This comprehensive package is the ultimate solution for welders who need professional-grade fume control that moves with them. Whether you are running a busy fabrication shop, a training center, or a maintenance department, the Prism Mobile ensures that smoke and fumes are captured instantly, keeping your air clean and your lungs protected. This "One-Pak" bundle comes fully loaded with everything you need to get started, including the base unit, a 10-foot extraction arm, and a high-efficiency MERV 14 filter.

Less Maintenance, More Welding

Nobody likes stopping in the middle of a job to clean a filter. That’s why the Prism Mobile features the innovative RotaPulse® automatic cleaning system. By connecting the unit to your shop's compressed air, the system automatically pulses the filter to knock down dust and debris. This self-cleaning action keeps your suction strong and your filter lasting longer, saving you money on replacements and time on maintenance. Plus, the built-in Filter Status Indicator gives you a clear visual alert when it is finally time for a change, taking the guesswork out of equipment upkeep.

Smart Features for the Modern Welder

The Prism Mobile isn't just a vacuum; it's a smart assistant. The included Arc Sensor detects when you strike an arc and automatically turns the extraction on. When you stop welding, it shuts off. This feature saves electricity and keeps your shop quieter when you aren't under the hood. The extraction arm also features a built-in Lamp Kit, putting bright light exactly where you need it—right on the weld puddle. With its internal spark arrestor and rugged wheels, this unit is built to handle the tough environment of a real welding floor.

Ready to Roll

Weighing in at 314 lbs but designed for easy movement, the Prism Mobile rolls smoothly on front casters and large rear wheels. It plugs into standard 120V power, so you can use it anywhere in the shop. Don't compromise on safety or efficiency. Invest in the Lincoln Prism Mobile K4384-2 and experience the difference of clean air and automated convenience.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-per-ea
Airflow:735 CFM
Filter Type:MERV 14
Arm Length:10 ft
Input Voltage:120V
Phase:1-Phase
Cleaning System:RotaPulse Automatic
Dimensions:40 in x 32 in x 48 in
Weight:314 lbs

INCLUDED

  • (1) Prism Mobile Base Unit
  • (1) KP1653-5 MERV 14 Filter
  • (1) Plastic Housing
  • (1) Flexible Hose 2 ft (0.6 m)
  • (1) K2633-6 Fume Extraction Arm 10 ft (3 m)
  • (1) Arc Sensor/Lamp Kit (Installed)
  • (1) Pre-filter/Spark Arrestor
  • (1) 19 ft (6 m) Input Power Cord

APPLICATIONS

  • Small Manufacturing Facilities
  • Welding Schools and Training Centers
  • Fabrication Shops
  • Plant Maintenance and Repair Operations
  • MIG/MAG Welding
  • TIG Welding
  • Stick Welding
  • Flux-Cored Welding

FAQ

The One-Pak includes the Prism Mobile base unit, a 10 ft flexible extraction arm (K2633-6), a MERV 14 filter (KP1653-5), an Arc Sensor/Lamp Kit, a plastic housing, a 2 ft flexible hose, and a power cord.

RotaPulse uses a compressed air connection to automatically pulse air through the filter, dislodging accumulated particulate into a collection bin to extend filter life.

The Prism Mobile operates on standard 120 Volt, single-phase, 60 Hz input power.

Yes, this model includes an Arc Sensor that detects the welding arc and automatically turns the vacuum motor on and off.

The MERV 14 filter captures up to 84% of airborne contaminants ranging from 0.3 to 1 micron in size.

While it has a spark arrestor, it is primarily designed for welding fumes. It is not suitable for heavy cutting or arc gouging operations due to the volume of sparks and debris.

This specific package (K4384-2) comes with a 10-foot (3 meter) extraction arm.

The base unit measures approximately 40 inches high, 32 inches wide, and 48 inches deep.

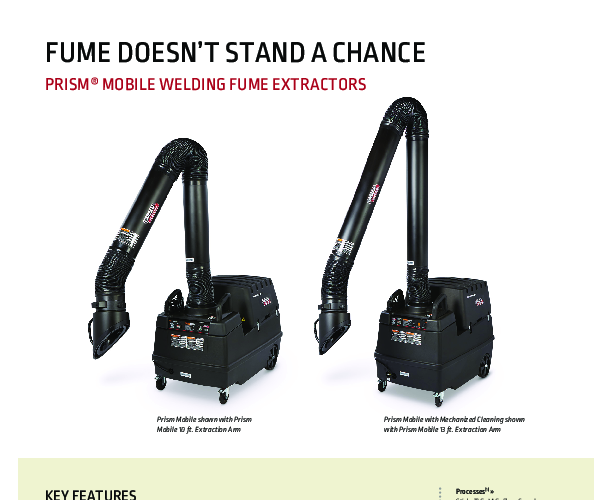

CATALOGUE & SPEC SHEETS

Spec Sheet
