K4384-6 - Lincoln Prism Mobile Fume Extractor with 10ft Arm & Arc Sensor One-Pak

Packaging: 1 Per Ea
$23,509.38/EA $12,144.51/1 Per Ea only $12,144.51/EASave 48%

Usually ships within 3-5 business days

OVERVIEW

Protect Your Shop with the Lincoln Prism Mobile

Keep your welding environment safe and compliant with the Lincoln Electric Prism® Mobile Fume Extractor (K4384-6). This all-in-one One-Pak® solution is designed to tackle welding fumes head-on, combining powerful extraction with mobility and ease of use. Ideal for schools, small manufacturing facilities, and fabrication shops, the Prism Mobile captures fumes at the source before they enter the welder's breathing zone.

Ready-to-Weld One-Pak

This package takes the guesswork out of buying fume extraction. It includes everything you need to get started: the mobile base unit, a 10-foot extraction arm for excellent reach, and a long-lasting MERV 16 filter. The addition of the Arc Sensor and Lamp Kit means the unit turns on automatically when you start welding and lights up your work area, letting you focus on laying the perfect bead without fiddling with switches.

Less Maintenance, More Welding

Nobody likes downtime. The Prism Mobile features the innovative RotaPulse® Mechanized Cleaning System. By connecting the unit to your shop's compressed air, the system automatically cleans the filter, preventing clogs and extending the time between filter changes. An internal spark arrestor adds an extra layer of safety by catching sparks before they reach the main filter. With its rugged wheels and casters, you can easily roll this 323 lb unit exactly where it's needed, making it a versatile asset for any dynamic workshop.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1 Per Ea
Process Type:MIG, TIG, Stick, Flux-Cored
Airflow:735 CFM
Filter Type:MERV 16
Input Voltage:120V
Phase:1-Phase
Arm Length:10 ft
Weight:323 lbs
Dimensions:40 in x 32 in x 48 in
Cleaning System:RotaPulse Mechanized Cleaning

INCLUDED

  • (1) Prism Mobile Base Unit
  • (1) KP1653-5 MERV 16 Filter
  • (1) K2633-6 Fume Extraction Arm 10 ft (3 m) with Arc Sensor/Lamp Kit
  • (1) Plastic Housing
  • (1) Flexible Hose 2 ft (0.6 m)
  • (1) 19 ft (6 m) Input Power Cord

APPLICATIONS

  • Small Manufacturing Facilities
  • Welding Schools and Training Centers
  • Fabrication Shops
  • Plant Maintenance and Repair Operations
  • MIG, TIG, Stick, and Flux-Cored Welding

FAQ

The Prism Mobile provides a generous airflow of 735 CFM when equipped with the 10 ft extraction arm.

The RotaPulse system uses a compressed air connection to automatically pulse-clean the filter, removing accumulated particulates and extending the filter's life.

It comes with a MERV 16 (HE) main filter (KP1653-5), which captures up to 95% of airborne contaminants from 0.3 to 1 micron.

Yes, the included Arc Sensor automatically turns the vacuum motor on when the welding arc is struck and puts it in standby when the arc is extinguished.

The One-Pak includes the Prism Mobile base unit, a 10 ft extraction arm, the Arc Sensor/Lamp Kit, a MERV 16 filter, a plastic housing, a flexible hose, and a power cord.

Yes, compressed air is required to operate the RotaPulse automatic filter cleaning system.

The unit runs on standard 120 volt, single-phase, 60 Hz input power.

Yes, an internal spark arrestor functions as a pre-filter for larger particulates and prevents sparks from reaching the main filter.

CATALOGUE & SPEC SHEETS

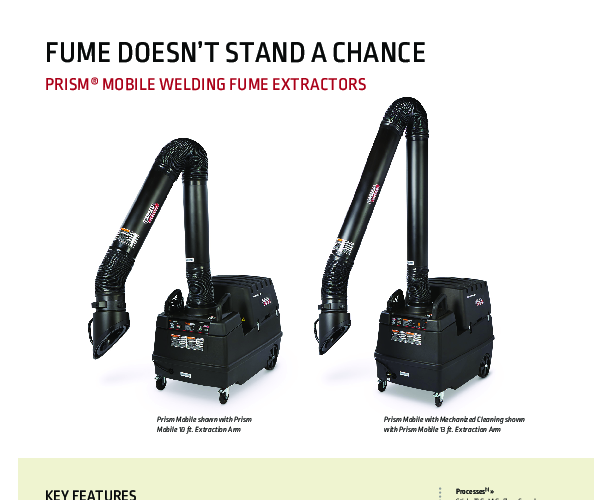

Spec Sheet
