951507 - Miller FILTAIR MWX-D Mobile Fume Extractor with 7ft Arm

Packaging: 1 PER EA
$19,560.65/EA $13,773.71/1 PER EA only $13,773.71/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Miller FILTAIR MWX-D

Keep your shop air clean and your welders safe with the Miller FILTAIR MWX-D Mobile Fume Extractor. Welding fumes are a serious hazard in any fabrication environment, and source capture is the most effective way to protect your team. The MWX-D is designed to move with you, bringing powerful industrial filtration directly to the weld joint. Whether you are working in a tight booth or moving between large assemblies, this mobile unit rolls easily on heavy-duty wheels, ensuring that clean air is always within reach.

The secret to the MWX-D's performance is the FilTek XL technology. While other filters clog up quickly, Miller's nanofiber filters stop fumes on the surface. This means you get a filter that lasts up to twice as long as standard cellulose options and captures 95% of the harmful particles generated during welding. With a MERV 15 rating, you can be confident that the air returning to your shop is cleaner and safer. This specific model features a disposable filter system, which is perfect for shops that want a simple, low-maintenance solution without the complexity of self-cleaning mechanisms.

Frustration-free operation is a hallmark of the FILTAIR series. The included 7-foot extraction arm is a game-changer for daily use. Unlike arms that sag or require constant tightening, the Miller arm stays exactly where you put it. The external joints mean the air flows smoothly inside the tube, giving you stronger suction (875 CFM) to pull smoke away before it reaches your helmet. The large hood rotates a full 360 degrees, so you can position it at the perfect angle for any weld, whether flat, vertical, or overhead.

Setting up the MWX-D is as easy as plugging it into a standard 115V wall outlet. The unit comes with a long 17-foot power cord, giving you plenty of range. A clear pressure gauge on the front lets you know exactly when it's time to swap out the filter, taking the guesswork out of maintenance. Rugged, reliable, and built by Miller, this fume extractor is an investment in the health of your workforce and the productivity of your shop.

Additional Information
Brand:Miller
Item:Fume Extractor
Input Voltage:115 V
Phase:1-Phase
Amperage:11.9 A
Airflow:875 CFM
Arm Length:7 ft
Filter Type:Disposable
MERV Rating:15
Sound Level:70 dBA
Motor HP:1 HP
Packaging Description:1 PER EA

INCLUDED

  • Miller FILTAIR MWX-D Mobile Fume Extractor Unit
  • 7-Foot Pre-Assembled Extraction Arm (8-inch Diameter)
  • FilTek XL Disposable Filter (MERV 15)
  • 17-Foot Power Cord
  • Particulate Disposal Bin

APPLICATIONS

  • Manufacturing and Production Facilities
  • Industrial Fabrication Shops
  • Maintenance and Repair Operations (MRO)
  • Welding Training Centers and Schools
  • Light to Medium Duty Welding Processes
  • Stainless Steel and Aluminum Welding

FAQ

The MWX-D is a disposable filter model, meaning the filter cartridge is replaced when full. The MWX-S is a self-cleaning model that uses a pulse-cleaning mechanism to extend filter life. The MWX-D is generally better for light-to-medium duty, while the MWX-S is for high-production environments.

The FilTek XL filter included with the MWX-D has a MERV 15 rating, which is capable of capturing up to 95% of weld fume particulates.

No, the Miller MWX-D operates on standard 115V, single-phase power, making it easy to plug into standard shop outlets.

The unit features a front-panel filter pressure gauge with color-coded zones. When the gauge needle enters the red zone, it indicates increased pressure drop, meaning the filter should be replaced.

Yes, the 7-foot arm features external adjustments that allow for easy positioning and tension control. The hood also rotates 360 degrees.

No, the filter in the MWX-D model is a disposable cartridge. It should not be washed or cleaned with compressed air manually; it must be replaced when full.

The MWX-D is rated for a nominal airflow of 875 CFM (Cubic Feet Per Minute).

Yes, the unit is mounted on a cart with large rear wheels and lockable front casters, allowing it to be easily moved around the shop.

CATALOGUE & SPEC SHEETS

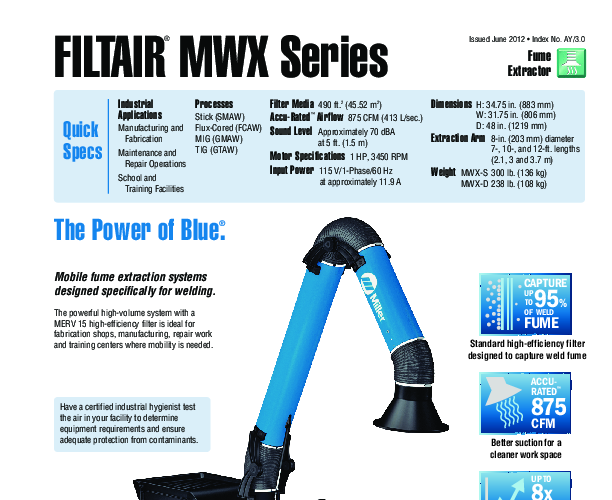

Spec Sheet
