951509 - Miller FILTAIR MWX-D Mobile Fume Extractor, 12ft Arm

Packaging: 1 PER EA
$19,957.34/EA $14,053.04/1 PER EA only $14,053.04/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Keep Your Shop Air Clean with the Miller FILTAIR MWX-D

Welding fumes are a serious hazard, but the Miller FILTAIR MWX-D makes it easy to breathe freely while you work. Designed for welders who need flexibility, this mobile fume extractor rolls right up to your workspace, bringing powerful suction exactly where you need it. With its extra-long 12-foot arm, you can cover a large work area without constantly moving the base unit, making it perfect for working on large assemblies or maneuvering around jigs and fixtures.

Powerful Suction, Superior Filtration
Don't let the compact size fool you—this machine moves 875 cubic feet of air per minute (CFM). It features Miller's advanced FilTek XL filter technology, which is specifically engineered for welding fumes. The disposable filter carries a MERV 15 rating, meaning it captures 95% of the tiny, dangerous particles found in weld smoke. The result is a cleaner breathing zone and a healthier shop environment for you and your team.

Built for the Real World
Miller knows that shop floors aren't always smooth and tidy. That's why the MWX-D sits on heavy-duty wheels that can roll over cords and debris. The extraction arm is pre-assembled and easy to position; it stays where you put it, so you can focus on your bead, not on fighting with your equipment. The large hood design means you don't have to be perfectly precise with placement to capture the smoke—it pulls fumes in from a distance, saving you time on adjustments. When the filter eventually fills up, the easy-to-read gauge on the front lets you know it's time for a quick swap, keeping your downtime to a minimum.

Additional Information
Brand:Miller
Item:Fume Extractor
Packaging Description:1 Per Ea
Process Type:Welding Fume Extraction
Input Voltage:115 V
Airflow:875 CFM
Filter Type:Disposable FilTek XL
Filter Rating:MERV 15
Arm Length:12 ft
Arm Diameter:8 in

INCLUDED

  • Mobile Fume Extractor Unit (115 V)
  • 12 ft. (3.7 m) Extraction Arm (8-inch diameter)
  • FilTek XL Filter (Disposable)
  • 20 ft. (6 m) Power Cord

APPLICATIONS

  • Industrial Manufacturing
  • Fabrication Shops
  • Maintenance and Repair Operations (MRO)
  • Welding Training Centers and Schools
  • Light to Medium Duty Welding

FAQ

The Miller FILTAIR MWX-D delivers a nominal airflow of 875 CFM (cubic feet per minute), providing strong suction for effective source capture.

No, the MWX-D (Disposable) model uses a disposable filter cartridge. The MWX-S (Self-Cleaning) model is required for the self-cleaning feature.

The FilTek XL filter included with this unit has a MERV 15 rating, capable of filtering up to 95% of weld fume particulates.

The unit operates on standard 115 VAC, 1-Phase, 60 Hz power.

This package (951509) comes with a 12-foot (3.7 m) extraction arm.

There is a color-coded filter pressure gauge on the front panel that indicates when the pressure drop has increased, signaling that the filter needs replacement.

Yes, the arm features external adjustments for smooth operation and holds its position reliably. The hood also rotates 360 degrees for easy positioning.

Yes, the MERV 15 rating is highly effective at capturing the fine particulates generated during stainless steel welding.

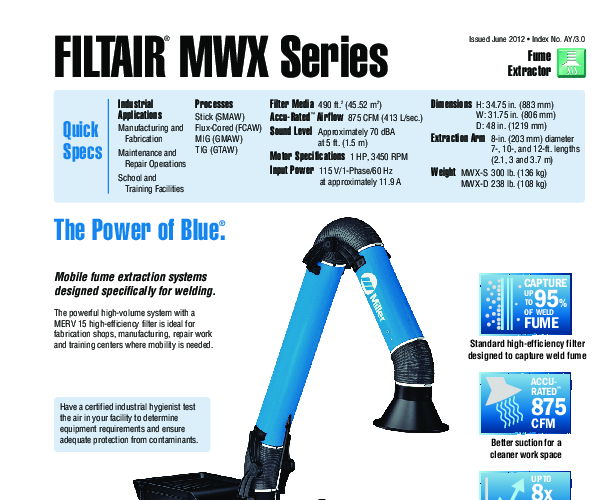

CATALOGUE & SPEC SHEETS

Spec Sheet
