951510 - Miller FILTAIR MWX-S Self-Cleaning Mobile Fume Extractor with 7ft Arm

Packaging: 1 PER EA
$28,561.38/EA $20,111.61/1 PER EA only $20,111.61/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Miller FILTAIR MWX-S

Welding is a tough job, but breathing in the fumes shouldn't be part of the daily grind. The Miller FILTAIR MWX-S (951510) is your mobile defense against weld smoke, designed to keep the air in your workspace clean and safe. Whether you are working on mild steel, stainless, or aluminum, this powerful fume extractor moves right where you need it, sucking up smoke before it ever reaches your helmet. With a 7-foot arm that actually stays where you put it, you can focus on laying the perfect bead instead of fighting with your equipment.

What sets the MWX-S apart is that it cleans itself. We all know that once a filter gets clogged, suction drops, and the machine becomes useless until you swap the filter out. The MWX-S solves this with a self-cleaning button. When the gauge tells you the filter is getting dirty, you just hook up a shop air line, hit the button, and a pulse of air knocks the dust off the filter into a tray at the bottom. It takes about a minute, and you are back to full suction power. This means you aren't stopping work constantly to change expensive filters, and you aren't working with a machine that's barely pulling air.

The unit is built on a rugged cart with big back wheels that roll easily over cables and uneven shop floors. The front casters lock so the machine doesn't wander off while you're working. The extraction arm is designed with the mechanics on the outside, which means the inside of the tube is smooth—giving you better airflow and less noise. The hood is huge and spins 360 degrees, so you can position it perfectly without having to wrestle the whole machine around. It runs on standard 115V power, so you can plug it in just about anywhere in the shop.

Miller's FilTek XL filters are rated MERV 15, which is technical speak for "it catches the really small, dangerous stuff." It captures up to 95% of weld fume particles, keeping your lungs cleaner and your shop haze-free. If you are doing heavy fabrication or production welding, the MWX-S is the partner you need to stay healthy and productive. Stop breathing smoke and start using the extractor that works as hard as you do.

Additional Information
Brand:Miller
Item:Fume Extractor
Packaging Description:1-of-each
Airflow:875 CFM
Filter Rating:MERV 15
Arm Length:7 ft
Input Voltage:115 V
Weight:136 kg
Filter Technology:FilTek XL, Self-Cleaning
Sound Level:70 dBA
Motor:1 HP

INCLUDED

  • Miller FILTAIR MWX-S Mobile Fume Extractor (115 V)
  • 7 ft. Pre-assembled Extraction Arm (SA-807)
  • FilTek XL Filter (Self-Cleaning)
  • 17 ft. Power Cord
  • Particulate Disposal Drawer

APPLICATIONS

  • Manufacturing and Fabrication: Ideal for production environments with high arc-on time where mobility is required between workstations.
  • Maintenance and Repair Operations (MRO): perfect for repair shops where welding occurs in various locations and fixed ventilation is not feasible.
  • Training Centers and Schools: Provides essential safety for students learning to weld, ensuring a clean learning environment.
  • Heavy Fume Processes: Suitable for Stick, Flux-Cored, and MIG welding processes that generate significant particulate.
  • Stainless Steel Welding: High-efficiency filtration makes it suitable for capturing hexavalent chromium fumes (check local regulations).

FAQ

The MWX-S (Self-Cleaning) features a built-in cleaning mechanism that uses compressed air to clean the filter, extending its life. The MWX-D (Disposable) uses disposable filters that must be replaced when full. The MWX-S is better suited for heavy use.

The fume extraction itself runs on electricity (115V). However, a dry compressed air connection is required to operate the self-cleaning pulse cycle mechanism.

The unit comes with a FilTek XL filter which has a MERV 15 rating, capable of capturing up to 95% of weld fume particulates.

This specific package (951510) comes with a pre-assembled 7-foot extraction arm. 10-foot and 12-foot versions are also available.

There is an easy-to-read color-coded pressure gauge on the front panel. When the pressure drop increases into the designated zone, it indicates the filter needs to be cleaned.

While it can capture some dust, the system is specifically designed for welding fumes. Heavy grinding dust may fill the bin or clog the filter faster than weld fumes. Dedicated grinding tables are often better for heavy grinding.

The MWX-S requires 115 Volts, 1-Phase, 60 Hz power and draws approximately 11.9 Amps.

No, the FilTek XL filter is not designed to be washed with water. It is designed to be cleaned using the machine's internal pulse-cleaning cycle.

CATALOGUE & SPEC SHEETS

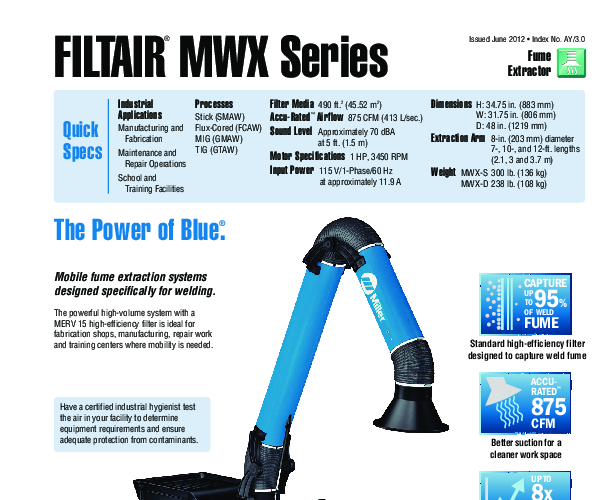

Spec Sheet
