951513 - Miller FILTAIR SWX-D Wall-Mounted Fume Extractor 7ft Arm

Packaging: 1 PER EA
$20,734.81/EA $14,600.50/1 PER EA only $14,600.50/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with Miller FILTAIR SWX-D

Welding safety starts with clean air, and the Miller FILTAIR® SWX-D Fume Extractor is your first line of defense against hazardous welding fumes. This complete package (951513) includes everything you need to set up a powerful, wall-mounted extraction station that keeps your workspace safe and compliant. Featuring a 7-foot extraction arm, this system is perfect for fixed welding booths where floor space is at a premium. The arm is easy to maneuver and stays in place, letting you focus on your weld rather than fighting with your equipment.

What sets the FILTAIR SWX-D apart is its incredible suction power and advanced filtration. With 875 CFM at the hood, it pulls smoke away from your breathing zone faster than competing models. The secret lies in the FilTek® XL filter, which is rated MERV 15—the highest rating for welding fume filtration. It captures 95% of dangerous particulates, including hexavalent chromium and manganese, ensuring that the air returned to the shop is clean. The disposable filter design makes maintenance a breeze; simply replace the cartridge when the gauge indicates it's full, with no messy cleaning required.

Ideal for schools, repair shops, and manufacturing plants, the SWX-D is built to last. The external arm adjustments mean there are no internal components to clog up or restrict airflow, giving you consistent performance day in and day out. Whether you are TIG welding stainless steel or burning Stick electrodes, the Miller FILTAIR SWX-D provides the protection you need to work healthy and stay productive. Invest in your long-term health with a system designed specifically for the unique challenges of welding.

Additional Information
Brand:Miller
Item:Fume Extractor
Packaging Description:1-per-ea
Input Voltage:115 V
Nominal Airflow:875 CFM
Filter Type:Disposable, FilTek XL
Arm Length:7 ft
Arm Diameter:8 in
Motor Horsepower:1 HP
Sound Level:74 dBA
Phase:1-Phase

INCLUDED

  • 8 in. diameter x 7 ft. standard fume extraction arm
  • Flexible duct (7 x 37 in.)
  • Mounting bracket for blower/arm
  • 115 V on/off control box
  • 115 V blower
  • FilTek XL Filter
  • SWX disposable filter cabinet

APPLICATIONS

  • MIG (GMAW)
  • TIG (GTAW)
  • Stick (SMAW)
  • Flux Cored (FCAW)
  • Manufacturing
  • Fabrication Shops
  • Vocational Schools

FAQ

The unit includes a FilTek XL filter with a MERV 15 rating, capable of filtering up to 95% of weld fume particulates.

The system generates 1,200 CFM at the fan and provides an Accu-Rated minimum of 875 CFM at the extraction hood.

No, the Miller FILTAIR SWX-D 951513 operates on standard 115V, 1-phase, 60Hz power.

The unit features a filter pressure gauge on the front panel that uses a color-coded system to indicate when the pressure drop is high and the filter needs replacement.

No, the SWX-D is designed to be mounted to a wall or column for stationary welding applications.

The SWX-D (Disposable) model is best suited for light-duty or intermittent welding. For high-volume environments, a self-cleaning model may be more appropriate.

The package includes the SWX-D cabinet, blower, 7-foot standard arm, mounting bracket, flexible duct, control box, and one FilTek XL filter.

CATALOGUE & SPEC SHEETS

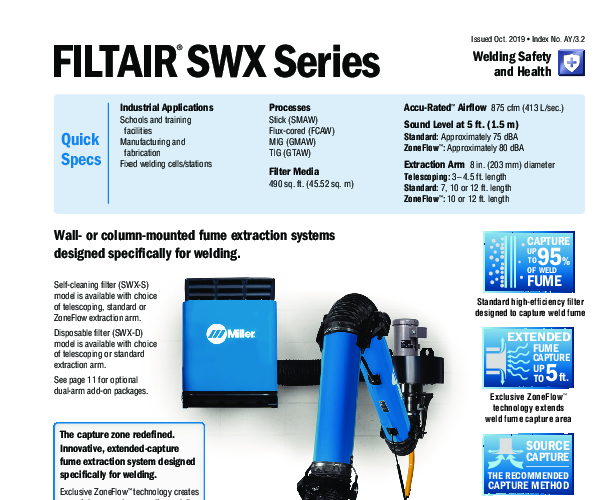

Spec Sheet
