951620 - Miller Filtair SWX-S Self-Cleaning Fume Extractor with 3-4.5 ft Telescoping Arm

Packaging: 1 PER EA
$29,340.63/EA $20,660.32/1 PER EA only $20,660.32/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with Miller Filtair SWX-S

Welding fumes contain a hazardous cocktail of metal oxides and particulates that can lead to serious long-term health issues, including metal fume fever and respiratory diseases. The Miller Filtair SWX-S (951620) offers a robust defense against these airborne contaminants, providing professional-grade fume extraction in a package designed for ease of use and longevity. This system is perfect for fabrication shops, manufacturing plants, and training centers where welder safety is a top priority.

Self-Cleaning Convenience
One of the biggest challenges with fume extractors is filter maintenance. The SWX-S solves this with its innovative self-cleaning filter cabinet. When the filter gauge indicates it's time to clean, simply press a button on the control panel to initiate a one-minute cleaning cycle. The system uses compressed air to blast dust off the filter and into a collection bin, which you can easily slide out and empty. This means you spend less time changing filters and more time welding.

Compact and Powerful
Space is often at a premium in welding booths. This package comes with a telescoping arm that adjusts from 3 to 4.5 feet, making it the perfect solution for smaller workspaces where a long 10-foot arm would be cumbersome. Despite its compact size, the system delivers class-leading suction power (875 CFM at the hood), ensuring that smoke is pulled away from your breathing zone effectively. The MERV 15 rated FilTek XL filter captures even the smallest submicron particles, keeping your shop air clean and compliant with safety standards.

Additional Information
Brand:Miller
Item:Fume Extractor
Packaging Description:1-per-each
Input Voltage:115 V
Phase:1-Phase
Amperage:12 A
Airflow:875 CFM (at hood), 1200 CFM (fan)
Filter Rating:MERV 15
Filter Type:FilTek XL Self-Cleaning
Arm Length:3 - 4.5 ft
Arm Type:Telescoping
Sound Level:Approx 75 dBA
Motor:1 HP, 3450 RPM

INCLUDED

  • SWX-S Self-Cleaning Filter Cabinet
  • FilTek XL Filter
  • 8 in. diameter Telescoping Arm (3-4.5 ft.)
  • 115 V Blower
  • 115 V On/Off Control Box
  • 115 V Cleaning Control Box
  • Mounting Bracket for Blower/Arm
  • Flexible Duct (7 x 37 in.)

APPLICATIONS

  • Stick (SMAW) Welding
  • Flux-Cored (FCAW) Welding
  • MIG (GMAW) Welding
  • TIG (GTAW) Welding
  • Manufacturing and Fabrication
  • Maintenance and Repair Operations
  • Schools and Training Facilities

FAQ

The SWX-S uses a reverse pulse of compressed air to dislodge particulate from the filter surface, depositing it into a collection drawer.

The arm is a telescoping model that extends from 3 feet to 4.5 feet.

Yes, a compressed air supply is required to operate the self-cleaning filter mechanism.

The FilTek XL filter has a MERV 15 rating, capturing up to 95% of weld fume particulate.

The system runs on 115V, 1-phase, 60 Hz power and draws approximately 12 Amps.

Yes, the system is designed for wall or column mounting.

The self-cleaning feature extends filter life up to 2 times longer than standard cellulose filters, but replacement frequency depends on usage intensity.

The fan generates 1,200 CFM, with an Accu-Rated extraction of 875 CFM at the hood.

CATALOGUE & SPEC SHEETS

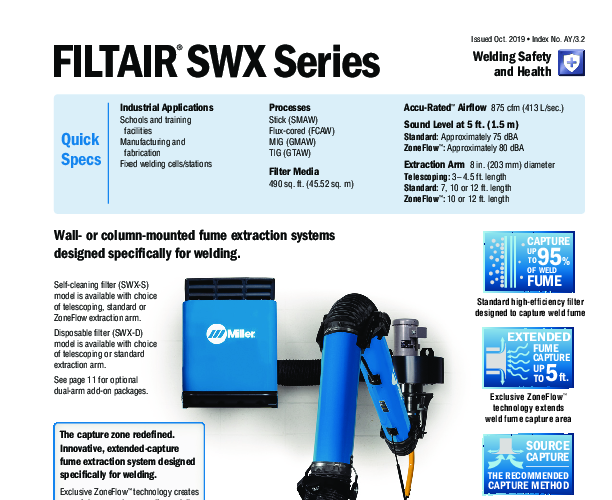

Spec Sheet
