K4261-5 - Lincoln Statiflex 200-M Wall-Mounted Fume Extractor with Telescopic Arm

Packaging: 1 Per Ea
$12,691.40/EA $9,065.29/1 Per Ea only $9,065.29/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Statiflex 200-M Wall-Mount Extractor

Clear the air in your welding shop without sacrificing valuable floor space. The Lincoln Electric Statiflex 200-M One-Pak is the ultimate wall-mounted solution for welders who need reliable fume extraction that stays out of the way. Designed for job shops, welding schools, and maintenance departments, this system mounts securely to the wall or column, keeping your walkways clear and your workspace organized.

Flexible Reach for Any Job
What sets this unit apart is the LTA 2.0-CW telescopic arm. Unlike fixed-length arms, this smart design can extend from 5 feet out to over 8 feet, giving you the flexibility to reach your workpiece whether it's on a bench or a fixture. When you're done, or if you need to bring in a crane, the arm telescopes back in, staying compact and safe. The counterweight system ensures the arm moves smoothly and stays exactly where you position it, so you can focus on your bead, not on fighting your equipment.

Powerful Filtration, Less Maintenance
Nobody likes changing filters constantly. The Statiflex 200-M is built with a massive 538 square foot filter—that's a huge surface area that traps more smoke and dust before clogging. This means you get consistent suction (735 CFM) for longer periods, saving you money on replacement filters and keeping your shop air cleaner. It even includes a spark arrestor to catch those hot sparks before they reach the filter, adding an extra layer of safety to your daily operations.

This One-Pak comes with everything you need to get up and running: the fan, the filter unit, the telescopic arm, and the starter switch. It's a professional-grade solution for a safer, cleaner, and more productive welding environment.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-per-ea
System Type:Stationary Wall-Mounted
Arm Type:Telescopic (LTA 2.0-CW)
Arm Reach:5 - 8.2 ft
Airflow:735 CFM
Filter Surface Area:538 ft² (50 m²)
Motor Power:1 HP
Filter Type:Cellulose, Disposable

INCLUDED

  • Statiflex 200-M Base Unit (K1654-4)
  • LTA 2.0-CW Telescopic Arm (5-8.2 ft) with Counter Weight (K1655-14)
  • SF 2400 Fan (1 HP) (K1656-9)
  • Starter Overload Switch (K1494-2)
  • Mounting Bracket
  • Spark Arrestor

APPLICATIONS

  • General Fabrication
  • Maintenance and Repair Operations
  • Welding Schools and Training Centers
  • Automotive Repair
  • Light to Medium Duty Welding
  • Workshops with Limited Floor Space

FAQ

The One-Pak includes the Statiflex 200-M base unit, the LTA 2.0-CW telescopic arm, the SF 2400 (1 HP) fan, a starter overload switch, and mounting hardware.

The LTA 2.0-CW arm is telescopic, meaning it has an adjustable length ranging from 5 feet (1.5 meters) to 8.2 feet (2.5 meters).

No, the Statiflex 200-M is a wall-mounted unit designed to save floor space, making it ideal for smaller shops or crowded bays.

The system is rated for an airflow of approximately 735 CFM, which is sufficient for effective capture of welding fumes in light-to-medium duty applications.

The Statiflex 200-M typically uses a disposable cellulose filter cartridge. It is designed with a large surface area to extend service life before replacement is needed.

Yes, the unit features an integrated spark arrestor that also functions as a pre-filter for larger particulates.

The filter has a surface area of 538 ft² (50 m²), which helps in maintaining lower operational costs and longer filter life.

While it has a spark arrestor, it is primarily designed for welding fumes. Heavy grinding dust may clog the filter more rapidly or pose a fire risk if not properly managed.

CATALOGUE & SPEC SHEETS

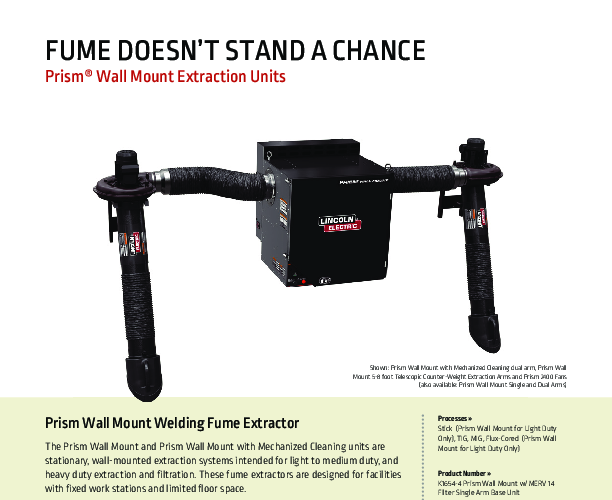

Spec Sheet
