K652-1 - Lincoln X-Tractor 1GC Portable Fume Gun Extractor 120V

Packaging: 1 Per Ea
$7,769.32/EA $5,549.51/1 Per Ea only $5,549.51/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln X-Tractor 1GC

Welding fumes are a serious hazard in any shop, but big, stationary ventilation systems aren't always practical for every job. Enter the Lincoln Electric X-Tractor 1GC, your portable solution for keeping the air clean and your lungs protected. Designed specifically for light-duty applications and small shops, this "fume gun" style extractor goes right to the source, sucking up smoke before it ever reaches your breathing zone. Whether you are working on automotive repairs, general fabrication, or maintenance projects, the X-Tractor 1GC ensures that fumes don't stand a chance against its high-vacuum power.

Smart Features for the Busy Welder

Lincoln Electric knows that efficiency is key. That's why the X-Tractor 1GC is packed with features that make your life easier. The Automatic Start/Stop sensor is a game-changer; simply hook the sensor over your ground or power cable, and the machine turns on the moment you strike an arc. When you stop welding, it shuts off automatically, saving you the hassle of walking back and forth to flip a switch. Plus, maintenance is a breeze. You don't need to take the machine apart to clean the filter. The built-in rotary air jet system lets you blast the filter clean with your shop air, keeping suction strong and extending the life of your cartridge.

Portable, Quiet, and Ready to Work

Weighing in at just under 40 pounds, this unit is built to move. Grab the handle and take it wherever the work is—up a ladder, across the shop, or into a confined space. Despite its powerful suction, it runs quietly at 74 decibels, so you can still hear what's going on around you. The kit comes ready to run out of the box with a 16-foot hose, power cord, and adapters to fit most standard fume extraction guns. Don't let smoke cloud your vision or compromise your health; upgrade your shop safety with the reliable performance of the Lincoln X-Tractor 1GC.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1 Per Ea
Input Voltage:120 V
Input Phase:1-Phase
Input Hertz:50/60 Hz
Input Current:15 A
Noise Level:74 dBA
Weight:37 lb
Dimensions:13.4 in H x 26.8 in W x 15.8 in D
Airflow:55-115 CFM
Hose Length:16 ft
Warranty:1 Year

INCLUDED

  • Base Unit (K652-1)
  • Filter cartridge (KP2069-1)
  • Flexible Hose – 16 ft. (5.0m) long x 1-3/4 in. (45mm) I.D.
  • Two Hose-to-Tube Adapters: 1-3/4 in. (45 mm) to 2 in. (50 mm) and 1-3/4 in. (45 mm) to 1-1/2 in. (38 mm)
  • Two spare sets of motor brushes
  • 12 ft. (3.6m) power cord

APPLICATIONS

  • Light Duty Welding
  • Maintenance and Repair Operations
  • Automotive Fabrication
  • General Fabrication Shops
  • Training and Educational Facilities
  • Intermittent Welding Stations

FAQ

The unit operates on standard 120V, single-phase, 50/60 Hz power and draws approximately 15 Amps.

Yes, it includes one KP2069-1 filter cartridge pre-installed.

A sensor hook is placed over the welding lead or ground cable. It detects the magnetic field generated by welding current to turn the unit on when an arc is struck and off shortly after welding stops.

The unit operates at approximately 74 dBA at a distance of 3.3 feet (1 meter), which is considered low noise for this type of equipment.

The unit comes with a 16 ft hose, but it supports a maximum extraction distance of up to 33 ft (10 m) if extended.

This unit is a high-vacuum system designed for use with Fume Extraction Guns (which have built-in suction ports) or specific suction nozzles. It is not designed for large hoods.

The unit features a rotary air jet system. You connect compressed air to the unit, and it spins an internal nozzle to blast dust off the filter without needing to remove it.

Yes, it weighs approximately 37 lbs and has a compact design, making it easy to carry or move around the shop.

CATALOGUE & SPEC SHEETS

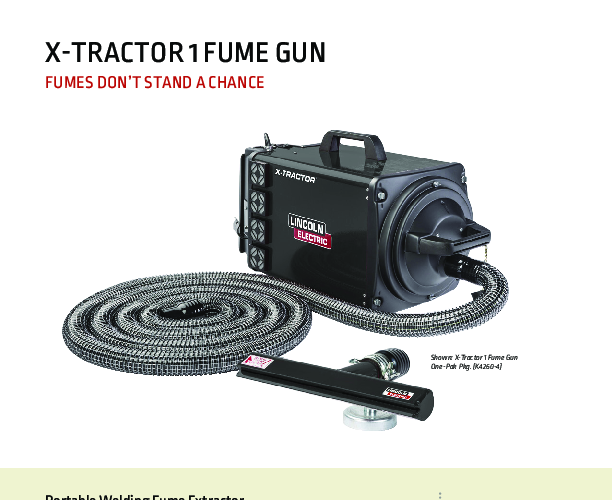

Spec Sheet
