K4260-4 - Lincoln X-Tractor 1GC Portable Fume Extractor One-Pak with SHM-300 Nozzle

Packaging: 1 Per Ea
$8,302.20/EA $5,930.14/1 Per Ea only $5,930.14/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with Portable Fume Control

Protecting yourself from welding fumes shouldn't mean lugging around heavy machinery or dealing with complicated setups. The Lincoln Electric X-Tractor 1GC One-Pak is the ultimate portable companion for welders who need reliable fume extraction in a compact, easy-to-use package. Whether you are working in a small garage, a maintenance shop, or moving between job sites, this 120-volt system plugs right into standard wall outlets and goes to work immediately. This package is a "One-Pak," meaning you get everything you need in a single box: the powerful vacuum unit, a long 16-foot hose, and the versatile SHM-300 aluminum suction nozzle.

One of the standout features for daily users is the automatic start/stop technology. You don't have to walk back to the machine to turn it on every time you strike an arc. Simply hang the sensor hook on your welding cable, and the X-Tractor knows when you are welding. It turns on instantly to suck up the smoke and turns off automatically when you stop, keeping your shop quiet and saving power. The included nozzle comes with a magnetic base, so you can stick it right onto your workpiece, position it exactly where the smoke is rising, and focus on laying a perfect bead without worrying about inhaling harmful particulates.

Maintenance is just as simple as operation. Welding filters can get clogged, killing your suction, but the X-Tractor 1GC has a clever solution. It features an internal cleaning system that uses compressed air to blow dust off the filter from the inside out, restoring suction power without you having to take the machine apart or get your hands dirty. Designed for light-duty processes like MIG, TIG, and Stick welding, this unit is quiet, lightweight (under 40 lbs), and built with Lincoln Electric's legendary durability. It is the smart, professional choice for keeping your air clean and your lungs healthy.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-of-each
Input Voltage:120V
Input Phase:1-Phase
Input Hertz:50/60 Hz
Input Current:15A
Airflow:55-115 CFM
Noise Level:74 dBA
Hose Length:16 ft (5 m)
Weight:37 lbs (17 kg)
Filter Type:Polyester

INCLUDED

  • X-Tractor 1GC Base Unit (K652-1)
  • SHM-300 Aluminum Suction Nozzle with Magnetic Mounting Stand (K639-1)
  • 16 ft. (5 m) Flexible Hose (1-3/4 in. / 45 mm diameter)
  • Hose Adapter (S20591-8)
  • 12 ft. (3.6 m) Power Cord
  • Filter Cartridge
  • 2 Spare Sets of Carbon Brushes

APPLICATIONS

  • Light Duty Fabrication
  • Maintenance and Repair Operations (MRO)
  • Automotive Repair
  • Educational Welding Labs
  • Mobile Welding Services
  • Stick (SMAW) Welding
  • TIG (GTAW) Welding
  • MIG (GMAW) Welding
  • Flux-Cored (FCAW) Welding

FAQ

The One-Pak includes the X-Tractor 1GC base unit (K652-1), the SHM-300 Aluminum Suction Nozzle with magnetic stand (K639-1), a 16-foot flexible hose (1-3/4 inch diameter), a hose adapter, a 12-foot power cord, and the filter cartridge.

No, the X-Tractor 1GC operates on standard 120V, single-phase power (50/60 Hz) and draws approximately 15 amps.

The unit comes with a sensor hook that you lay across your welding lead or ground cable. It detects the current when you strike an arc and automatically turns the extractor on. It turns off about 10 seconds after welding stops.

The unit features a manual rotary air jet cleaning system. You connect a compressed air line to the unit, and the internal jets blow dust off the filter surface without requiring you to remove the filter.

The unit is rated for a maximum extraction distance of up to 33 feet (10 meters). The included hose is 16 feet long.

The X-Tractor 1GC is designed for light-duty applications, maintenance, and repair. For continuous, heavy-duty manufacturing, a larger, stationary system would be more appropriate.

It operates at approximately 74 dBA at 3.3 feet (1 meter), which is relatively quiet for a high-vacuum extraction system.

While it can capture some particulate, it is primarily designed for welding fume filtration. Dedicated dust collectors are better suited for heavy grinding applications due to the volume and nature of grinding debris.

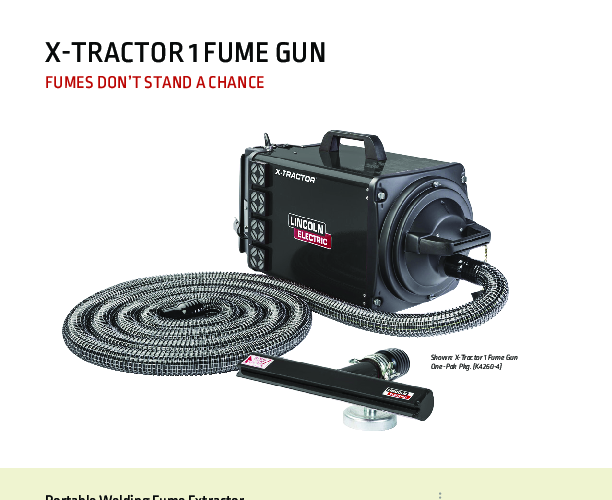

CATALOGUE & SPEC SHEETS

Spec Sheet
