K652-2 - Lincoln X-Tractor 1GC Portable Fume Extractor 230V

Packaging: 1 Per Ea
$7,353.22/EA $5,252.30/1 Per Ea only $5,252.30/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln X-Tractor 1GC

Fumes don't stand a chance against the Lincoln Electric X-Tractor 1GC. If you run a small shop, handle maintenance repairs, or perform light-duty fabrication, you know that air quality is paramount for safety and productivity. The K652-2 is designed specifically to tackle welding fumes at the source, keeping your breathing zone clear and your shop environment compliant. This portable powerhouse is lightweight enough to carry to any job in the facility, weighing in at just 37 lbs, yet it packs the suction power needed to effectively remove smoke and particulate matter before it spreads.

One of the most user-friendly features of the X-Tractor 1GC is its "set it and forget it" operation. Thanks to the built-in Automatic Start/Stop Sensor, you don't have to walk back and forth to turn the machine on every time you strike an arc. Simply lay the sensor hook over your welding cable, and the unit detects when you are welding, turning on instantly and shutting off automatically after you stop. This not only saves you time and hassle but also reduces noise in the shop when you aren't actively welding. Speaking of noise, this unit is engineered for quiet operation, running at just 74 dBA, so you can communicate with coworkers without shouting.

Maintenance is often a headache with fume extractors, but Lincoln Electric has solved that with their innovative filter cleaning system. Instead of pulling out a dirty, dusty filter by hand, you can clean the polyester cartridge right inside the machine using your shop's compressed air. The rotary air jets spin and blast dust off the filter, dropping it into a containment area for easy disposal. The package comes ready to work right out of the box, including a 16-foot flexible hose, adapters, and a power cord. Whether you are working on stainless steel, mild steel, or aluminum, the X-Tractor 1GC is your reliable partner for a cleaner, safer, and more professional welding workspace.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1 Per Ea
Input Voltage:230V
Input Phase:1-Phase
Input Frequency:50/60 Hz
Input Current:9A
Airflow:55-115 CFM
Sound Level:74 dBA
Hose Length:16 ft (5 m)
Weight:16.8 kg
Filter Type:Polyester Cartridge
Dimensions:13.4 in x 26.8 in x 15.8 in

INCLUDED

  • X-Tractor 1GC Base Unit (K652-1)
  • Filter Cartridge (KP2069-1)
  • 16 ft. (5 m) Flexible Hose, 1-3/4 in. (45 mm) Diameter
  • Adapter for 1-3/4 in. (45 mm) Hose
  • Two Spare Sets of Carbon Brushes for Motors
  • 12 ft. (3.6 m) Power Cord
  • User Manual and Documentation

APPLICATIONS

  • Light Duty Welding Applications
  • Maintenance and Repair Operations (MRO)
  • General Fabrication Shops
  • Automotive Repair
  • Educational and Training Facilities
  • Intermittent Welding Stations
  • Construction Site Welding

FAQ

The Lincoln X-Tractor 1GC K652-2 requires 230V single-phase input power at 50 or 60 Hz.

Yes, the unit comes complete with a polyester filter cartridge (KP2069-1) pre-installed.

The unit has a sensor hook that lays over your welding lead or ground cable. It detects the magnetic field generated by welding current to turn the extractor on and off automatically.

It operates at a low noise level of approximately 74 dBA at a distance of 3.3 feet (1 meter).

The product includes a 16-foot (5 meter) flexible hose with a 1-3/4 inch (45 mm) diameter.

The unit features a rotary air jet system. You connect compressed air to the unit, and it cleans the filter from the inside out without requiring removal.

No, the X-Tractor 1GC is designed for light-duty applications, maintenance, and repair operations. For heavy fabrication, a larger stationary unit may be required.

The base unit weighs approximately 37 lbs (16.8 kg), making it easy to transport around the shop.

CATALOGUE & SPEC SHEETS

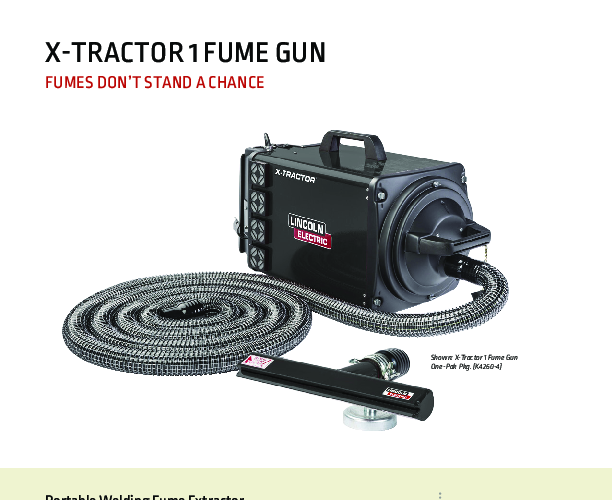

Spec Sheet
