907483 - Miller AlumaPower 450 MPa Aluminum MIG Welder Power Source

Packaging: 1 PER EA
$13,311.96/ea $12,020.00/1 PER EA only $12,020.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Get the "Stacked Dimes" Look with MIG Simplicity

If you are welding aluminum and need the speed of MIG but the aesthetics of TIG, the Miller AlumaPower 450 MPa is the machine you’ve been waiting for. This power source is loaded with features designed to make you look like a pro on every pass. The standout feature is Miller's exclusive Profile Pulse™, which automatically modulates the wire feed speed and power output to create a distinct ripple pattern in the weld bead. This gives you that classic "stacked dimes" appearance associated with high-quality TIG welding, but with the travel speed and productivity of a MIG gun. You can even adjust the frequency of the pulse to tighten or widen the ripple spacing to match your personal preference or job requirements.

Control is everything when working with soft aluminum wires, and the AlumaPower 450 MPa delivers it in spades. The SharpArc® technology allows you to fine-tune the arc cone and puddle fluidity. Whether you need a stiff, driving arc for deep penetration in a corner joint or a wider, softer arc for outside corners and cosmetic beads, a simple dial adjustment gets you there. The machine is designed to work seamlessly with Miller’s push-pull guns, ensuring that wire feeding is smooth and bird-nesting is virtually eliminated, even with soft 4000-series wires.

Beyond performance, this machine is built for the long haul. The industrial-grade case is tough enough for shipyards and trailer manufacturing floors, yet the unit remains relatively lightweight at 122 lbs for a machine of this class. The user interface is straightforward, featuring large dual digital meters that are easy to read even from a distance. With the ability to store and recall trigger schedules, you can switch between two different sets of parameters on the fly—perfect for jobs that require tacking and then welding, or moving between different material thicknesses without walking back to the power source.

Additional Information
Brand:Miller
Amperage:450
Voltage:230/460 V
Weld Process:MIG (GMAW)
Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), Synergic Pulsed MIG
Input Voltage / Phase:230/460 V, 3-Phase
Amperage Range:15 - 600 A
Rated Output:450 A at 100% Duty Cycle
Net Weight:55.3 kg
Dimensions:17.25 in (H) x 14.5 in (W) x 27.125 in (D)
Warranty:3 Years True Blue Warranty
Compatible Wire Feeder:XR-AlumaFeed
Packaging Description:1 PER EA
Duty Cycle:N/A

INCLUDED

  • Miller AlumaPower 450 MPa Power Source
  • Owner's Manual
  • (Note: Wire feeder and gun sold separately)

APPLICATIONS

  • Aluminum Ship and Boat Building
  • Aerospace Components
  • Railcar Manufacturing
  • Commercial Truck and Trailer Fabrication
  • Emergency Vehicle Manufacturing
  • General Aluminum Fabrication
  • Sign Manufacturing

FAQ

Profile Pulse™ allows the operator to achieve a TIG-like weld bead appearance ('stacked dimes') using the MIG process, combining high productivity with superior aesthetics.

No, the Miller AlumaPower 450 MPa (907483) is the power source only. It requires a compatible wire feeder (such as the XR-AlumaFeed) and a push-pull gun for operation.

This model requires 3-Phase power and can operate on 230V or 460V input.

While the AlumaPower 450 MPa is specifically optimized with programs for aluminum, it is a DC MIG power source and can weld steel if equipped with the correct wire, gas, and drive rolls, though its advanced features target aluminum applications.

Synergic control links wire feed speed to pulse parameters. When you adjust the wire speed, the machine automatically adjusts the power output to maintain a stable arc, simplifying setup and reducing burn-through.

It directs cooling air through a dedicated tunnel, preventing abrasive dust and metal particles from being blown over the sensitive electronic circuit boards and components.

The machine is rated at 450 Amps at 38 Volts with a 100% Duty Cycle, making it suitable for continuous industrial use.

SharpArc® controls the arc cone shape and puddle fluidity in Pulsed MIG mode, allowing the welder to tailor the bead profile from flat and fluid to stiff and narrow.

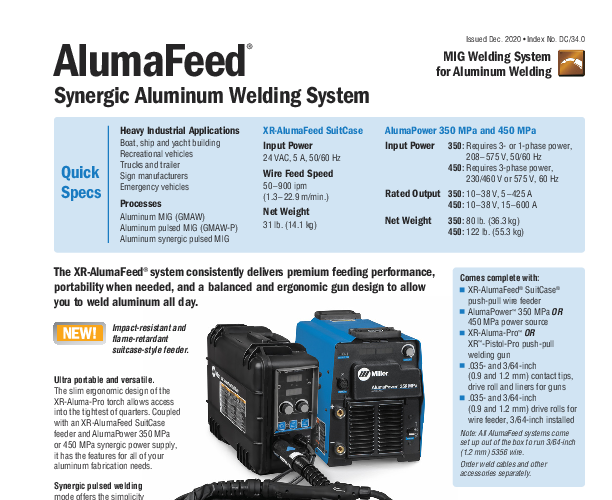

CATALOGUE & SPEC SHEETS

Spec Sheet
