0446200881 - ESAB Aristo 500ix Industrial Multi-Process Welder 460-575V

Packaging: pack of 1
$9,309.61/EA $8,881.11/pack of 1 only $8,881.11/EASave 5%

Usually ships within 3-5 business days

OVERVIEW

Rugged, Reliable, and Ready for Anything

When the job calls for serious power and you need to move fast, the ESAB Aristo 500ix is the machine you want in your corner. This isn't just another shop welder; it's a beast built for the field. With 500 amps of output packed into a portable inverter frame, you get the muscle of a heavy transformer machine without the back-breaking weight. Grab it by the ergonomic handles or hook it to a crane—this welder goes where the work is.

The Aristo 500ix is a true multi-process workhorse. Need to lay down heavy MIG welds? It handles it with ease. Switching to Stick for some root passes or repair work? No problem. It even handles Carbon Arc Gouging when you need to blow out defects or prep joints. The arc is smooth, stable, and forgiving, thanks to ESAB's top-tier inverter technology. Plus, it's built tough. The IP23 rating means you don't have to panic if the weather turns; it shrugs off rain and dust so you can keep burning wire.

Pair this power source with a Robust Feed unit, and you've got an unstoppable welding rig. The interface is straightforward, letting you dial in your settings quickly so you spend more time welding and less time fiddling with knobs. Whether you are working on structural steel, fixing heavy equipment, or fabricating out in the yard, the Aristo 500ix gives you the confidence that your machine can handle whatever you throw at it. It’s the reliable partner every professional welder deserves.

Additional Information
Brand:ESAB
Amperage:500
Voltage:575 V, 460 V
Weld Process:Multi-Process
Duty Cycle:60%
Process Type:MIG/MAG, Stick (MMA), TIG (Lift TIG), Carbon Arc Gouging
Input Voltage:460V, 575V, 3-Phase
Protection Class:IP23
Output Range:16-500A
Compatible Wire Feeders:Robust Feed, Aristo Feed
Dimensions:712 x 325 x 470 mm
Weight:58.5 kg
Packaging Description:pack of 1

INCLUDED

  • Aristo 500ix Power Source
  • Instruction Manual
  • Safety Information

APPLICATIONS

  • Heavy Industrial Fabrication
  • Construction and Civil Engineering
  • Marine and Offshore Industries
  • Pipeline Construction
  • Repair and Maintenance (MRO)
  • Energy and Power Generation
  • Structural Steel Erection

FAQ

The Aristo 500ix is a multi-process machine capable of MIG/MAG, Stick (MMA), Lift TIG welding, and Carbon Arc Gouging.

This specific model (CSA) is designed for 3-phase input voltages between 460V and 575V.

Yes, it has an IP23 protection rating, which protects it against water spray and solid objects, making it suitable for outdoor environments.

It is optimized for use with the ESAB Robust Feed series (Pro, Pulse, U6) and is also compatible with Aristo Feed 3004.

Yes, the power source supports Pulse MIG welding when paired with a compatible pulse-capable wire feeder like the Robust Feed Pulse or U6.

It offers a high duty cycle, typically rated at 60% at 500A, allowing for extended welding periods at high amperages.

Despite its high power, it is a portable inverter weighing approximately 58.5 kg, featuring ergonomic handles and crane lifting points.

Absolutely, the Aristo 500ix has dedicated power capabilities for carbon arc gouging applications.

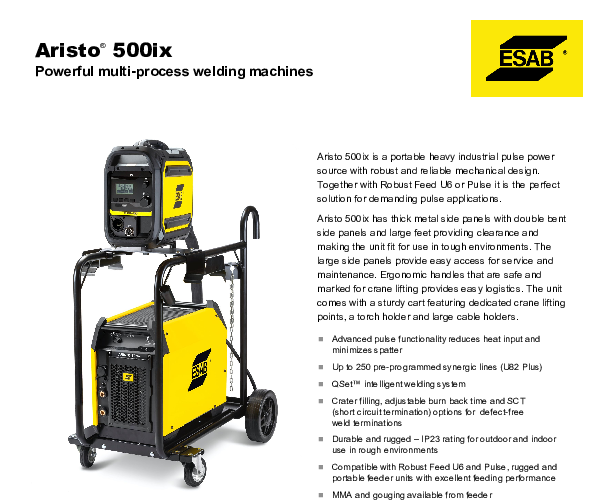

CATALOGUE & SPEC SHEETS

Spec Sheet
