907656002 - Miller Auto-Continuum 350 Robotic Welding System with Centerpoint

Packaging: 1 PER EA
$40,094.31/ea $31,921.00/1 PER EA only $31,921.00/eaSave 20%

Usually ships within 3-5 business days

OVERVIEW

Smart, Powerful, and Ready for Robotics

Take your automated welding operations to the next level with the Miller Auto-Continuum 350. This machine isn't just a power source; it's a comprehensive solution designed to solve the most common challenges in robotic welding. If you are dealing with spatter, inconsistent arc starts, or thermal shutdowns during long shifts, the Auto-Continuum 350 is engineered to eliminate those headaches. With its adaptive arc technology, the system instantly adjusts to changes in contact tip to work distance (CTWD) and gap variations, ensuring a sound weld every time without constant parameter tweaking.

The Centerpoint ACP integration puts you in control of your data. By monitoring arc data directly from the power source, you can identify bottlenecks, optimize cycle times, and guarantee part quality before it leaves the cell. The machine supports Miller's most advanced waveforms: Accu-Pulse for the smoothest, lowest-spatter spray transfer; Versa-Pulse for high-speed travel; and RMD for controlling heat input on thin materials or bridging gaps. These technologies combine to deliver a weld bead that looks as good as it holds.

Installation and maintenance are streamlined thanks to the unit's thoughtful design. The Auto-Line power input means you can hook it up to almost any 3-phase shop power (230–575 V) without opening the case to move jumpers. The internal components are designed to run cooler, maximizing reliability even in hot, dirty manufacturing environments. Plus, the reduced weight and compact footprint make it easier to mount on or near robot arms without sacrificing power. Backed by Miller's True Blue Warranty, the Auto-Continuum 350 is the reliable partner your robotic cell needs to stay running at peak efficiency.

Additional Information
Brand:Miller
Amperage:350
Duty Cycle:100%
Weld Process:MIG (GMAW)
Voltage:230-575 V
Process Type:MIG (GMAW), Flux Cored (FCAW), Pulsed MIG (GMAW-P), RMD
Input Power:Auto-Line 230–575 V, 3-phase, 50/60 Hz
Output Range:20–400 A, 10–44 V
Wire Feed Speed:50 - 800 IPM
Max Open Circuit Voltage:75 VDC
Dimensions:32.00 in (H) x 24.00 in (W) x 30.00 in (L)
Weight:70.76 kg
Cooling Type:Fan-On-Demand
Communication Protocol:Centerpoint ACP
Packaging Description:1 PER EA

INCLUDED

  • Miller Auto-Continuum 350 Power Source
  • Centerpoint ACP (Arc Control Point) Module
  • Owner's Manual

APPLICATIONS

  • Industrial Automation and Robotics
  • Heavy Construction Equipment Manufacturing
  • Automotive Component Fabrication
  • Recreational Vehicle (RV) Production
  • Farm and Agricultural Machinery
  • Office Furniture Manufacturing
  • Mining Machinery Repair and Fabrication

FAQ

The machine features Auto-Line™ technology, accepting 230–575 V, 3-phase input power (50/60 Hz) without manual linking.

Yes, it supports advanced processes including Accu-Pulse® (GMAW-P), Versa-Pulse™, and RMD® (Regulated Metal Deposition), as well as standard MIG and Flux-Cored welding.

The rated output is 350 Amps at 31.5 Volts with a 100% duty cycle, allowing for continuous operation in automated environments.

Centerpoint ACP (Arc Control Point) is an integrated data monitoring system that tracks arc performance and production metrics to improve quality and OEE.

The Auto-Continuum 350 is designed for simple integration with major industrial robot brands and can be used in both fixed and flexible robotic systems.

The low-inertia motor provides a faster response for better arc starts and allows for quicker point-to-point arm movement, reducing cycle times.

The unit weighs approximately 156 lbs (70.76 kg).

The system supports wire feed speeds ranging from 50 IPM to 800 IPM.

CATALOGUE & SPEC SHEETS

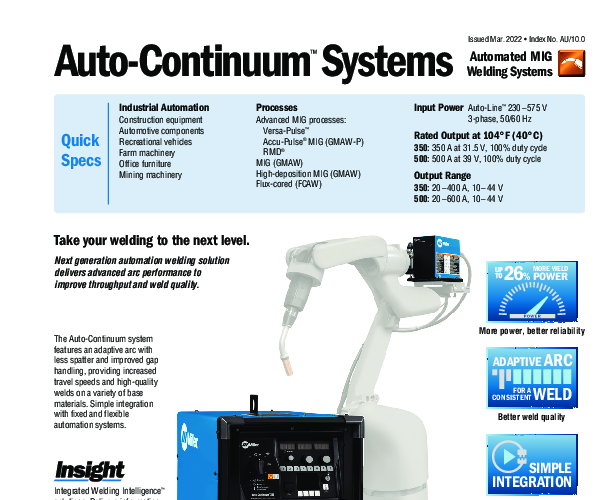

Spec Sheet
