907750001 - Miller Big Blue 600 Air Pak Deutz Diesel Welder Generator Compressor

Packaging: 1 PER EA
$106,412.93/ea $88,881.00/1 PER EA only $88,881.00/eaSave 16%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate All-in-One Mobile Workstation

Transform your service truck into a fully capable mobile workshop with the Miller Big Blue 600 Air Pak. This machine is not just a welder; it is the heartbeat of your field operations, combining a 600-amp welder, a massive 20,000-watt generator, and a powerful 60 CFM air compressor into a single, rugged package. Designed specifically for the professional who demands reliability, the Air Pak allows you to tackle welding, gouging, and pneumatic tool operation simultaneously, drastically increasing your daily throughput.

Built for the Truck, Designed for the Operator
The Truck Mount Spec is engineered with the field technician in mind. Miller understands that climbing into a truck bed to adjust settings is not only time-consuming but a safety hazard. This model features lowered controls that are easily reachable from the ground. Furthermore, with Miller's exclusive ArcReach technology, you can adjust your voltage and amperage right at the weld joint using compatible feeders and remotes. This means fewer trips to the truck, less fatigue, and more arc-on time.

Reliability Meets Efficiency
Under the hood, the Deutz turbo-charged diesel engine provides the muscle you need without the hassle of DEF fluid. It runs clean and quiet, respecting the job site environment while delivering relentless power. The integrated Ingersoll Rand rotary screw compressor is an industrial legend, known for its durability and performance. Because the compressor can be switched off independently, you save fuel and reduce engine wear when you only need welding power. Whether you are repairing heavy mining equipment, laying pipeline, or performing structural steel erection, the Big Blue 600 Air Pak gives you the independence and power to get the job done right, the first time.

Key Benefits:

  • Save Space & Weight: Replace three separate machines with one efficient unit, freeing up payload capacity on your truck.
  • Maximize Uptime: Industrial-grade components and advanced diagnostics keep you running.
  • Versatile Power: Run plasma cutters, grinders, lights, and air tools all from one source.
Additional Information
Brand:Miller
Amperage:600
Duty Cycle:60%
Weld Process:Multi-Process, Engine Drive
Process Type:MIG (GMAW), TIG (GTAW), Stick (SMAW), Flux Cored (FCAW), Air Carbon Arc Gouging (CAC-A)
Engine Brand:Deutz
Engine Model:TD2.9 L4 T4F
Horsepower:65.7 hp
Fuel Type:Diesel
Air Compressor:Ingersoll Rand Rotary Screw, 60 CFM
Generator Output (3 Phase):20,000 W Continuous, 27,000 W Peak
Generator Output (1 Phase):12,000 W Continuous, 15,000 W Peak
Output Range:20 - 600 A
Net Weight:2040 lbs
Packaging Description:1 PER EA
Voltage:n/a

INCLUDED

  • Miller Big Blue 600 Air Pak (Deutz) Truck Mount Spec Unit
  • ArcReach Remote Control Technology
  • FA-1D Lockable Flame Arrestor Fuel Cap
  • Spark Arrestor
  • Air Cleaner Restriction Indicators
  • Vandalism Lockout Kit

APPLICATIONS

  • Heavy Construction and Infrastructure
  • Structural Steel Erection
  • Mining Maintenance and Repair
  • Cross-Country Pipeline Welding
  • Maintenance and Repair Rigs
  • Process Piping
  • Work and Service Trucks

FAQ

The integrated Ingersoll Rand rotary screw air compressor delivers 60 CFM at 100 PSI with a 100% duty cycle.

No, it features an independent on/off clutch control. You can turn the compressor off when it is not needed to save fuel and reduce maintenance.

The Truck Mount Spec has critical controls positioned lower on the machine for easier access when mounted on a truck bed. It also includes a lockable flame arrestor fuel cap and spark arrestor as standard.

No, the Deutz TD2.9 L4 T4F engine uses a Diesel Oxidation Catalyst (DOC) to meet emissions standards, so no DEF or DPF regeneration is required.

ArcReach allows the power source to communicate with remote wire feeders or remotes via the weld cables, eliminating the need for separate control cords.

Yes, the Big Blue 600 Air Pak is rated for carbon arc gouging with carbons up to 3/8-inch (9.5 mm) in diameter.

It provides 20,000 watts of continuous 3-phase power and 12,000 watts of continuous single-phase power.

It supports Stick (SMAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), DC TIG (GTAW), and Air Carbon Arc Gouging (CAC-A).

CATALOGUE & SPEC SHEETS

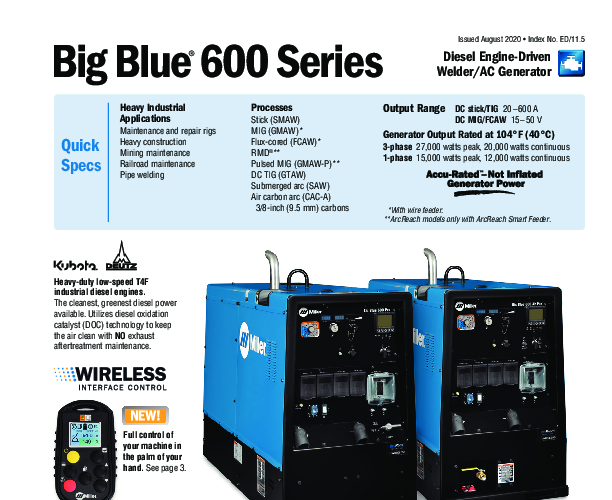

Spec Sheet
