Miller Big Blue 600 Pro Kubota Diesel Welder Generator with ArcReach

$74,875.61/ea $62,539.00/1 PER EA only $62,539.00/eaSave 16%

Usually ships within 3-5 business days

OVERVIEW

Advanced Control and Versatility for Professional Welders

Take full command of your welding operations with the Miller Big Blue 600 Pro Deluxe featuring ArcReach Technology. This game-changing feature allows the power source to communicate with remote wire feeders and Stick/TIG remotes directly through the weld cables. This means you can adjust voltage and amperage right at the weld joint, eliminating the need for fragile and expensive remote control cords. By reducing the need to walk back to the machine for adjustments, ArcReach significantly increases arc-on time and reduces the risk of slips, trips, and falls on cluttered jobsites.

The Big Blue 600 Pro is engineered for superior arc performance across all processes. Miller's proprietary Dynamic DIG technology revolutionizes Stick welding by using a time-based algorithm to automatically adjust current for clearing shorts. This results in a smoother, more consistent arc that can be tailored to specific applications, materials, and fit-ups. For MIG and Flux-Cored welding, the machine offers infinite arc control to fine-tune the bead profile. The Auto-Process Select feature automatically detects the connected accessory and polarity, switching to the correct process instantly to save setup time.

This multi-process beast handles Stick, MIG, Pulsed-MIG, Flux-Cored, and DC TIG with ease. It also boasts impressive Carbon Arc Gouging capabilities, rated for up to 3/8-inch carbons, making it a versatile tool for repair and fabrication. The Wireless Interface Control puts the machine's controls in the palm of your hand, allowing you to turn the unit on or off, select programs, and view service reminders from a distance. With a rated output of 600 amps at 40% duty cycle, the Big Blue 600 Pro is built to perform under pressure, delivering the quality and consistency professional welders demand.

Additional Information
Brand:Miller
Amperage:600
Weld Process:Engine Drive
Watts:12000 W
Duty Cycle:40%
Process Type:Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), Air Carbon Arc Gouging (CAC-A)
Engine Model:Kubota V2403 Turbo-Charged Diesel
Engine Horsepower:48.9 HP
Generator Output (3 Phase):20,000 Watts Continuous, 27,000 Watts Peak
Generator Output (1 Phase):12,000 Watts Continuous, 15,000 Watts Peak
Output Range:20 - 600 A
Weldable Metals:Steel, Stainless Steel, Aluminum
Fuel Capacity:25 Gallons
Dimensions:48.9 in (H) x 28.5 in (W) x 69.5 in (L)
Weight:2095 lbs (950 kg)
Packaging Description:1 PER EA
Voltage:n/a

INCLUDED

  • Big Blue 600 Pro (Kubota) Welder/Generator
  • Wireless Interface Control Remote
  • Vandalism Lockout Kit
  • 120V Block Heater
  • Automatic Glow Plugs
  • User Manual

APPLICATIONS

  • Heavy Construction and Infrastructure
  • Structural Steel Fabrication
  • Mining Maintenance and Repair
  • Cross-Country Pipeline Welding
  • Process Piping
  • Maintenance and Repair Rigs
  • Railroad Maintenance

FAQ

ArcReach technology allows the power source to communicate with remote wire feeders or Stick/TIG remotes using existing weld cables, eliminating the need for separate control cords and allowing operators to adjust settings at the weld joint.

It is equipped with a Kubota V2403 turbo-charged, four-cylinder liquid-cooled diesel engine that is EPA Tier 4 Final compliant.

No, the Kubota Tier 4 Final engine uses a Diesel Oxidation Catalyst (DOC) and does not require Diesel Exhaust Fluid (DEF) or DPF regeneration.

The machine provides 20,000 watts of continuous 3-phase power and 12,000 watts of continuous single-phase power.

Yes, the Big Blue 600 Pro is rated for carbon arc gouging with carbons up to 3/8-inch (9.5 mm) in diameter.

Dynamic DIG is a Miller-exclusive technology for Stick welding that automatically adjusts the amount of current required to clear a short based on a time-based algorithm, providing a smoother and more consistent arc.

Yes, the Deluxe model comes standard with a 120-volt engine block heater and automatic glow plugs for cold weather starting.

The unit weighs approximately 2,095 lbs (950 kg) and measures 48.9 inches in height, 28.5 inches in width, and 69.5 inches in length.

CATALOGUE & SPEC SHEETS

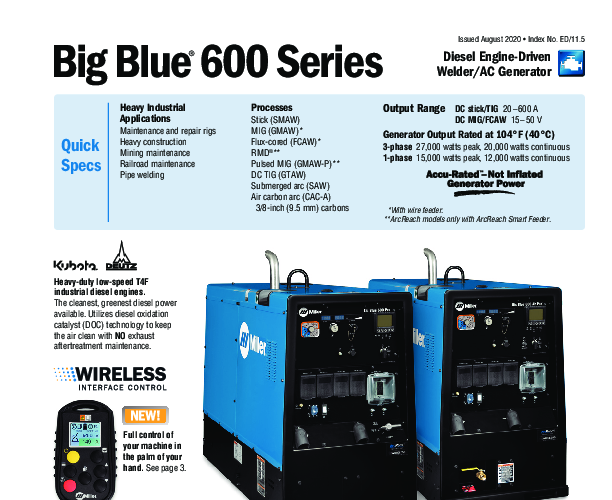

Spec Sheet
