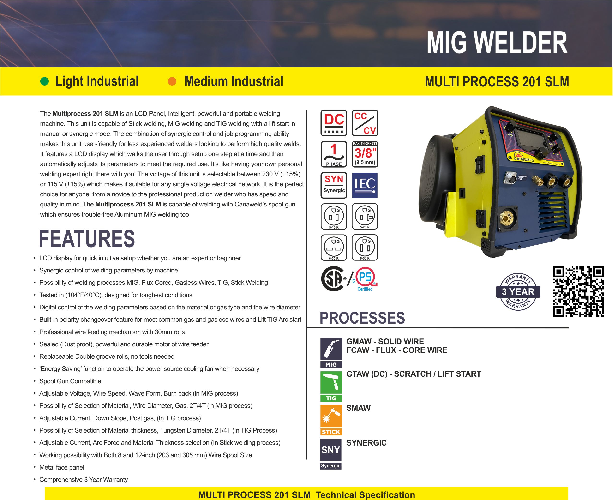

Canaweld 201 SLM 3-in-1 Welder Gold Plus Kit with Cart

Technical Analysis: Canaweld Multiprocess 201 SLM Gold Plus

The Canaweld Multiprocess 201 SLM represents a significant advancement in compact inverter technology, offering a high-duty cycle, multi-process power source tailored for the MRO and light industrial sectors. This unit is engineered to provide stable arc characteristics across GMAW, GTAW, and SMAW processes, utilizing a single-phase input that auto-detects between 120V and 230V (50/60Hz). The "Gold Plus Package with Wheels" SKU (PLC7580157) specifically addresses the need for a turnkey, mobile solution, bundling the power source with a dedicated transport configuration and a full suite of process-specific torches.

Power Source Architecture and Performance

At the heart of the 201 SLM is a high-frequency inverter design that maximizes energy efficiency while minimizing weight. The machine delivers a smooth DC output suitable for welding carbon steel, stainless steel, and alloys. In MIG mode, the unit features a robust metallic wire drive system capable of feeding .023" to .035" solid wires and up to .045" flux-cored wires. The Synergic Mode utilizes pre-programmed algorithms to synchronize voltage and wire feed speed, significantly reducing setup time and ensuring arc stability during short-circuit transfer. For TIG applications, the machine supports Lift-Arc ignition, eliminating the risk of tungsten contamination associated with scratch-start methods, and provides a stable DC arc down to low amperages for thin-gauge stainless steel.

Gold Plus Package Configuration

This specific package is curated to maximize operational readiness. Unlike base models, the Gold Plus variant includes:

• GMAW: A premium Euro-connect MIG gun designed for optimal gas coverage and liner durability.
• GTAW: A dedicated TIG torch with valve control, allowing for immediate deployment in precision applications.
• SMAW: A heavy-duty electrode holder and cable assembly capable of running E7018 and E6010 electrodes.
• Mobility: The inclusion of a wheel kit or integrated running gear ensures the unit can be maneuvered easily over shop floors and cables without requiring a separate aftermarket cart.

Control and Connectivity

The front panel interface features digital metering for real-time monitoring of Voltage (V) and Amperage (A). Operators can easily toggle between processes and adjust inductance settings to control the fluidity of the weld puddle and bead profile (wetting). The machine is also Spool Gun ready, featuring the necessary pin connections to drive a compact spool gun for aluminum wire feeding, bypassing the friction issues inherent in pushing soft aluminum wire through standard MIG liners. With thermal overload protection and fan-on-demand cooling, the Canaweld 201 SLM is built for sustained performance in demanding environments.
