Miller Continuum Industrial Wire Feeder Single Head

$10,109.78/ea $9,128.00/1 PER EA only $9,128.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Reliable Feeding for Non-Stop Welding

If you are running a Miller Continuum system, you know that consistent wire feeding is the name of the game. The Miller 301195 Continuum Single Feeder is designed to keep you welding without the headaches of bird-nesting or slipping wire. It’s built tough for the shop floor, featuring a heavy-duty 4-roll drive mechanism that grips the wire firmly but gently. Whether you are pushing solid wire or flux-cored, this feeder delivers it smoothly to the puddle, letting you focus on your bead profile rather than fighting your equipment. The motor is snappy and responsive, giving you instant starts and stops that are essential for tacking and short welds.

One of the best features for operators is the tool-less design. Changing drive rolls is a breeze and doesn't require hunting for an Allen wrench; you can swap them out in seconds and get back to work. The entire drive assembly can also rotate, which is a huge plus if you are working in tight spaces or have the feeder mounted on a boom. You can angle the gun connection exactly where you need it, reducing the strain on your wrist and the wear on your gun liner. It’s these little ergonomic details that make a long shift feel a lot shorter.

Durability is key in any industrial setting, and this feeder delivers. The case is rugged and ready to take a beating, protecting the motor and guts from grinding dust and sparks. It connects easily to your Continuum power source with a single control cable, keeping your setup clean and organized. With a wide speed range and the ability to handle thick wires, this feeder is the workhorse you need for heavy fabrication, structural steel, and manufacturing jobs. It’s not just a feeder; it’s the reliable partner your Continuum power source deserves.

Additional Information
Brand:Miller
Weld Process:Wire Feeder
Packaging Description:1 Per Ea
Compatible Series:Continuum
Drive System:4-Roll Tru-Feed
Input Power:50 VDC
Wire Feed Speed:50-1000 ipm
Wire Diameter Capacity:0.035 - 5/64 in
Voltage:n/a
Amperage:n/a
Duty Cycle:N/A

INCLUDED

  • Continuum Single Wire Feeder Unit
  • Owner's Manual
  • Installation Hardware

APPLICATIONS

  • Heavy Industrial Manufacturing
  • General Fabrication
  • Construction and Shipbuilding
  • Automotive Manufacturing
  • Railcar Manufacturing
  • Heavy Equipment Production

FAQ

The Miller 301195 Continuum Single Feeder is designed exclusively for use with Miller Continuum 350 and 500 welding power sources.

No, drive rolls are typically sold separately so you can select the specific size and type (V-groove, U-groove, or Knurled) required for your wire.

The feeder supports a wire feed speed range of 50 to 1000 inches per minute (1.3 to 25.4 m/min).

Yes, the drive assembly is rotatable, allowing you to orient the gun connection for better cable management and reduced liner stress.

Tru-Feed is Miller's advanced motor control technology that ensures precise wire feeding and rapid response to arc changes for stable welding performance.

Yes, the Continuum Single Feeder features a tool-less quick-change design for drive rolls, making setup changes fast and easy.

This feeder is rated for wire diameters up to 5/64 inch (2.0 mm).

Yes, it utilizes a 4-roll drive system for consistent and positive wire feeding traction.

CATALOGUE & SPEC SHEETS

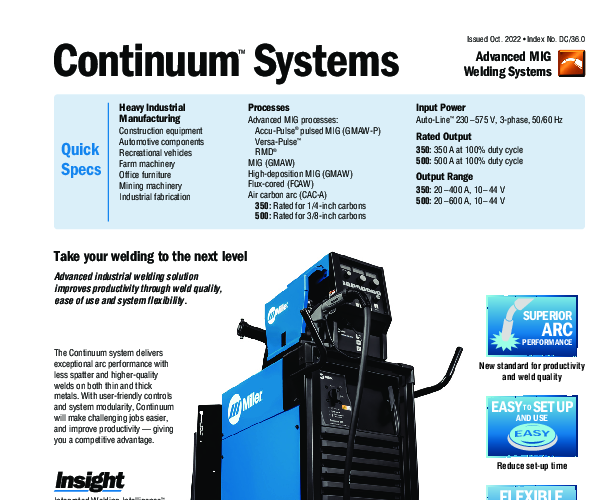

Spec Sheet
