ESAB Rogue ES 130i Portable Stick/TIG Inverter Welder

$955.90/ea $859.07/1 per ea only $859.07/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Go Rogue: Break the Rules of Welding

Meet the ESAB Rogue ES 130i, the stick welder that changes everything you thought you knew about portable power. The days of lugging around heavy, inefficient equipment are over. The Rogue is designed for the welder who needs to move fast and weld hard. Weighing in at just over 18 lbs, this machine is built to go wherever the work takes you, from the workshop to the most remote job sites. With its sturdy shoulder strap and ergonomic handle, it’s ready to grab and go at a moment's notice.

Don't let the size fool you; the Rogue packs a serious punch. It delivers a smooth, stable DC arc that makes welding feel effortless, whether you are burning 6010s on a root pass or laying down smooth beads with 7018s. The digital interface puts total control at your fingertips, allowing you to dial in your settings with precision. Adjustable Hot Start makes striking an arc easy, while Arc Force control prevents sticking, ensuring you get professional results every time you drop the hood.

The Rogue ES 130i isn't just about power; it's about freedom. Thanks to advanced PFC technology, you can run this beast on extension cords up to 300 feet long without losing arc stability. Need to run off a generator? No problem. The Rogue eats unstable power for breakfast. It’s dual voltage too, so whether you have a standard 120V plug or a 230V outlet, you are ready to weld. If you need to switch processes, throw on a TIG torch with a gas valve, and you are ready for Lift TIG applications. It’s time to rethink what a portable welder can do.

Additional Information
Brand:ESAB
Voltage:120/230 V
Amperage:130
Weld Process:TIG (GTAW)
Duty Cycle:25%, 60%
Packaging Description:1 Per Ea
Process Type:Stick (SMAW), Live TIG (GTAW)
Input Voltage:120 VAC, 230 VAC
Amperage Range:10 - 130 A
Open Circuit Voltage:78 V DC
Protection Class:IP23S
Dimensions:403 x 153 x 264 mm (15.8 x 6 x 10.4 in)
Weight:8.25 kg (18.2 lbs)
Generator Requirement:7 kW recommended
Electrode Capacity:Up to 3.2 mm (1/8 in)

INCLUDED

  • ESAB Rogue ES 130i Power Source
  • 10 ft. (3 m) Mains Cable and Plug
  • Shoulder Strap
  • Electrode Holder with 10 ft. (3 m) Cable
  • Return Cable and Clamp with 10 ft. (3 m) Cable

APPLICATIONS

  • Repair and Maintenance
  • Civil Construction
  • Agricultural Equipment Repair
  • Industrial and General Fabrication
  • Field Installation
  • Light Manufacturing

FAQ

The machine has a maximum output of 130 Amps when running on 230V input power.

Yes, the Rogue ES 130i is generator compliant. ESAB recommends using a generator with at least 7 kW output for optimal performance.

Yes, the Rogue ES 130i supports TIG welding using a "Live TIG" (Lift TIG) start. You will need an optional TIG torch with a built-in gas valve.

The Rogue ES 130i is rated to handle electrodes up to 3.2 mm (1/8 inch) in diameter.

Yes, the package includes a 10 ft. electrode holder and cable, and a 10 ft. return (ground) cable and clamp.

Yes, it accepts both 120V and 230V single-phase input power, offering great flexibility for different job sites.

At 230V, the duty cycle is 25% at 130 Amps. At 120V, the duty cycle is 25% at 90 Amps.

Yes, the Rogue ES 130i features a special mode specifically designed for stable performance with cellulosic 6010 electrodes.

CATALOGUE & SPEC SHEETS

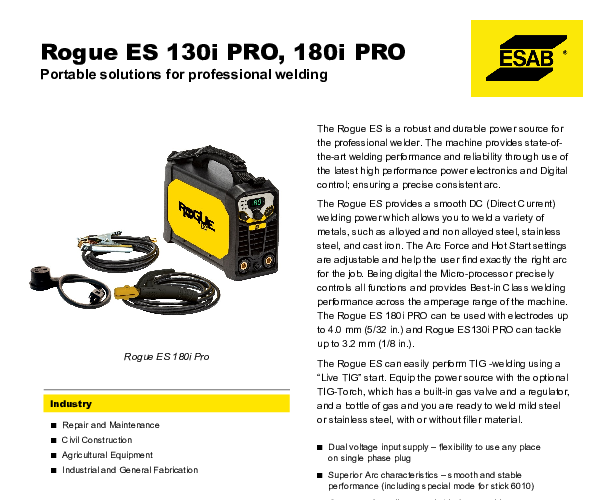

Spec Sheet
