K4274-1 - Lincoln Flextec 350X PowerConnect with LF-74 Feeder One-Pak

Packaging: 1 Per Ea
$14,762.13/EA $13,839.50/1 Per Ea only $13,839.50/EASave 6%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Ready-to-Weld Industrial Package

When your job demands reliability, versatility, and power, the Lincoln Flextec 350X PowerConnect / LF-74 One-Pak delivers everything you need in one complete system. Designed for professional welders who move between the shop and the field, this package takes the guesswork out of equipment setup. At its heart is the Flextec 350X, a machine that is as rugged as it is smart. Whether you are hooking up to 208V single-phase power in a garage or 480V three-phase on a large commercial job site, the PowerConnect feature handles it automatically—no tools or internal linking required. Just plug it in and start welding.

This One-Pak pairs the power source with the legendary LF-74 wire feeder, known for its durability and smooth feeding performance. If you are tired of dealing with birdnests and inconsistent wire delivery, the LF-74 is the upgrade you have been looking for. The system also features Lincoln's CrossLinc Technology, which is a game-changer for anyone working at a distance from their power source. It lets you adjust your voltage settings right at the feeder without needing an extra control cable. This means fewer cables to drag around, fewer trip hazards, and less time walking back and forth to the machine to make adjustments.

The K4274-1 One-Pak comes fully loaded to get you welding immediately. It includes the heavy-duty inverter and wire feeder cart for mobility, a Magnum PRO Curve 400 MIG gun that is comfortable for all-day use, gas regulator, and all the necessary cables. Whether you are welding structural steel, repairing heavy equipment, or fabricating parts, this multi-process system handles MIG, TIG, Stick, and Flux-Cored welding with ease. It is built to withstand harsh environments, rated for extreme heat and weather resistance, so you can focus on laying down the perfect bead, no matter where the job takes you.

Additional Information
Brand:Lincoln Electric
Amperage:350
Voltage:200-600 V
Duty Cycle:60%
Weld Process:Multi-Process
Packaging Description:1-of-1
Process Type:MIG, TIG, Stick, Flux-Cored, Arc Gouging
Input Voltage:200-600V
Phase:1-Phase, 3-Phase
Output Range:5-425A
Wire Feed Speed Range:50-800 ipm
Technology:PowerConnect, CrossLinc
Protection Rating:IP23
Applications:Construction, Fabrication, Shipbuilding, Rental Fleets

INCLUDED

  • Flextec 350X PowerConnect Power Source (K4273-1)
  • LF-74 Bench Model Wire Feeder (K2426-5)
  • Magnum PRO Curve 400 Gun Ready-Pak (K2952-2-10-45)
  • Work Lead Package (K2149-1)
  • Harris Flowmeter/Regulator and Hose (3100211)
  • Inverter and Wire Feeder Cart (K3059-4)
  • Control Cable (K1797-10)
  • Drive Rolls for .035-.045 in. Solid Wire

APPLICATIONS

  • General Fabrication
  • Structural Steel Construction
  • Heavy Equipment Repair
  • Shipbuilding and Offshore
  • Rental Fleets
  • Power Generation Plants
  • Pipeline Construction

FAQ

The One-Pak includes the Flextec 350X PowerConnect power source, LF-74 Bench Wire Feeder, Magnum PRO Curve 400 Gun, Inverter Cart, Work Lead, Regulator/Flowmeter, and necessary cables.

Yes, thanks to PowerConnect Technology, the machine automatically adjusts to input power ranging from 200-600V, including both single-phase and three-phase sources.

CrossLinc allows for voltage and amperage control at the wire feeder using the standard copper weld cable, eliminating the need for a separate control cable between the power source and feeder.

Yes, the Flextec 350X is capable of carbon arc gouging with carbons up to 3/16 inch (4.8 mm) in diameter.

The machine is rated at 350 Amps at 34 Volts with a 60% duty cycle, and 300 Amps at 32 Volts with a 100% duty cycle.

The LF-74 is a bench model feeder designed for shop environments but is mounted on the included cart in this One-Pak for mobility around the shop floor.

No, the PowerConnect technology automatically senses the input voltage and configures the machine, eliminating manual relinking.

The Flextec 350X has an IP23 rating, providing protection against solid objects greater than 12mm and spraying water, suitable for outdoor use.

CATALOGUE & SPEC SHEETS

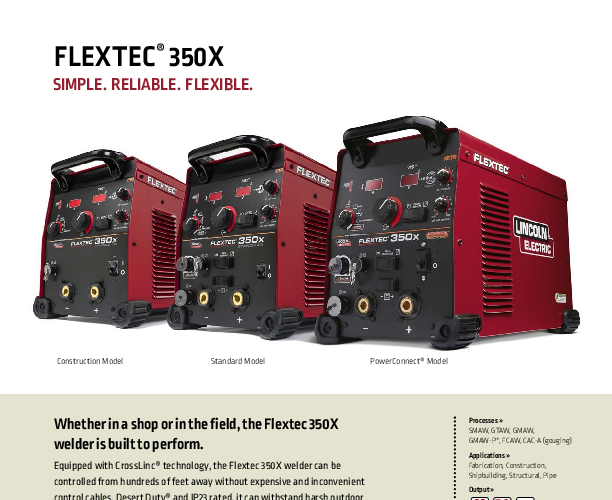

Spec Sheet
