Lincoln Flextec 500X with LF-72 Feeder Package

Advanced Multi-Process Control with CrossLinc Technology

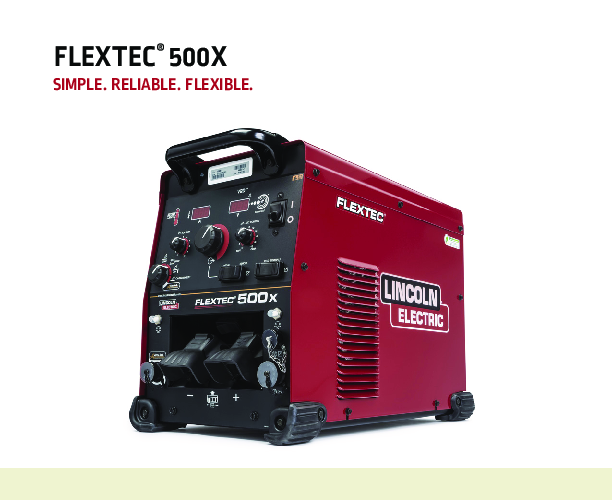

The Lincoln Electric K3608-1 Flextec 500X / LF-72 Ready-Pak is a premier multi-process welding system engineered for professional welders who require precision, power, and connectivity. At the heart of this package is the Flextec 500X, a 500-amp inverter power source that leverages Lincoln's proprietary CrossLinc technology. CrossLinc allows for full remote control of the welding procedure—including voltage and amperage adjustments—directly from the wire feeder without the need for an additional control cable. This innovation solves two major jobsite problems: it eliminates the voltage drop discrepancies often found with long control cables, and it reduces cable clutter, thereby enhancing safety and reducing setup time.

Technically, the Flextec 500X is a powerhouse of versatility. It supports a wide array of welding processes including Stick, DC TIG, MIG, Flux-Cored, and Carbon Arc Gouging. It is ArcLink enabled, which opens the door to advanced digital communication with the feeder. This allows for Synergic Pulse modes, optimizing the arc for specific materials like stainless steel, aluminum, and metal-core wires. The machine automatically adjusts parameters to maintain a stable arc, giving the operator superior control over the weld puddle and heat input. The unit is compatible with all 42VAC wire feeders, but the inclusion of the LF-72 Heavy Duty model in this Ready-Pak ensures you have a feeder capable of handling large spool sizes and high-duty cycles.

The build quality of the Flextec 500X is specifically targeted at harsh industrial applications. It features an IP23 rating for weather resistance and is Desert Duty rated for operation up to 55°C. The internal electronics are fully potted and trayed, providing a robust barrier against conductive dust and atmospheric contaminants. For stick welding, the machine offers optimized modes for both cellulosic (6010) and low-hydrogen (7018) electrodes, ensuring arc stability and easy restarts. The Touch Start TIG feature allows for contamination-free starts without high-frequency interference.

This Ready-Pak is a comprehensive solution that includes the power source, the LF-72 bench feeder, a heavy-duty cart, and essential cabling. The LF-72 feeder itself is a workhorse, featuring a rugged drive roll system designed to feed large diameter wires consistently, reducing the risk of bird-nesting or slippage. For professionals in heavy fabrication, pipeline, or infrastructure, the K3608-1 offers a sophisticated yet rugged platform that maximizes arc time and weld quality.
