Lincoln Flextec 650X 4-Pack Inverter Rack Multi-Process Welder

$81,270.64/EA

Usually ships within 3-5 business days

OVERVIEW

Power Your Crew with Less Hassle

When you are running a big job site, setup time and cable management are the enemies of productivity. The Lincoln Flextec® 650X 4-Pack Rack is the ultimate solution for getting four arcs up and running quickly. Instead of wiring up four separate machines, you just need one power drop to energize the entire rack. This means less time dealing with electricians and more time burning rod and wire. The rugged rack frame protects your investment and makes it easy to crane-lift the whole setup to wherever the work is, whether that's ten stories up or deep in a mine.

The real game-changer here is the CrossLinc™ technology. We all know the pain of dragging extra control cables across a site just to adjust your voltage, or worse, having to walk all the way back to the power source to tweak a setting. With CrossLinc, you get full control right at your feeder using just your standard weld cable. This keeps your workspace cleaner, reduces trip hazards, and saves you countless trips back and forth. You get better quality welds because you're more likely to adjust your settings to exactly what you need, right when you need it.

Don't let the compact size fool you; these machines are beasts. Each Flextec 650X pumps out 650 amps at 100% duty cycle. That means you can run thick flux-cored wire or gouge with 3/8-inch carbons all day long without the machine breaking a sweat. They are built tough with IP23 weather protection and can handle extreme heat, so they won't quit on you in the middle of a summer shift. Whether you are doing structural steel, heavy equipment repair, or field erection, this rack gives your team the reliable power they need to get the job done.

Additional Information
Brand:Lincoln Electric
Amperage:650
Weld Process:Multi-Process
Packaging Description:4-per-ea
Duty Cycle:100%
Process Type:MIG, TIG, Stick, Flux-Cored, Arc Gouging
Input Voltage:380/460/575V 3-Phase
Output Range:10-815A
Rated Output:650A/44V/100%, 750A/44V/60%
Protection Class:IP23, Desert Duty® Rated
Rack Capacity:4 Power Sources
Communication Technology:CrossLinc™, ArcLink®
Voltage:200-600 V

INCLUDED

  • 4x Flextec® 650X Multi-Process Power Sources
  • 1x Heavy-Duty Inverter Rack Structure
  • Factory-installed input power distribution (Single Power Drop)
  • Lift Bail

APPLICATIONS

  • Heavy Construction & Field Erection
  • Shipbuilding & Offshore
  • Mining & Aggregate Repair
  • Structural Steel Fabrication
  • Power Generation Plants
  • Pipeline Construction

FAQ

The rack requires a 3-phase input and can accept 380V, 460V, or 575V. It utilizes a single power drop to distribute power to all four welders.

Yes, the Flextec 650X units included in this rack are equipped with CrossLinc technology, allowing for remote parameter control over the weld cable when used with a CrossLinc-compatible feeder.

Each Flextec 650X is rated for 650 Amps at 100% duty cycle and 750 Amps at 60% duty cycle.

Yes, the system is IP23 rated and Desert Duty® certified, making it suitable for outdoor use and extreme temperatures up to 55°C.

Absolutely. The Flextec 650X has plenty of power for arc gouging with carbons up to 3/8 inch (9.5 mm) in diameter.

If you use CrossLinc-enabled feeders (like the LN-25X), you do not need a separate control cable. Communication happens over the welding power lead.

The rack is designed with a heavy-duty square tube frame that includes forklift pockets and a lifting bail for crane transport.

CATALOGUE & SPEC SHEETS

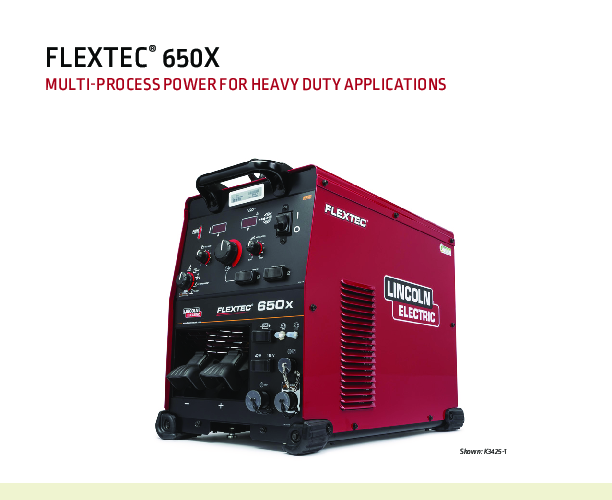

Spec Sheet
