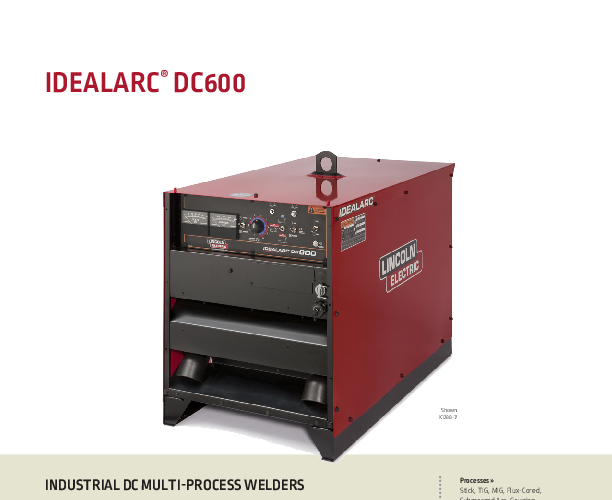

K1365-28 - Lincoln Idealarc DC-600 VRD Industrial Multi-Process Welder 415V

Precision Control and Multi-Process Versatility

The Idealarc DC-600 VRD (K1365-28) by Lincoln Electric utilizes time-tested SCR rectifier technology to deliver a smooth, stable, and highly controllable arc. Unlike inverter-only machines, the SCR design offers a unique arc feel that many professional welders prefer for heavy-plate applications, particularly in Submerged Arc and Flux-Cored welding. This machine provides full-range output voltage control, allowing operators to dial in the exact parameters needed for the job, monitored via large, easy-to-read analog ammeters and voltmeters.

Versatility is at the core of the DC-600's design. A simple mode switch on the front panel allows you to instantly toggle between Constant Voltage (CV) for MIG and Flux-Cored welding, and Constant Current (CC) for Stick, TIG, and Gouging applications. This flexibility makes it a true all-in-one solution for shops that handle diverse projects. The machine is also capable of driving welding current through cables up to 200 feet (61 meters) long without compromising arc stability, making it perfect for large-scale projects like shipyards or bridge construction where the power source cannot be right next to the joint.

The K1365-28 model is specifically configured for 415V input and includes advanced circuitry protection. The VRD system is seamlessly integrated, providing safety without affecting the machine's ability to start the arc reliably. Additionally, the unit features a 14-pin MS-style connector for easy connection to a wide range of Lincoln wire feeders, including the LN-25 and LF series. With its ability to handle up to 3/8-inch (9.5mm) carbon arc gouging rods, this machine is as effective at removing metal as it is at depositing it.

Technical Highlights

• SCR Rectifier Arc: Delivers a traditional, forgiving arc preferred for code-quality heavy welding.
• Dual Mode Output: Switchable CV/CC for optimal performance across all processes.
• Long Reach: Maintains arc performance even with extra-long cable runs.
• Gouging Capability: Powerful enough to run large carbons for efficient defect removal and joint prep.
