Lincoln Idealarc 250 AC/DC Stick Welder with PFC, 208/230/460V

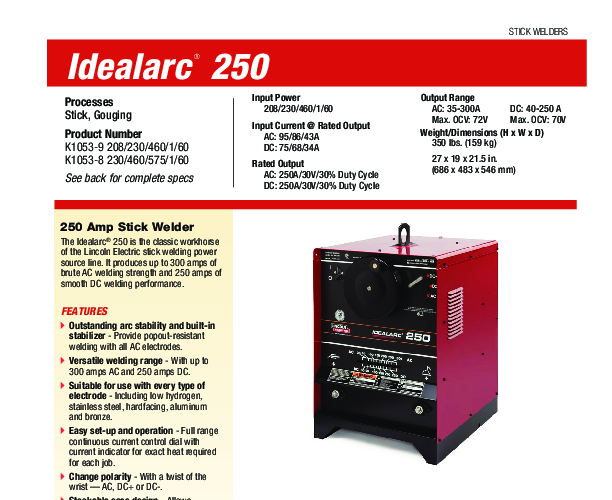

Lincoln Idealarc 250 Stick Welder with PFC - K1053-9

The Lincoln Electric Idealarc 250 (K1053-9) is a single-phase, industrial AC/DC stick welder engineered for superior arc performance and electrical efficiency. This specific model comes factory-equipped with Power Factor Capacitors (PFC), which act to smooth the input power draw. By correcting the power factor, the machine draws less current from the mains compared to non-PFC models, allowing for installation on circuits with lower amperage breakers and reducing overall power consumption costs. This makes the K1053-9 an excellent solution for facilities where power supply efficiency is a priority.

At the heart of the Idealarc 250 is its impressive output range. It delivers 35 to 300 Amps on AC and 40 to 250 Amps on DC, providing the flexibility to weld everything from thin sheet metal to heavy plate. The machine boasts a rated output of 250A at 30 Volts with a 30% duty cycle. It is compatible with all standard stick electrodes, including low hydrogen, stainless steel, hardfacing, aluminum, and bronze. The unit features an outstanding arc stability system with a built-in stabilizer, which is essential for maintaining a consistent arc when using AC electrodes. This results in high-quality welds with minimal spatter and reduced risk of arc outages.

The user interface is designed for efficiency and ease of use. A large, continuous current control dial with an easy-to-read indicator permits fine-tuning of the amperage settings. Changing polarity is instantaneous thanks to the front-mounted selector switch, allowing transitions between AC, DC Electrode Positive (Reverse Polarity), and DC Electrode Negative (Straight Polarity) without disconnecting cables. The machine is also capable of TIG welding when paired with an optional TIG torch and gas valve (scratch start method), as well as carbon arc gouging with carbons up to 3/16 inch diameter.

Technical Specifications & Features:

• Input Power: 208/230/460V, Single Phase, 60Hz.
• Output Range: 35-300A AC / 40-250A DC.
• Dimensions: 27.0" H x 19.0" W x 21.5" D.
• Weight: 350 lbs (159 kg).
• Cooling: Fan-cooled for extra thermal protection.
• Stackability: Case design allows for 3-high stacking.

Whether for general fabrication, vocational training centers, or maintenance repair operations (MRO), the Lincoln Idealarc 250 K1053-9 provides the reliable power and versatile performance required by professional welders.
