K4877-1 - Lincoln Electric POWER MIG 215 MPi Multi-Process Welder

Packaging: 1 per ea
$4,153.73/EA

Usually ships within 3-5 business days

OVERVIEW

Advanced Technology in a Compact Package

The Lincoln Electric K4877-1 POWER MIG 215 MPi represents a leap forward in the 200-amp class of welding machines. Engineered for robust performance and technological integration, this unit features ArcFX® technology, which provides instant visual feedback on the user interface, showing how wire feed speed and voltage adjustments affect the weld profile. This level of control allows for precise tuning of the arc, ensuring optimal penetration and bead appearance for critical applications.

Durability and reliability are at the core of the POWER MIG 215 MPi. It features a heavy-duty wire drive system that ensures consistent feeding, reducing the risk of bird-nesting and downtime. The machine's solid state design and robust case are built to withstand the rigors of daily industrial use. With a maximum output of 220 Amps, it offers the power needed for thicker materials while maintaining a stable arc at lower amperages for thin sheet metal. The inclusion of a built-in TIG solenoid and foot pedal adapter makes switching to TIG welding seamless, requiring no external gas valve manipulation.

This package is comprehensive, including both the standard MIG gun and the Magnum PRO 100SG Spool Gun, expanding its capabilities to aluminum welding immediately. The unit also features memory capability, allowing operators to save and recall their most frequently used settings, significantly increasing efficiency in repetitive welding tasks. For professionals seeking a machine that combines power, precision, and advanced user features, the POWER MIG 215 MPi is the superior choice.

Additional Information
Brand:Lincoln Electric
Voltage:120/230 V
Amperage:220
Weld Process:Multi-Process
Duty Cycle:25%
Process Type:MIG, TIG, Stick, Flux-Cored, Multi-Process
Input Voltage:120V, 230V
Output Range:20A - 220A
Wire Feed Speed:50 - 500 ipm
Weight:48 lbs
Dimensions:15 in x 10.75 in x 19 in
Solid Wire Size Range:0.025" - 0.035"
Cored Wire Size Range:0.030" - 0.045"
Warranty:3 Years
Packaging Description:1 per ea

INCLUDED

  • Magnum® PRO 175L Gun 10 ft. (3.0 m) (K4076-1)
  • Magnum® PRO 100SG Spool Gun (K3269-1)
  • 230V to 120V power cord adapter
  • Work Cable and Clamp
  • Electrode Holder and Lead Assembly
  • Adjustable Gas Regulator and Hose
  • Gas and Gasless Nozzles
  • Gun Cable Liner (pre-installed in gun)
  • Spindle Adapter
  • Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire (EDO30631)
  • 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips
  • 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
  • 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
  • 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides

APPLICATIONS

  • Automotive Repair and Restoration
  • General Fabrication
  • Maintenance and Repair Operations (MRO)
  • Light Industrial Manufacturing
  • Farm and Agricultural Repair
  • Vocational Training and Education
  • Brewery and Distillery Maintenance

FAQ

The POWER MIG 215 MPi is a multi-process welder capable of MIG, Flux-Cored, Stick, and DC TIG welding.

Yes, this specific package includes the Magnum® PRO 100SG Spool Gun (K3269-1), allowing for immediate aluminum welding capabilities.

Yes, the machine features dual voltage inputs and includes a 230V to 120V adapter, allowing it to run on standard 120V household outlets as well as 230V industrial power.

It is very portable, weighing only 48 lbs and featuring an ergonomic case with multiple lift points, making it easy to move around the shop or to job sites.

The rated duty cycle is 25% at 200 Amps (230V input), allowing for sustained welding at high amperages for short durations or continuous welding at lower amperages.

ArcFX® Technology provides a visual representation on the display screen of how changes in wire feed speed and voltage will affect the weld bead profile, aiding in precise setup.

No, the TIG process on the POWER MIG 215 MPi is DC only, which is suitable for steel and stainless steel. Aluminum welding should be done using the MIG process with the included spool gun.

The machine can handle solid wire diameters from 0.025" to 0.035" and flux-cored wire diameters from 0.030" to 0.045".

CATALOGUE & SPEC SHEETS

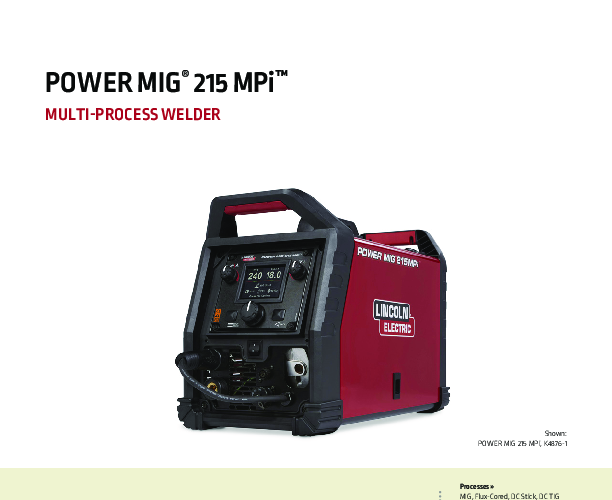

Spec Sheet
