K4784-1 - POWER MIG 360MP Aluminum One-Pak Multi-Process Welder

Packaging: 1 per ea
$19,325.35/EA

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Aluminum MIG Package: Ready, Set, Weld

If you are building trailers, repairing aluminum truck bodies, or just want the best possible MIG experience on aluminum, the Lincoln Electric POWER MIG® 360MP Aluminum One-Pak is built for you. We know that feeding aluminum wire can be a headache with standard MIG guns, which is why this package comes pre-loaded with the solution: a premium Magnum® PRO AL Push-Pull Gun. This gun actively pulls the soft aluminum wire while the machine pushes it, eliminating jams and bird-nests so you can keep your arc on and your downtime off. It’s not just a welder; it’s a complete fabrication station designed to make you look like a pro from the very first bead.

The first thing you'll notice is the massive 7-inch color screen. Gone are the days of guessing your settings or squinting at small digital meters. With the 360MP, you get clear, full-color menus that guide you through setup. The Ready.Set.Weld® feature is like having a Lincoln Electric expert standing right next to you—just tell the machine what wire you're running and how thick your metal is, and it sets the perfect parameters for you. For those who want that classic "stacked dimes" look without the slow speed of TIG, the Pulse-on-Pulse® mode is a game-changer. It pulses the current to give you beautiful, ripple-pattern welds that look amazing and pass inspection every time.

Versatility is key in any modern shop, and the 360MP delivers. While this package is tuned for aluminum, the machine itself is a multi-process beast. Need to stick weld a heavy bracket? It can do that. Need to run some flux-cored wire on structural steel? No problem. It even has memory capability, so once you dial in that perfect setting for a recurring job, you can save it and recall it instantly next time. The POWER MIG 360MP Aluminum One-Pak takes the complexity out of advanced welding, giving you the power to tackle any job with confidence and speed.

Additional Information
Brand:Lincoln Electric
Amperage:300
Voltage:208/230/460/575 V
Weld Process:Multi-Process
Duty Cycle:60%
Process Type:MIG, TIG, Stick, Flux-Cored, Pulse MIG
Input Phase:1-Phase
Output Range:20-360A DC
Wire Feed Speed:50-700 ipm
Dimensions:37.8 in x 18.8 in x 44 in
Net Weight:255 lbs
Applications:Trailer Manufacturing, Automotive, General Fabrication
Warranty:3 Years
Packaging Description:1 per ea

INCLUDED

  • POWER MIG® 360MP Welder (K4467-1)
  • Magnum® PRO AL G225A Push-Pull Gun, 25 ft. (K4628-1)
  • Aluminum Drive Roll Kit (KP1695-3/64A)
  • SuperGlaze® 5356 3/64 in. 16 lb Spool (ED030308)
  • Work Clamp and Cable
  • Gas Regulator and Hose
  • 115V Auxiliary Power Receptacle
  • User Interface with 7-inch Color Display

APPLICATIONS

  • Aluminum Trailer Manufacturing
  • Automotive Body Repair
  • General Fabrication
  • Industrial Maintenance
  • Vocational Training Centers
  • Shipbuilding and Marine Repair

FAQ

The K4784-1 package includes the POWER MIG 360MP welder, a Magnum PRO AL G225A Push-Pull Gun (25 ft), an aluminum drive roll kit, a 16 lb spool of SuperGlaze 5356 aluminum wire, a work clamp with cable, and a gas regulator with hose.

Yes, the machine is capable of operating on multiple input voltages including 208V, 230V, 460V, and 575V single-phase power.

Pulse-on-Pulse technology modulates the welding current to control heat input, helping to prevent burn-through on thin aluminum and creating a bead appearance that resembles TIG welding 'stacked dimes'.

Absolutely. While this specific One-Pak is optimized for aluminum with the included push-pull gun, the machine itself is fully capable of MIG, Stick, TIG, and Flux-Cored welding on steel and stainless steel.

The rated duty cycle is 60% at 300 Amps and 29 Volts, allowing for extended welding periods in industrial environments.

Aluminum wire is soft and prone to buckling (bird-nesting) in standard guns. The push-pull gun has a motor in the handle that pulls the wire while the machine pushes it, ensuring smooth, uninterrupted feeding.

Yes, it features a 7-inch color display with an intuitive user interface that simplifies setup and provides visual feedback via ArcFX technology.

The POWER MIG 360MP can accept standard 12-inch (33 lb or 44 lb) spools, as well as 8-inch spools.

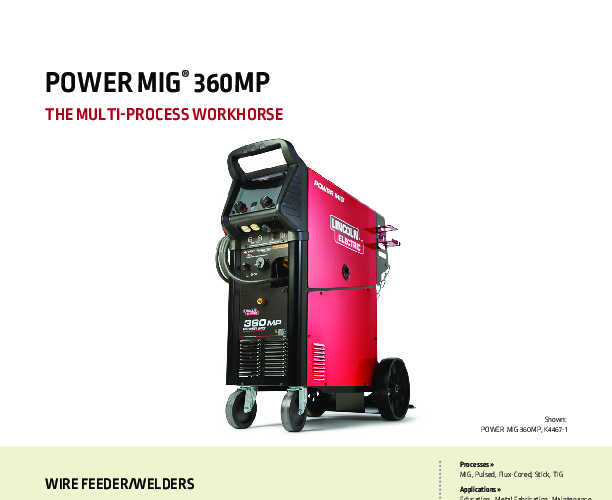

CATALOGUE & SPEC SHEETS

Spec Sheet
