Miller Trailblazer 330 EFI Welder with Excel Power & WIC

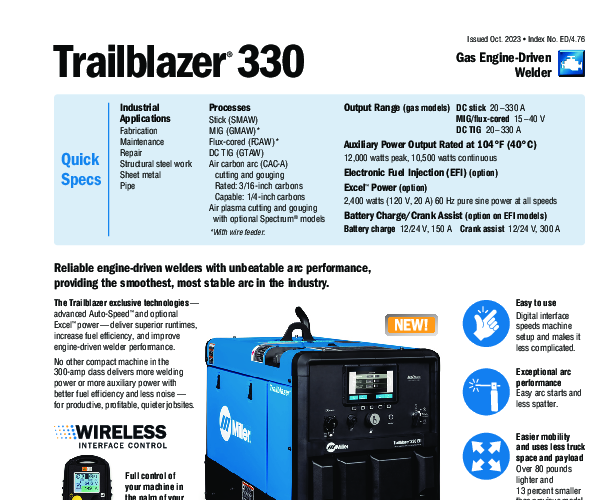

Technical Overview: Miller Trailblazer 330 EFI (907832002)

The Miller Trailblazer 330 EFI (Stock No. 907832002) is a high-performance, multi-process engine-driven welder and generator engineered for heavy industrial applications. Powered by a 23 HP Kohler gasoline engine with Electronic Fuel Injection (EFI), this unit provides a rated weld output of 330 amps at 30 volts with a 100% duty cycle. It is designed to support Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), and Air Carbon Arc (CAC-A) cutting and gouging processes.

Advanced Power Management Systems

This specific configuration includes Miller's proprietary Excel Power and Wireless Interface Control. Excel Power provides 2,400 watts of 120V, 60 Hz pure sine wave auxiliary power at engine idle (2,400 RPM). This inverter-based power source allows for the operation of peripheral tools without the high fuel consumption and noise associated with running the engine at full speed (3,600 RPM). The generator also provides a peak auxiliary output of 12,000 watts and a continuous output of 10,500 watts for heavier loads.

Digital Integration and Arc Control

The Trailblazer 330 features ArcReach technology, which utilizes existing weld cables to communicate process adjustment commands from compatible wire feeders and remotes back to the power source. This eliminates the need for fragile and expensive control cables. The machine also employs Dynamic DIG technology, a time-based algorithm that adjusts current to clear shorts during Stick welding, providing superior arc stability compared to conventional fixed-dig systems. For TIG applications, the Lift-Arc DC TIG with QuietPulse minimizes audible noise by softening the transition between background and peak amperage.

Mechanical and Physical Specifications

Physically, the unit is engineered for mobility, with a footprint of 20.13 inches in width and 37.06 inches in length. The engine is rotated to the front to optimize airflow, resulting in cooler operation and reduced noise (65 dB at idle with Excel Power). Maintenance is streamlined with toolless panel access and a digital interface that tracks service intervals. The unit includes a direct spool gun connection for Miller Spoolmatic and Spoolmate guns, bypassing the need for a WC-24 control.
