951834 - Miller AlumaFeed 350 MPa Aluminum MIG Welding System with 25ft Push-Pull Gun

Packaging: 1 of each
$26,646.61/ea $24,061.00/1 of each only $24,061.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Weld Aluminum Like a Pro, All Day Long

If you have ever struggled with bird-nesting wire, burn-backs, or inconsistent arcs while welding aluminum, the Miller AlumaFeed 350 MPa package is the answer. This system is built from the ground up to make aluminum MIG welding as easy and reliable as welding steel. The included XR-Aluma-Pro push-pull gun is a game-changer; it grabs the wire at the feeder and pulls it at the gun simultaneously, ensuring smooth, uninterrupted feeding even at 25 feet away from the machine. The gun itself is balanced and ergonomic, designed to reduce wrist strain during long shifts, allowing you to focus on the weld rather than fighting the equipment.

One of the coolest features for the operator is the Profile Pulse™ mode. You know that classic "stacked dimes" look that usually takes a TIG torch and a lot of patience to achieve? This machine does it for you with a MIG gun. You don't need to whip or manipulate the gun; the machine pulses the current to create that ripple pattern automatically. It looks great and impresses clients without slowing you down. Plus, with Synergic Pulsed MIG, you don't have to be a rocket scientist to set it up. Just dial in your wire speed, and the machine handles the voltage and pulse settings for you.

The package includes the rugged XR-AlumaFeed Suitcase feeder, which is tough enough to be dragged around the shop or shipyard. It protects your wire from dirt and moisture, which is killer for aluminum welds. Whether you are building boats, fixing trailers, or fabricating signs, this Miller package gives you the power, reach, and consistency to put down perfect aluminum welds every time you pull the trigger.

Additional Information
Brand:Miller
Weld Process:MIG (GMAW)
Voltage:208-575 V
Amperage:350
Packaging Description:1 of each
Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), Synergic Pulsed MIG
Input Voltage:208-575 V
Cooling Type:Air-Cooled
Portability:Portable Feeder, Stationary Power Source
Applications:Aluminum Fabrication, Shipbuilding, Transportation, Sign Manufacturing
Included Accessories:XR-Aluma-Pro Gun, Suitcase Feeder, Drive Rolls, Contact Tips
Duty Cycle:60%

INCLUDED

  • AlumaPower 350 MPa Power Source
  • XR-AlumaFeed Suitcase Wire Feeder
  • XR-Aluma-Pro 25 ft. Air-Cooled Push-Pull Gun
  • Fastip contact tips (3 each for .035 Al and 3/64 Al)
  • Gun and feeder drive rolls for .035-3/64 wires

APPLICATIONS

  • Marine Fabrication: Ideal for boat, ship, and yacht building where long reach and high-quality aluminum welds are required.
  • Transportation: Perfect for manufacturing and repairing commercial trucks, trailers, and recreational vehicles.
  • Aerospace: Delivers the precision and consistency needed for critical aerospace components.
  • Sign Manufacturing: Enables high-speed production with aesthetic bead quality for visible structures.
  • Emergency Vehicles: reliable performance for fabricating fire trucks and ambulances.

FAQ

Profile Pulse is a feature that provides the cosmetic appearance of a TIG weld (stacked dimes) using the simplicity and speed of MIG welding. It modulates the welding output frequency to create a ripple pattern without requiring the operator to manipulate the gun.

Yes, the AlumaPower 350 MPa features Auto-Line Power Management Technology, allowing it to connect to any input voltage from 208 to 575 V, single or three-phase, without manual linking.

The XR-Aluma-Pro push-pull gun works in synchronization with the feeder to push wire from the source and pull it at the gun. This eliminates friction and prevents the soft aluminum wire from buckling or bird-nesting, ensuring consistent feeding over long distances.

While the AlumaPower 350 MPa is capable of MIG welding steel, this specific package is optimized for aluminum. It comes with aluminum-specific drive rolls, liners, and a push-pull gun designed for soft wires. Welding steel would require changing liners, drive rolls, and potentially the gun setup.

The package includes contact tips and drive rolls for .035 inch (0.9 mm) and 3/64 inch (1.2 mm) aluminum wires.

Yes, the XR-AlumaFeed Suitcase feeder is designed in a rugged, impact-resistant plastic case that is lightweight and portable, allowing welders to extend their reach into difficult-to-access areas.

Synergic Pulsed MIG is a control mode where the power source automatically adjusts pulse parameters (voltage, background current, etc.) based on the wire feed speed set by the operator. This simplifies setup and ensures a stable arc.

The power source uses Fan-On-Demand, an air-cooling system that runs only when needed. The included gun is an air-cooled model (XR-Aluma-Pro).

CATALOGUE & SPEC SHEETS

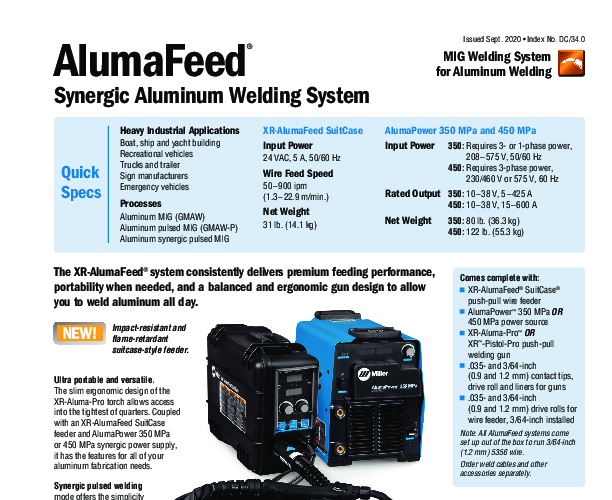

Spec Sheet
