Miller Big Blue 400 PipePro Stainless Diesel Welder with Wireless Remote

$48,749.57/ea $40,716.00/1 per ea only $40,716.00/eaSave 16%

Usually ships within 3-5 business days

OVERVIEW

The Pipeline Welder's Ultimate Tool

When you are out on the right-of-way, the last thing you want to do is walk hundreds of feet back to your truck just to tweak your amperage. The Miller Big Blue 400 PipePro (Mitsubishi) Stainless Steel edition solves this problem with the included Wireless Interface Control (WIC). This rugged remote gives you full command of your machine from the weld joint. You can switch from Stick to TIG, adjust your heat, and even crank the engine over or shut it down for lunch—all without breaking your workflow. It’s not just about convenience; it’s about saving your legs and getting more pipe in the ground every day.

Built for the Downhill Arc

Miller knows that pipeline welding requires a specific feel. The Big Blue 400 PipePro is tuned for superior downhill stick arc characteristics, giving you the control you need for critical root, fill, and cap passes. If you are running wire, the machine is ready for MIG, Flux-Cored, and RMD processes, especially when paired with an ArcReach feeder. The Dynamic DIG technology adapts to your technique, helping to prevent stuck rods and ensuring a buttery smooth arc even when the fit-up isn't perfect. With 400 amps at 100% duty cycle, this beast won't quit on you, no matter how hot the day gets or how long the bead is.

Rugged Construction for Tough Jobs

Pipeline jobs are notoriously hard on equipment. Mud, rain, salt, and impact are part of the daily grind. That is why this unit comes standard with a stainless steel enclosure and a Line-X top cover. You can throw your tools on top of it without worrying about scratching the paint, and the stainless body means it won't be a rust bucket in two years. The Mitsubishi S4L2 diesel engine is a workhorse, known worldwide for its reliability and long service intervals. Plus, with 12,000 watts of generator power, you have plenty of juice to run your grinders, bevelers, and lights. This is the machine built to work as hard as you do.

Additional Information
Brand:Miller
Amperage:400
Duty Cycle:100%
Watts:12000 W
Weld Process:Engine Drive
Packaging Description:1 of each
Engine Model:Mitsubishi S4L2 Diesel
Enclosure Material:Stainless Steel
Top Cover Material:Line-X Coated
Auxiliary Power:12,000 Watts Peak, 10,000 Watts Continuous
Process Type:Stick (SMAW), MIG (GMAW), Flux-cored (FCAW), RMD, Pulsed MIG (GMAW-P), DC TIG (GTAW), Air Carbon Arc (CAC-A)
Dimensions:32.00 in (H) x 26.25 in (W) x 56.00 in (L)
Weight:450.4 kg
Compliance:EPA Tier 4F

INCLUDED

  • Miller Big Blue 400 PipePro (Mitsubishi) Diesel Welder
  • Wireless Interface Control (WIC) Remote
  • Recharging Cord for WIC Remote
  • 120V Block Heater
  • Stainless Steel Enclosure
  • Line-X Top Cover
  • Owner's Manual

APPLICATIONS

  • Cross-Country Pipeline Construction
  • Process Pipe Welding
  • Heavy Industrial Fabrication
  • Maintenance and Repair Rigs
  • Structural Steel Work
  • Mining and Quarry Maintenance

FAQ

WIC is a handheld remote that allows you to fully control the welder from a distance. You can change processes, adjust parameters, select programs, and turn the engine on or off wirelessly.

No, welding leads are not included with the machine and must be purchased separately.

It is powered by a heavy-duty, low-speed Mitsubishi S4L2 four-cylinder industrial diesel engine that is EPA Tier 4F compliant.

The stainless steel enclosure provides superior resistance to rust and corrosion, extending the lifespan of the machine's body, especially in harsh outdoor environments.

Yes, the Big Blue 400 PipePro features built-in ArcReach technology, allowing communication with ArcReach wire feeders and remotes through the weld cables.

The machine provides 12,000 watts of peak single-phase auxiliary power and 10,000 watts of continuous power for running tools and lights.

Dynamic DIG uses a time-based algorithm to automatically adjust the short-clearing current, providing a smoother and more consistent arc tailored to the application.

It is rated for 400 Amps at 100% duty cycle, meaning it can run continuously at 400A without overheating.

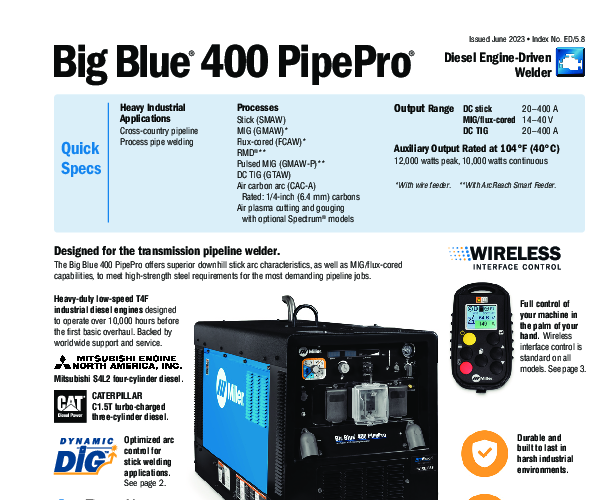

CATALOGUE & SPEC SHEETS

Spec Sheet
