907750003 - Miller Big Blue 600 Air Pak Deutz Diesel Welder Generator with WIC

Packaging: 1 per ea
$99,429.11/ea $89,357.63/1 per ea only $89,357.63/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Work Truck Welding Solution

Transform your welding rig with the Miller Big Blue 600 Air Pak (Deutz) W/ Wic, the all-in-one solution designed to maximize efficiency and capability on the road. This truck-mount model is engineered to replace multiple pieces of equipment, combining a top-tier welder, a powerful generator, and a heavy-duty air compressor into one compact footprint. By consolidating these tools, you reduce vehicle weight, save fuel, and lower maintenance costs, all while increasing the versatility of your service truck. Whether you are repairing heavy equipment in a mine or laying pipe in remote locations, the Big Blue 600 Air Pak ensures you have every tool you need right at your fingertips.

Control at Your Fingertips

Gone are the days of climbing in and out of the truck bed or walking hundreds of feet to adjust your welder settings. With the included Wireless Interface Control (WIC), you have complete command over the machine from right where you weld. Change processes, fine-tune voltage and amperage, and even shut down the engine remotely. This feature not only saves hours of wasted travel time over the course of a week but also reduces fatigue and job site hazards. Coupled with Miller's ArcReach® technology, which allows for parameter changes via the weld cable when using compatible feeders, this machine offers unparalleled convenience.

Power for Two

Maximize your crew's output with the Big Blue 600's dual-operator capability. Two welders can work independently off this single machine with up to 400 amps each, effectively doubling your productivity without the need for a second engine drive. When you need maximum power for heavy gouging or thick materials, the machine switches to single-operator mode to deliver the full 600 amps. The integrated rotary screw air compressor supports carbon arc gouging with up to 3/8-inch carbons and powers air tools with ease, making it a complete mobile fabrication shop.

Built to Last

Powered by a rugged Deutz T4F diesel engine, this welder is built to withstand the toughest environments. The industrial USB port allows for easy software updates and diagnostic downloads, helping you keep the machine running at peak performance. With features like the vandalism lockout kit and heavy-duty protective enclosure, your investment is secure. Choose the Big Blue 600 Air Pak for a welding solution that works as hard as you do.

Additional Information
Brand:Miller
Amperage:600
Weld Process:Engine Drive
Packaging Description:1 Per Ea
Process Type:Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), Submerged Arc (SAW), Air Carbon Arc Cutting and Gouging (CAC-A)
Engine Type:Deutz T4F Industrial Diesel
Air Compressor:Industrial Rotary Screw, 100 psi, 60 cfm
Output Range:Single Operator: Up to 600A, Dual Operator: Up to 400A each
Control Interface:Wireless Interface Control (WIC)
Portability:Truck Mount, Lift Eye
Auxiliary Power:20,000 watts 3-phase, 12,000 watts 1-phase
Dimensions:46.00 H x 28.50 W x 69.50 L (Inches)
Weight:2040 lbs

INCLUDED

  • Big Blue® 600 Air Pak™ (Deutz) Welder/Generator
  • Wireless Interface Control (WIC) Remote
  • Air Cleaner Restriction Indicators
  • FA-1D Lockable Flame Arrestor Fuel Cap
  • Spark Arrestor
  • Vandalism Lockout Kit

APPLICATIONS

  • Maintenance and Repair Rigs
  • Heavy Construction
  • Mining Maintenance
  • Railroad Maintenance
  • Cross-Country Pipe Welding
  • Structural Steel Work

FAQ

The Wireless Interface Control allows the operator to fully control the machine, including process changes and parameter adjustments, from a remote handheld unit. This saves time by eliminating trips to the machine and improves safety on the job site.

Yes, the Big Blue 600 Air Pak features a multi-arc system that supports two independent arcs with up to 400 amps each. It can also be used by a single operator with up to 600 amps of output.

It includes an industrial rotary screw air compressor designed for heavy-duty use, boasting a 30,000-hour life expectancy. It is ideal for powering air tools and carbon arc gouging.

This model (907750003) is powered by a heavy-duty, low-speed Deutz T4F industrial diesel engine.

Yes, it features ArcReach technology, which allows for remote parameter control via existing weld cables when used with compatible ArcReach wire feeders and remotes.

The unit measures 46.00 inches in height, 28.50 inches in width, and 69.50 inches in length. It weighs approximately 2,040 lbs.

Yes, the high amperage output and built-in air compressor make it excellent for carbon arc gouging applications.

Yes, it provides 20,000 watts of 3-phase power and 12,000 watts of 1-phase generator power for running job site tools and lights.

CATALOGUE & SPEC SHEETS

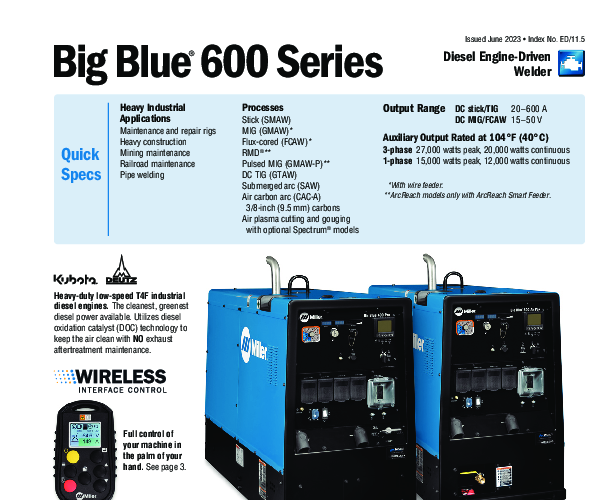

Spec Sheet
