907750004 - Miller Big Blue 600 Air Pak Deutz Diesel Welder with Compressor and Wireless Control

Packaging: 1 per ea
$109,177.30/ea $91,187.00/1 per ea only $91,187.00/eaSave 16%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Mobile Welding Workstation

For the professional welder who demands everything on their rig, the Miller Big Blue 600 Air Pak is the answer. This isn't just a welder; it's a power plant and air station rolled into one rugged package. Designed specifically for truck mounting, this model saves you the headache of climbing up onto the bed to make adjustments. All your critical controls are lowered for easy reach from the ground, making your day safer and more efficient.

Complete Control in Your Hand

Stop wasting time walking back and forth to your truck. With the included Wireless Interface Control, you have the power to start the engine, tweak your heat, and switch processes right from where you are welding. Whether you are up on structural steel or down in a trench, your settings are always within reach. This not only saves fuel by allowing you to shut down easily during breaks but also keeps you focused on the arc.

Power and Air to Spare

Need to gouge? The 600-amp output handles up to 3/8-inch carbons with ease. Need air? The built-in Ingersoll Rand rotary screw compressor delivers a reliable 60 CFM, perfect for powering air tools or plasma cutters without towing a separate compressor. Plus, with 20,000 watts of generator power, you can run your entire job site. The Big Blue 600 Air Pak is built to be the heart of your operation, delivering Miller's legendary reliability in the toughest environments.

Advanced Arc Performance

Experience smoother arcs with Miller's Dynamic DIG technology, which automatically adjusts current to clear shorts during stick welding. Whether you are running 7018 or 6010, the arc is consistent and tailored to your technique. Combined with ArcReach compatibility, this machine ensures you get the best weld quality possible, no matter how far your leads stretch.

Additional Information
Brand:Miller
Amperage:600
Weld Process:Engine Drive, Multi-Process
Watts:20000 W
Engine Model:Deutz TD2.9 L4 T4F
Compressor Type:Ingersoll Rand Rotary Screw
Compressor Output:60 CFM
Generator Output (3 Phase):20,000 Watts Continuous, 27,000 Watts Peak
Generator Output (1 Phase):12,000 Watts Continuous, 15,000 Watts Peak
Fuel Type:Diesel
Special Features:Wireless Interface Control, ArcReach Technology, Truck Mount Spec, Dynamic DIG
Packaging Description:1 per ea

INCLUDED

  • Big Blue 600 Air Pak Truck Mount Spec Welder/Generator
  • Wireless Interface Control (WIC) Handheld Remote
  • Users Manual

Note: Welding leads are not included.

APPLICATIONS

  • Heavy Construction and Structural Steel
  • Mining Maintenance and Repair
  • Cross-Country Pipeline Welding
  • Maintenance and Repair Rigs
  • Railroad Maintenance
  • Process Piping

FAQ

It features an Ingersoll Rand industrial rotary screw air compressor that delivers 60 CFM at 100 PSI with a 100% duty cycle.

No, welding leads are not included and must be purchased separately.

The Truck Mount Spec has critical controls located lower on the front panel, making them easily accessible for a ground-based operator when the machine is mounted on a truck bed.

It is a handheld remote that allows you to wirelessly start/stop the engine, adjust amperage/voltage, select programs, and change processes from the weld joint.

It provides 20,000 watts of continuous 3-phase power and 12,000 watts of continuous single-phase power.

No, the Deutz TD2.9 L4 T4F engine uses a Diesel Oxidation Catalyst (DOC) and does not require Diesel Exhaust Fluid (DEF) or DPF maintenance.

Yes, the Big Blue 600 Air Pak is rated for carbon arc gouging with carbons up to 3/8 inch in diameter.

ArcReach allows the power source to communicate with compatible wire feeders and remotes through the welding leads, eliminating the need for separate control cables.

CATALOGUE & SPEC SHEETS

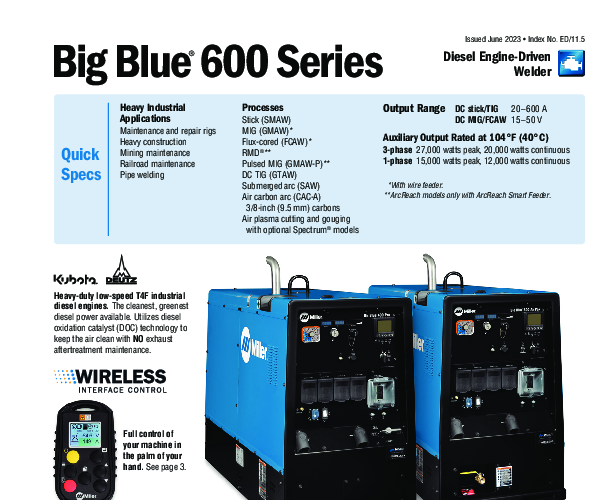

Spec Sheet
