907752003 - Miller Big Blue 800 Duo Air Pak Diesel Welder with Wireless Control

Packaging: 1 per ea
$113,066.90/ea $94,439.00/1 per ea only $94,439.00/eaSave 16%

Usually ships within 3-5 business days

OVERVIEW

Maximize Jobsite Productivity with the Big Blue 800 Duo Air Pak

Transform your mobile welding rig into a complete industrial power station with the Miller Big Blue 800 Duo Air Pak. This all-in-one solution is engineered to tackle the toughest jobs while maximizing efficiency and profitability. By combining a welder, generator, and air compressor, the Big Blue 800 Duo Air Pak reduces the number of machines you need to tow to the site, saving space on your truck and reducing maintenance costs.

Complete Control in the Palm of Your Hand

Time is money, and the Wireless Interface Control (WIC) puts time back in your pocket. With the included handheld remotes, you have full command of the Big Blue 800 from wherever you are on the jobsite. Need to switch from Stick to TIG? Adjust your amperage? Turn the machine off during a break? You can do it all wirelessly. This not only boosts productivity by cutting out unnecessary trips to the truck but also enhances safety by reducing jobsite movement. Plus, the ability to remotely shut down the engine means you save significantly on diesel fuel over the life of the machine.

Dual-Operator Efficiency

Why buy two machines when one can do the work? The Big Blue 800 Duo Air Pak features dual-operator capabilities, allowing two welders to work simultaneously with up to 400 amps each. The arcs are completely independent, meaning one operator's arc start won't affect the other's stability. This is ideal for training, large fabrication projects, or repair rigs where multiple hands are needed on deck. When you need raw power for gouging, simply flip a switch to combine the outputs for a massive 800 amps.

Advanced Arc Technology

Miller has packed this beast with their latest arc technologies. Dynamic DIG works on a time-based algorithm to automatically adjust current for clearing shorts, providing a smoother Stick welding experience tailored to your technique. ArcReach technology allows the power source to communicate with compatible wire feeders through the weld leads, eliminating fragile control cables. Whether you are pipe welding, repairing heavy equipment, or working on structural steel, the Big Blue 800 Duo Air Pak delivers the reliability and performance Miller is famous for.

Additional Information
Brand:Miller
Weld Process:Engine Drive
Amperage:800
Duty Cycle:100%
Watts:20000 W
Process Type:Stick (SMAW), MIG (GMAW), Flux Cored (FCAW), DC TIG (GTAW), Submerged Arc (SAW), Air Carbon Arc Gouging (CAC-A)
Engine Model:Deutz TD2.9 L4
Fuel Type:Diesel
Air Compressor:Ingersoll Rand 60 CFM Rotary Screw
Generator Output:27,000 Watts Peak, 20,000 Watts Continuous
Output Range:20 - 800 A (Single), 20 - 400 A (Dual)
Dimensions:46 in (H) x 28.5 in (W) x 69.5 in (L)
Weight:950.27 kg
Packaging Description:1 per ea

INCLUDED

  • Big Blue 800 Duo Air Pak (Deutz) Welder/Generator
  • 2 Wireless Interface Control Remotes
  • Ingersoll Rand 60 CFM Air Compressor (Integrated)
  • Vandalism Lockout Kit
  • 120V Block Heater
  • Users Manual

APPLICATIONS

  • Maintenance and Repair Rigs
  • Heavy Construction
  • Mining Maintenance
  • Railroad Maintenance
  • Structural Steel
  • Process Piping
  • Cross-Country Pipeline

FAQ

In single-operator mode, it provides up to 800 Amps. In dual-operator mode, it provides two independent arcs of up to 400 Amps each.

It features an Ingersoll Rand industrial rotary screw air compressor that delivers 60 CFM. It has a 30,000-hour life expectancy and independent on/off control.

Yes, it is ArcReach compatible, allowing for remote parameter control via existing weld cables when paired with ArcReach accessories.

WIC is a handheld remote system that allows full control of the machine, including process changes, parameter adjustments, and engine start/stop, from a distance.

It is powered by a heavy-duty, low-speed Deutz TD2.9 L4 liquid-cooled, turbo-charged diesel engine that is EPA Tier 4F compliant.

The generator provides 27,000 watts peak and 20,000 watts continuous 3-phase power, or 15,000 watts peak and 12,000 watts continuous 1-phase power.

No, the Deutz Tier 4F engine uses a Diesel Oxidation Catalyst (DOC) to meet emissions standards, so no exhaust aftertreatment maintenance or DEF is required.

Yes, the Big Blue 800 Duo Air Pak is rated for carbon arc gouging with up to 1/2-inch diameter carbons.

CATALOGUE & SPEC SHEETS

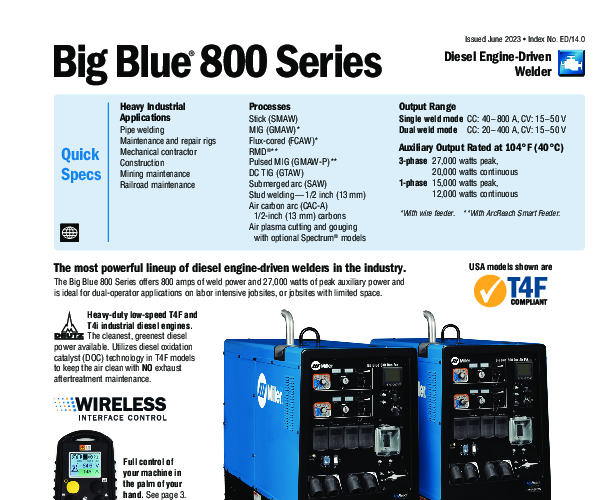

Spec Sheet
