Miller Bobcat 265 Engine Welder with Electric Fuel Pump & Remote Start

$14,002.05/ea $11,312.00/1 per ea only $11,312.00/eaSave 19%

Usually ships within 3-5 business days

OVERVIEW

The Legendary Bobcat, Redefined for the Modern Welder

Experience the next evolution of engine-driven welding with the Miller Bobcat 265 (907826003). This machine takes everything you loved about the Bobcat 250 and improves it, delivering a welder that is 13% smaller and over 100 pounds lighter. This compact footprint allows you to maximize the payload of your work truck, leaving more room for tools and materials. This model comes standard with Remote Start/Stop technology, putting control right in your pocket. You can turn the machine on or off from the weld joint, drastically reducing noise fatigue and fuel consumption throughout the day.

Advanced Technology & Ease of Use

Whether you are a seasoned pipe welder or a general contractor, the Bobcat 265 makes setup effortless with Miller's exclusive Auto-Set™ technology. Simply select your process and wire/electrode diameter, and the machine sets the optimal parameters for you. For those who prefer manual control, the digital interface allows for precise fine-tuning. The Electric Fuel Pump on this model ensures quick starts even in high-altitude conditions, eliminating the frustration of cold starts in thin air.

Versatility & Performance

The Bobcat 265 is a true multi-process beast, capable of Stick, MIG, Flux-Cored, and DC TIG welding. It features a dedicated 10-pin direct spool gun connection, making it plug-and-play ready for Spoolmate or Spoolmatic guns for aluminum projects. The arc performance is exceptionally smooth, with easy starts and minimal spatter on 7018 and 6010 electrodes. Plus, with 11,000 watts of generator power, it serves as a reliable backup power source for your home or farm. Backed by Miller's True Blue® 3-Year Warranty, the Bobcat 265 is an investment in productivity and peace of mind.

Additional Information
Brand:Miller
Amperage:265
Watts:11000 W
Duty Cycle:100%
Weld Process:Engine Drive, Multi-Process
Engine Brand:Kohler
Fuel Type:Gasoline
Process Type:Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), Air Carbon Arc (CAC-A)
Engine Model:Kohler CH730
Horsepower:23.5 hp
Fuel Capacity:11 Gallon
Auxiliary Power:11,000 Watts Peak, 9,500 Watts Continuous
Dimensions:26.5 H x 20.13 W x 37.06 L in
Weight:382 lb
Portability:Lift Eye (Standard), Running Gear (Optional)
Packaging Description:1 per ea

INCLUDED

  • Miller Bobcat 265 (Kohler) Engine-Driven Welder
  • Remote Control Fob (for Remote Start/Stop)
  • Electric Fuel Pump (Installed)
  • Owner's Manual
  • Note: Welding leads and running gear sold separately

APPLICATIONS

  • Maintenance & Repair (MRO): Ideal for field repairs on heavy equipment and plant infrastructure.
  • Construction & Fabrication: Structural steel welding and on-site fabrication.
  • Farm & Ranch: Portable power and welding for agricultural equipment repair.
  • Work Trucks: Compact size saves space and payload on service vehicles.
  • High Altitude Operations: Electric fuel pump ensures reliability above 5,000 ft.

FAQ

The electric fuel pump is designed to improve engine starting and performance at high altitudes (typically above 5,000 ft) where standard mechanical pumps might struggle with vapor lock.

Yes, this specific SKU (907826003) includes the Remote Start/Stop functionality and the necessary remote control fob.

The Bobcat 265 is rated at 100% duty cycle at 265 Amps (27 Volts), allowing for continuous welding at maximum output.

Yes, the machine provides full auxiliary power (11,000 watts peak) with no arc interference, so you can run tools and weld simultaneously.

The Bobcat 265 is over 100 pounds lighter and approximately 13% smaller than the legacy Bobcat 250 models.

No, the Bobcat 265 features a direct 10-pin connection that is compatible with Spoolmate and Spoolmatic spool guns without requiring a WC-24 control.

It is powered by a twin-cylinder Kohler CH730 gasoline engine producing 23.5 horsepower.

No, welding leads (cables) are sold separately and are not included in the standard package.

CATALOGUE & SPEC SHEETS

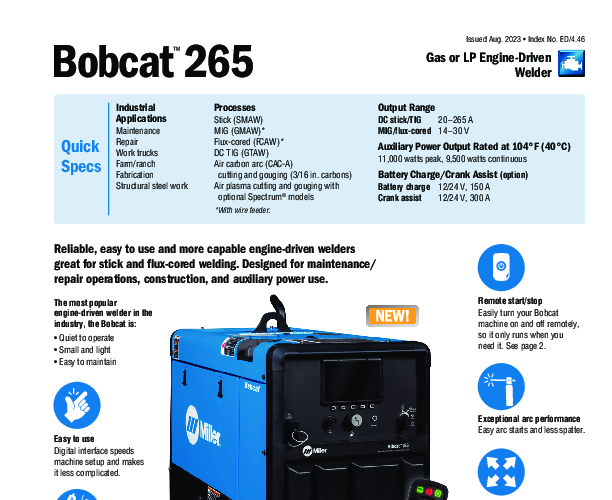

Spec Sheet
