Miller AlumaFeed 350 MIGRunner Package with Water-Cooled XR-Pistol Pro

$37,026.02/ea $33,433.00/1 per ea only $33,433.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Achieve TIG Aesthetics with MIG Speed

Take your aluminum welding projects to the next level with the Miller AlumaFeed 350 MIGRunner. This all-in-one package is the ultimate solution for welders who demand the speed of MIG welding but desire the precision and appearance of TIG. The included Profile Pulse technology allows you to create the classic "stacked dime" weld bead appearance without any gun manipulation or back-stepping. By automatically adjusting the pulse frequency, you can customize the ripple pattern spacing to achieve a flawless finish every time.

Reliable Feeding for Soft Wire

Frustrated with bird-nesting and inconsistent wire feeding when welding aluminum? The AlumaFeed 350 system solves this with its synchronized push-pull technology. The XR-AlumaFeed Suitcase feeder works in perfect harmony with the XR-Pistol Pro gun to deliver wire smoothly and consistently, even at distances of up to 25 feet. The water-cooled gun design ensures you can weld for longer periods without the equipment overheating, keeping you productive all day long. The gun's ergonomic handle and balanced weight distribution mean less strain on your wrist during long shifts.

Smart Technology for Easy Setup

Setting up for aluminum has never been easier thanks to Synergic Pulsed MIG capabilities. Simply set your wire feed speed, and the AlumaPower 350 MPa automatically adjusts the voltage and amperage to match. This single-knob control simplifies the learning curve and ensures optimal parameters. Additionally, the Hot Start and Crater features help eliminate common defects like incomplete fusion at the start of a weld or cracking at the end. Whether you are building boats, trailers, or signs, this MIGRunner package gives you the power, portability, and precision needed for professional results.

Additional Information
Brand:Miller
Voltage:208/230/460/575 V
Amperage:350
Weld Process:MIG (GMAW)
Machine Cart:Mig Runner
Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), Synergic Pulsed MIG
Input Voltage:208-575 V
Cooling Type:Water-Cooled
Portability:MIGRunner Cart, Portable Feeder
Applications:Aluminum Fabrication, Shipbuilding, Transportation
Included Accessories:Coolmate 3, XR-Pistol Pro Gun, Cart, Regulator
Packaging Description:1 per ea

INCLUDED

  • XR-AlumaFeed Suitcase push-pull wire feeder
  • AlumaPower 350 MPa welder with 115 volt auxiliary power
  • XR-Pistol push-pull 25ft water-cooled MIG gun
  • Coolmate 3 water cooler
  • .035 and 3/64 in (0.9 and 1.2 mm) contact tips and liners for gun
  • .035 and 3/64 in (0.9 and 1.2 mm) drive rolls for wire feeder
  • MIGRunner cart
  • Smith flowmeter/regulator
  • 10 ft. gas hose
  • 10 ft. 4/0 feeder weld cable with Dinse connector and lug
  • 15 ft. work cable with Dinse connector and 600 amp C-clamp
  • 1/16 inch liner and wire kit

APPLICATIONS

  • Aluminum Ship and Boat Building
  • Automotive Manufacturing
  • Commercial Truck and Trailer Fabrication
  • Sign Manufacturing
  • Aerospace Components
  • Emergency Vehicle Fabrication
  • Recreational Vehicle (RV) Construction

FAQ

Profile Pulse provides the cosmetic appearance of TIG welding with the simplicity and speed of MIG welding. It allows you to achieve a 'stacked dime' weld bead pattern without back-stepping or gun manipulation.

Yes, the AlumaPower 350 MPa features Auto-Line Power Management, allowing for any input voltage hook-up from 208V to 575V (1 or 3-phase) with no manual linking required.

A push-pull system, like the one in the XR-AlumaFeed and XR-Pistol, mechanically drives the wire from both the feeder and the gun. This ensures consistent feeding of soft aluminum wire over long distances and prevents bird-nesting.

Yes, this MIGRunner package (951835) includes the Coolmate 3 water cooler to support the water-cooled XR-Pistol Pro gun.

While the AlumaPower 350 MPa is a capable power source, this specific package is optimized and equipped for aluminum welding. The built-in pulsed programs are specifically for aluminum wire.

The package comes with a 25-foot water-cooled XR-Pistol Pro push-pull gun.

Synergic Pulsed MIG allows for single-knob control where the machine automatically selects the correct voltage and amperage based on the wire feed speed set by the operator.

The built-in pulsed MIG programs automatically set optimal parameters for commonly used aluminum alloys, such as 4000 and 5000 Series, with wire diameters up to 1/16 inch.

CATALOGUE & SPEC SHEETS

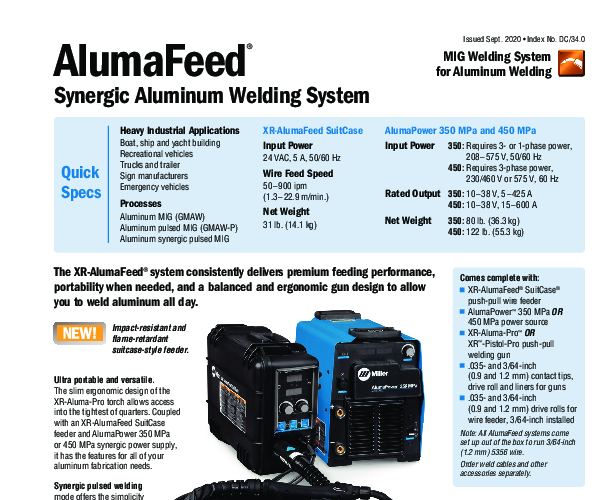

Spec Sheet
