Miller Trailblazer 330 Welder Generator Kohler Engine 907831

$16,536.84/ea $13,361.00/1 per ea only $13,361.00/eaSave 19%

Usually ships within 3-5 business days

OVERVIEW

The Legend Continues: Smoother, Smaller, Smarter

For professional welders who demand the absolute best arc performance in the field, the Miller Trailblazer 330 is the machine you've been waiting for. Miller has refined their legendary Trailblazer series to deliver an arc that is smoother and more stable than ever before, whether you are running Stick, MIG, or DC TIG. The 907831 model with the Kohler engine isn't just a power source; it's a precision instrument designed to make your job easier and your welds better. With the new Digital Auto-Set™ interface, setting up your machine is faster and more accurate, letting you jump straight into the work with confidence.

Stick welders will appreciate the Dynamic DIG™ technology, which goes beyond simple arc force control. It uses a time-based algorithm to automatically adjust the current required to clear a short, providing a consistent arc that adapts to your technique and fit-up. For TIG welders, the QuietPulse™ feature is a game-changer, optimizing the DC TIG pulse wave-shape to give you excellent puddle control while significantly reducing the annoying buzzing noise associated with traditional pulsing. And if you do wire welding, the direct spool gun connection makes hooking up a Spoolmatic or Spoolmate 200 simple and reliable, with no extra control boxes required.

Beyond the arc, the Trailblazer 330 is built for the reality of the job site. It is significantly lighter and smaller than previous models, making it easier to maneuver and leaving you more room in your truck for your tools and materials. The Auto-Speed™ technology keeps the noise down, making for a safer and more pleasant work environment, while also saving you trips to the gas station. Plus, with ArcReach® built-in, you can change your amperage or voltage right from your wire feeder or remote without walking back to the truck. This machine is built to keep you welding, not walking.

Additional Information
Brand:Miller
Amperage:330
Watts:12000 W
Weld Process:Engine Drive, Multi-Process
Duty Cycle:100%
Voltage:n/a
Engine Manufacturer:Kohler
Engine Type:Gasoline
Horsepower:23.5 hp
Process Type:Multi-Process, Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), Air Carbon Arc (CAC-A)
Generator Power:12,000 Watts Peak, 10,500 Watts Continuous
Weight:400 lb
Fuel Capacity:11 Gallon
Cooling Type:Air Cooled
Dimensions:26.5 in x 20.13 in x 37.06 in
Packaging Description:1 per ea

INCLUDED

  • Miller Trailblazer 330 Base Model with Kohler Motor (907831)
  • Owner's Manual

Note: Weld leads are not included and must be purchased separately.

APPLICATIONS

  • Industrial Fabrication
  • Maintenance and Repair
  • Structural Steel Work
  • Sheet Metal
  • Pipe Welding
  • Mobile Fabrication

FAQ

Auto-Speed automatically adjusts the engine RPM to match the load requirements. This reduces fuel consumption, lowers noise levels, and extends the life of the engine by not running at full speed when it isn't necessary.

No, weld leads are not included with the base model 907831 and must be purchased separately based on your specific length and amperage requirements.

Yes, the Trailblazer 330 features built-in ArcReach technology, allowing it to communicate with ArcReach wire feeders and remotes through the weld cables, eliminating the need for control cords.

The machine provides 12,000 watts of peak auxiliary power and 10,500 watts of continuous power for running tools and lights.

The Trailblazer 330 weighs approximately 400 lbs, which is over 80 lbs lighter than previous models, improving portability and payload capacity.

This model (907831) is equipped with a 23.5 HP Kohler gasoline engine.

Yes, it supports DC TIG welding and features Lift-Arc ignition and QuietPulse technology for optimized TIG performance.

Yes, it has a direct connection for Miller Spoolmatic series and Spoolmate 200 spool guns, eliminating the need for a WC-24 weld control.

CATALOGUE & SPEC SHEETS

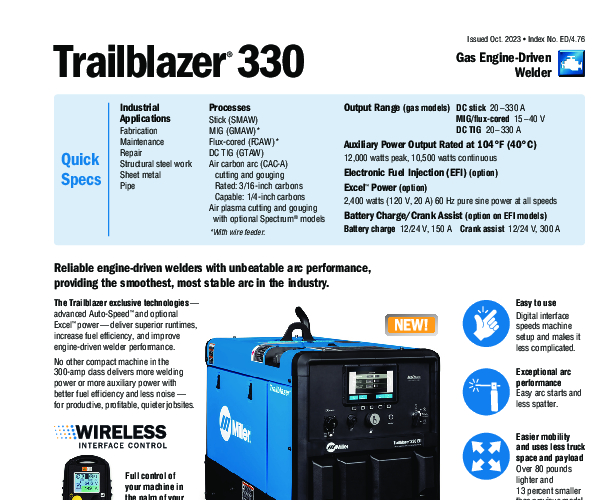

Spec Sheet
