Miller Trailblazer 330 Diesel Welder Generator with WIC and Excel Power

$33,603.59/ea $28,472.00/1 per ea only $28,472.00/eaSave 15%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Mobile Welding Workhorse

Take command of your job site with the Miller Trailblazer 330 Diesel, a machine built to keep you welding longer, quieter, and more profitably. This isn't just a power source; it's a complete mobile fabrication station powered by a legendary Kubota diesel engine. Designed for the professional who demands reliability and convenience, this model comes fully loaded with Excel Power and the game-changing Wireless Interface Control (WIC). It is the perfect solution for construction, pipe welding, and fleet maintenance where downtime is not an option.

Control in the Palm of Your Hand

Imagine being 300 feet away on a structural beam or deep in a trench and needing to fine-tune your voltage or switch from Stick to TIG. With the Wireless Interface Control, you no longer have to make the long, dangerous walk back to the truck. You simply grab the remote from your pocket to adjust parameters, select programs, or even shut the machine down to save fuel during breaks. This feature alone saves hours of walking time per week, keeping your arc on time and your project on budget.

Quiet Power that Saves Money

Fuel costs and noise fatigue are the enemies of a productive day. The Trailblazer 330 fights back with Auto-Speed technology and Excel Power. While other welders roar at 3600 RPM just to power a grinder, this machine gives you 2400 watts of clean 120V power right at idle. You can grind, drill, and light up your workspace while the engine purrs quietly. This means less refueling, less noise complaints in residential areas, and a more comfortable environment for your crew.

Unbeatable Arc Performance

When it comes to laying down beads, Miller delivers the smoothness you trust. Whether you are running 7018 rod or precision TIG, features like Dynamic DIG and QuietPulse ensure your puddle is controllable and consistent. The arc is buttery smooth with minimal spatter, reducing cleanup time. Plus, the machine is lighter and smaller than many competitors, leaving you more payload capacity in your truck for the tools and materials that pay the bills. With the Trailblazer 330 Diesel, you are ready for anything the job throws at you.

Additional Information
Brand:Miller
Amperage:330
Watts:12000 W
Duty Cycle:100%
Weld Process:Engine Drive, Multi-Process
Voltage:n/a
Engine Brand:Kubota
Fuel Type:Diesel
Horsepower:24.8 hp
Generator Output (Continuous):10,500 W
Generator Output (Peak):12,000 W
Weight:277 kg
Cooling:Liquid Cooled Engine
Process Type:Stick (SMAW), MIG (GMAW), Flux Cored (FCAW), DC TIG (GTAW), Air Carbon Arc (CAC-A)
Packaging Description:1 per ea

INCLUDED

  • Miller Trailblazer 330 Diesel Engine Driven Welder
  • Wireless Interface Control (WIC) Remote
  • Excel Power Module (Installed)
  • Kubota D902 Diesel Engine

Note: Welding leads and battery are not included.

APPLICATIONS

  • Structural Steel Fabrication
  • Maintenance and Repair Operations (MRO)
  • Mobile Fabrication
  • Pipe Welding
  • Construction Sites
  • Railcar Maintenance
  • Heavy Equipment Repair

FAQ

Excel Power allows the machine to provide 2,400 watts of 120V auxiliary power while the engine is at idle (1,800 RPM). This significantly reduces fuel consumption and noise when running tools like grinders or lights, as the engine doesn't need to ramp up to high speed.

The WIC is a handheld remote that connects wirelessly to the welder. It allows you to change processes, adjust voltage/amperage, select presets, and turn the engine on or off from up to 300 feet away, eliminating the need to walk back to the machine.

This model is equipped with a liquid-cooled Kubota D902 diesel engine, rated at 24.8 horsepower. It is known for its reliability, fuel efficiency, and compliance with Tier 4 Final emission standards.

Yes, the Trailblazer 330 features a Direct Spool Gun Connection, allowing you to plug a Spoolmatic or Spoolmate gun directly into the machine without needing an external control box (like the WC-24).

The machine provides 12,000 watts of peak power and 10,500 watts of continuous power. The generator system is independent of the weld output, ensuring no interaction between arc stability and auxiliary tools.

Auto-Speed automatically adjusts the engine RPM to the lowest speed required for the current load. This contrasts with traditional welders that often run at full speed regardless of the load, resulting in fuel savings and quieter operation.

Yes, ArcReach technology is standard. This allows the power source to communicate with ArcReach wire feeders and remotes through the welding leads, eliminating the need for separate control cables.

The unit measures 32.41 inches in height, 20.60 inches in width, and 45.72 inches in length. It weighs approximately 611 lbs (277 kg), making it compact and relatively lightweight for its class.

CATALOGUE & SPEC SHEETS

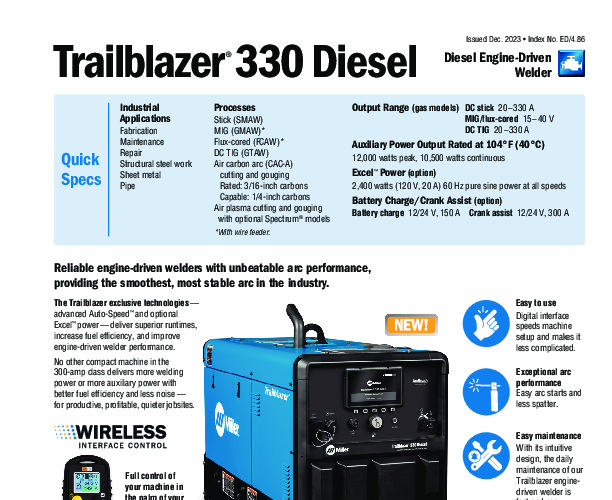

Spec Sheet
