Miller Millermatic 252 High Voltage MIG Welder with Spoolmatic 30A Package

$11,825.31/ea $10,072.00/1 of each only $10,072.00/eaSave 15%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate All-in-One Aluminum & Steel Workhorse

Take your fabrication shop to the next level with the Millermatic 252 MIG Welder package, specifically curated for welders who need to tackle aluminum as seriously as they do steel. This isn't just a welder; it's a complete fabrication station. With the included Spoolmatic 30A spool gun and a dual cylinder rack, you can have your C25 gas set up for steel on one side and pure Argon for aluminum on the other, ready to switch at a moment's notice. Miller's exclusive Auto Gun Detect technology does the thinking for you—simply pull the trigger on either the main MIG gun or the spool gun, and the machine instantly recalls your last voltage and wire speed settings for that specific tool.

Power and precision meet in the Millermatic 252. You get a massive 300 amps of power to weld up to 1/2-inch steel or 3/8-inch aluminum in a single pass. The interface is designed for clarity and speed, featuring a large digital display that lets you preset voltage and wire feed speed with exact precision. No more guessing; you get the exact arc you need every time. The Fan-On-Demand cooling system keeps the shop quiet and the machine clean by only running the fan when necessary, reducing the amount of shop dust pulled into the internal components.

Comfort and convenience are built into every inch of this rig. The EZ-Change Low Cylinder Rack saves your back by allowing you to roll cylinders on and off without lifting, while the EZ-Access consumable compartment keeps your contact tips and drive rolls right where you need them. Whether you are building custom truck beds, repairing farm equipment, or running a production line, this high-voltage Millermatic 252 package delivers the reliability and versatility that professional welders demand from the Miller Blue brand.

Additional Information
Brand:Miller
Amperage:300
Voltage:230/460/575 V
Weld Process:MIG (GMAW)
Duty Cycle:40%, 60%
Packaging Description:1 of each
Process Type:MIG (GMAW), Flux Cored (FCAW)
Input Voltage:230 V, 460 V, 575 V
Input Phase:1-Phase
Amperage Range:30 A - 300 A
Wire Feed Speed Range:50 - 700 IPM (1.3 - 17.8 m/min)
Max Open Circuit Voltage:38 VDC
Weldable Metals:Aluminum, Stainless Steel, Steel
Dimensions:30 in (H) x 19 in (W) x 40 in (D)
Weight:205 lb (93 kg)
Warranty:Miller True Blue 3 Year Warranty

INCLUDED

  • Millermatic 252 Power Source (High Voltage 230/460/575 V)
  • Spoolmatic 30A Spool Gun (130831) with 30 ft cable
  • 15 ft (4.6 m) 250-amp MDX-250 MIG gun with AccuLock MDX consumables
  • 10 ft (3 m) work cable with clamp
  • 10 ft (3 m) industrial power cord (plug not included for HV models)
  • Two Argon mix regulator/flow gauges with one gas hose
  • EZ-Change Dual Cylinder Rack with Elevated Gun and Cable Rack
  • .030/.035 in reversible drive rolls
  • Extra contact tips

APPLICATIONS

  • Metal Fabrication
  • Maintenance and Repair
  • Farm and Ranch
  • Light Industrial Applications
  • Structural Steel Work
  • Aluminum Fabrication
  • Manufacturing

FAQ

This is the High Voltage model (SKU 951961), which accepts 230, 460, or 575 Volts, 1-Phase input power.

Yes, this package includes the Spoolmatic 30A spool gun (130831) with a 30-foot cable, specifically designed for aluminum welding.

The rated duty cycle is 40% at 250 Amps (28 VDC) and 60% at 200 Amps (24 VDC).

Auto Gun Detect allows the operator to simply pull the trigger on either the MIG gun or the spool gun. The machine automatically detects which gun is active and recalls the specific voltage and wire feed speed settings last used for that gun.

The Millermatic 252 can weld mild steel up to 1/2 inch (13 mm) thick and aluminum up to 3/8 inch (9.5 mm) thick.

Yes, the Millermatic 252 features a direct connection for XR push-pull guns, allowing for professional aluminum wire feeding without needing an extra control module.

Yes, it includes two Argon mix regulator/flow gauges and one gas hose, allowing you to set up multiple gas cylinders on the dual rack.

The wire feed speed is adjustable from 50 to 700 IPM (1.3 to 17.8 m/min).

CATALOGUE & SPEC SHEETS

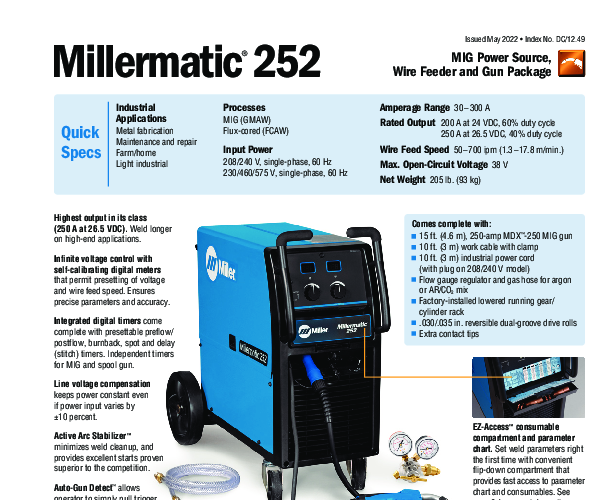

Spec Sheet
