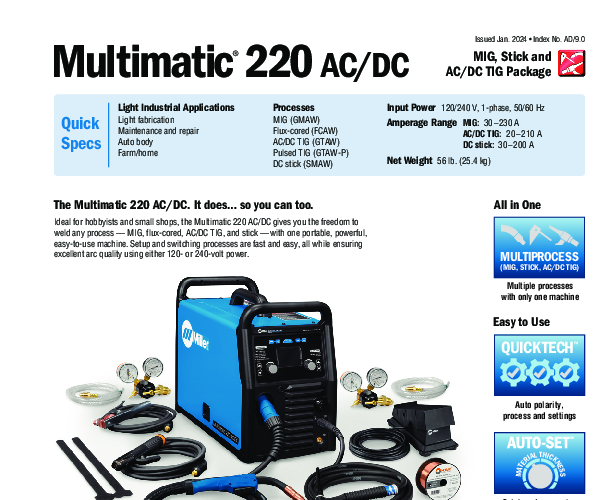

951000070 - Miller Multimatic 220 AC/DC Package with Dual Cylinder Cart

Technical Specifications and Performance

The Miller Multimatic 220 AC/DC (Stock Number 951000070) represents a significant advancement in light-industrial multiprocess welding technology, integrating MIG (GMAW), Flux-Cored (FCAW), DC Stick (SMAW), and AC/DC TIG (GTAW) into a compact inverter-based power source. This specific SKU includes the Miller Dual Cylinder Rack Cart (951770), designed to accommodate two gas cylinders (up to 7-inch diameter each), addressing the logistical challenge of managing distinct shielding gases for MIG and TIG processes simultaneously.

Process Capabilities and Output

The power source delivers a versatile amperage range of 20–230 A. On 240V input, it provides a rated output of 200 A at 24 V (20% duty cycle) for MIG, and 210 A at 18.4 V (20% duty cycle) for TIG. The machine features two dedicated gas solenoid valves and inputs, allowing both 100% Argon and Argon/CO2 mix to remain connected. The QuickTech microprocessor control monitors trigger and foot pedal inputs to automatically switch the active process, polarity, and gas channel, eliminating the need for manual cable swapping or menu navigation between process changes.

Advanced TIG Controls

Unlike standard multiprocess units, the Multimatic 220 offers comprehensive TIG wave-shaping controls essential for precision fabrication:

• AC Balance: Adjustable from 60-80% to control oxide cleaning versus penetration.
• AC Frequency: Adjustable from 60-150 Hz to tailor arc cone width and directional control.
• DC Pulse: Adjustable up to 150 PPS (Pulses Per Second) for heat input management on thin materials.
• Arc Start: Features both Lift-Arc and High-Frequency (HF) non-contact starting for contamination-free tungsten ignition.

Connectivity and Compatibility

The unit is equipped with a standard 14-pin amphenol connector, ensuring compatibility with a wide range of Miller remote controls, including the included RFCS-14 HD foot pedal and optional wireless remotes. The wire drive system utilizes an angled, cast-aluminum drive assembly with the Quick Select drive roll system, supporting .024, .030, and .035-inch solid wires as well as flux-cored options. The machine is generator compatible, requiring a minimum of 10,000 Watts (10 kW) of clean power for full output stability.
