951732 - Miller ArcReach SuitCase 12 Feeder with Bernard PipeWorx 300 Gun Package

Packaging: 1 PER EA
$8,719.18/ea $7,869.00/1 PER EA only $7,869.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Total Control Where You Weld

Stop wasting hours of your day walking back and forth to your power source. The Miller ArcReach® SuitCase® 12 Wire Feeder Package (951732) puts the control right where you need it—at the weld joint. With built-in ArcReach® technology, you can adjust your voltage and wire feed speed directly on the feeder's front panel. The best part? You don't need any fragile control cords. The signals travel directly through your existing weld cables, giving you full remote control even if your power source is hundreds of feet away or down several flights of stairs.

We know that long leads can kill your arc quality due to voltage drop. That's why Miller included Cable Length Compensation (CLC™). You simply set your desired voltage, and the machine automatically calculates and adjusts the output to ensure you get exactly that voltage at the gun. No more guessing or compensating manually. The digital meters feature SunVision™ technology, making them bright and easy to read even in direct sunlight, so you can verify your settings with a quick glance.

This feeder is built like a tank to survive the real world. The case is flame-retardant and impact-resistant, ready to be dragged across decks and floors. Inside, the electronics are potted to seal out dirt, moisture, and grinding dust. This package comes ready to work with a Bernard™ PipeWorx 300-15 MIG Gun, a favorite among pros for its comfort and reliability. With features like a trigger hold, wire jog, and gas purge right on the front panel, the SuitCase® 12 makes setup fast and welding easier. Upgrade your rig and keep your arc on longer.

Additional Information
Brand:Miller
Weld Process:Wire Feeder
Packaging Description:1 of 1
Voltage:n/a
Process Type:MIG (GMAW), Flux Cored (FCAW)
Input Power:14-48 VDC, 110 VDC Max OCV
Amperage Range:5 - 425 A
Included Gun:Bernard PipeWorx 300-15 MIG Gun
Spool Capacity:12 inch, 8 inch
Weight:35 lb
Dimensions:15.5 H x 9.0 W x 21.0 L (inches)
Amperage:n/a
Duty Cycle:N/A

INCLUDED

  • Miller ArcReach® SuitCase® 12 Wire Feeder
  • Bernard™ PipeWorx 300-15 MIG Gun (15 ft)
  • .045 - 1/16 reversible dual VK drive rolls
  • CENTERFIRE contact tips: .045 (Qty 3), .052 (Qty 2)
  • User Manual

APPLICATIONS

  • Shipbuilding and Marine Construction
  • Structural Steel Fabrication
  • Heavy Manufacturing
  • Construction Sites
  • Rental Fleets
  • Field Maintenance and Repair

FAQ

ArcReach technology allows the wire feeder to communicate with the power source through the weld cables, enabling remote parameter adjustments without extra control cords.

No, when used with an ArcReach-compatible power source, it uses the weld cables for communication. It can also operate as a standard voltage-sensing feeder.

CLC automatically adjusts the power source voltage to compensate for the voltage drop caused by long weld cables, ensuring the set voltage matches the arc voltage.

This package includes the Bernard™ PipeWorx 300-15 MIG Gun, rated for 300 amps with a 15-foot cable.

The SuitCase 12 is sized to accommodate both 8-inch and 12-inch wire spools.

While not submersible, the main circuit board is potted and trayed to protect against moisture, and the case is designed to resist rain and dust in harsh environments.

The feeder operates on an input voltage of 14 to 48 VDC (Open Circuit Voltage up to 110 VDC).

Yes, the SuitCase 12 is capable of running both solid MIG wire and Flux-Cored (FCAW) wire.

CATALOGUE & SPEC SHEETS

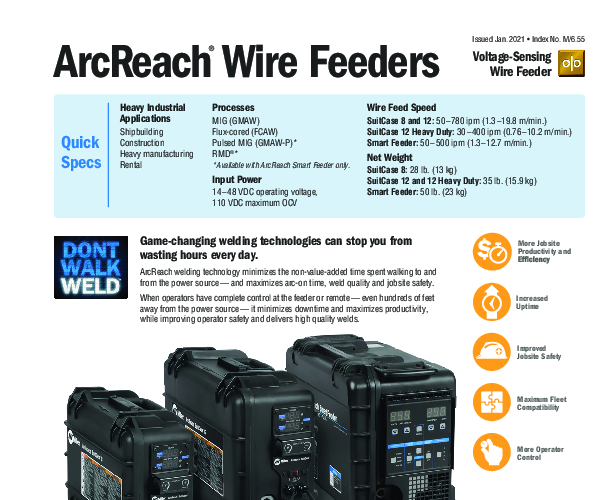

Spec Sheet
