951500 - Miller Invision 352 MPa MIGRunner Package with Dual 74 MPa Plus Feeder

Packaging: 1 PER EA
$37,649.37/ea $33,996.00/1 PER EA only $33,996.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Pulsed MIG Solution for Professional Welders

Take your welding fabrication to the next level with the Miller Invision 352 MPa MIGRunner Package. This isn't just a welder; it's a complete industrial workstation designed to make your job easier and your welds look better. If you work with both steel and aluminum, or frequently switch between wire sizes, the included Dual 74 MPa Plus Feeder is a game-changer. It allows you to keep two different wires ready to go at all times, complete with two dedicated Bernard BTB 400A guns. No more wasting time swapping spools and drive rolls in the middle of a project—just grab the other gun and keep welding.

The Invision 352 MPa is packed with technology that makes you look like a pro. Have you ever wanted that perfect "stacked dimes" look of a TIG weld but need the speed of MIG? Miller's exclusive Profile Pulse™ technology makes it possible. It pulses the arc to create a ripple pattern that mimics TIG welding, all while you weld with the ease of a standard MIG gun. Plus, with Synergic Pulsed MIG, the machine does the heavy lifting on settings. You adjust the wire speed, and the Invision automatically adjusts the pulse parameters to match, ensuring a stable, spatter-free arc every time.

Worried about power hookups? Don't be. With Auto-Line™ technology, this machine accepts any input power from 208 to 575 volts, single or three-phase. It handles dirty power from generators with ease, making it perfect for both the shop floor and the job site. The SharpArc® technology gives you fine control over the puddle fluidity, allowing you to dial in the perfect bead profile for any joint. This package (951500) comes fully loaded with the power source, dual feeder, running gear, cylinder rack, and all necessary cables. It is the ideal solution for manufacturing, shipbuilding, and heavy equipment repair where performance and versatility are non-negotiable.

Additional Information
Brand:Miller
Voltage:208-575 V
Amperage:350
Weld Process:MIG (GMAW)
Duty Cycle:60%
Machine Cart:Mig Runner
Packaging Description:1 of 1
Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), Flux Cored (FCAW)
Input Voltage:208-575 VAC
Input Phase:1-Phase, 3-Phase
Amperage Range:5 - 425 A
Rated Output:350 A at 34 VDC, 60% Duty Cycle
Max Open Circuit Voltage:75 VDC
Dimensions:17.00 in (H) x 12.50 in (W) x 24.00 in (D)
Net Weight:80 lb (Power Source Only)
Warranty:3 Years True Blue Warranty

INCLUDED

  • Invision 352 MPa Power Source
  • Dual 74 MPa Plus Wire Feeder
  • (2) Bernard BTB 400 A MIG Guns (15 ft)
  • Centerfire contact tips (.035 qty 3, .045 qty 2)
  • .035-.045 reversible dual V drive rolls (2 sets)
  • Running gear / Cylinder rack
  • 4/0 weld cables
  • Gas valve and gas hose

APPLICATIONS

  • Heavy Equipment Manufacturing
  • Railcar Construction and Repair
  • Shipbuilding and Marine Fabrication
  • Aerospace Components
  • General Construction and Infrastructure
  • Aluminum Boat and Yacht Manufacturing
  • High Purity Processing
  • Truck and Trailer Manufacturing

FAQ

The dual feeder allows you to mount two different types or sizes of wire simultaneously (e.g., aluminum on one side, steel on the other), reducing downtime associated with changing spools and drive rolls.

Yes, the Auto-Line™ technology allows for connection to single- or three-phase power from 208 to 575 VAC.

Profile Pulse™ is a feature that modulates the output to create a TIG-like ripple pattern ("stacked dimes") using the MIG process, improving bead appearance without complex gun manipulation.

Yes, the Invision 352 MPa is optimized for aluminum. The package includes a dual feeder, and for best results, it is compatible with XR-Pistol Plus and XR-Aluma-Pro Plus push-pull guns (sold separately for push-pull configuration, though standard guns are included).

The machine has an amperage range of 5 to 425 Amps.

The package includes the Invision 352 MPa power source, Dual 74 MPa Plus feeder, two Bernard BTB 400A guns, running gear, cylinder rack, and 4/0 weld cables.

The Invision 352 MPa is primarily designed for MIG and Pulsed MIG applications. For multiprocess capabilities including Stick and TIG, the XMT series is typically recommended, although the Invision provides superior MIG arc characteristics.

SharpArc® allows the welder to fine-tune the fluidity of the weld puddle in Pulsed MIG mode, helping to control the bead profile and edge wetting.

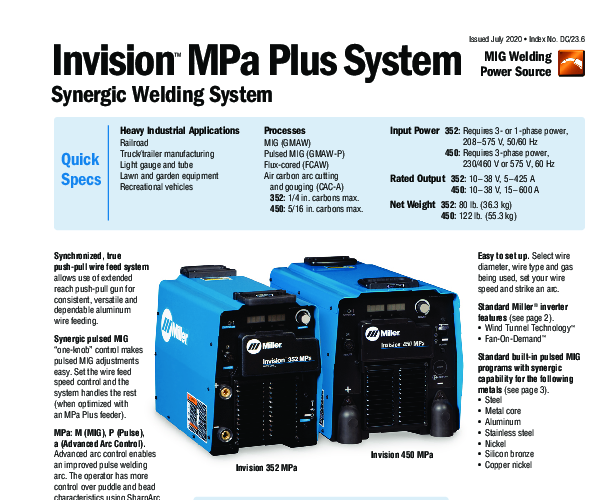

CATALOGUE & SPEC SHEETS

Spec Sheet
