Lincoln POWER MIG 360MP Aluminum One-Pak Auto Repair Welder

$20,613.71/ea $18,276.00/1 Per Ea only $18,276.00/eaSave 11%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Aluminum Repair Station

Upgrade your shop's capabilities with the Lincoln POWER MIG 360MP Aluminum One-Pak, the machine that takes the guesswork out of welding. Designed with the professional automotive repair technician in mind, this package comes fully loaded with everything you need to tackle complex aluminum jobs right out of the crate. Whether you are repairing a truck bed, a structural panel, or fabricating custom parts, the 360MP delivers industrial-grade performance with an interface that is incredibly easy to use.

Why Choose the 360MP One-Pak?

Aluminum welding can be challenging, but the 360MP makes it simple. The included Magnum® PRO AL Push-Pull Gun is a game-changer, providing smooth, reliable wire feeding that standard MIG guns simply can't match. Combined with the exclusive Pulse-on-Pulse® technology, you can achieve beautiful, TIG-quality beads with the speed of MIG welding. This means faster repairs, less rework, and happier customers.

Smart Technology for Better Welds

Forget about struggling with complicated settings. The massive 7-inch color display guides you through the setup process with the Ready.Set.Weld.® system. Simply select your material, thickness, and wire size, and the machine sets the ideal parameters for you. The ArcFX™ feature even shows you a visual representation of the weld bead on screen, so you know exactly what to expect before you strike an arc.

Ready for Anything

While it shines on aluminum, the POWER MIG 360MP is a beast on steel and stainless too. It's a true multi-process machine that handles Stick, TIG, and Flux-Cored welding with ease. With a robust output range of 5 to 360 amps and the ability to run on almost any shop voltage (208V-575V), this welder is the versatile, reliable partner your business needs to stay ahead of the competition.

Additional Information
Brand:Lincoln Electric
Voltage:208/230/460/575 V
Amperage:350
Weld Process:Multi-Process
Duty Cycle:60%
Packaging Description:1-per-ea
Process Type:MIG, Pulsed MIG, Flux-Cored, Stick, DC TIG, Pulsed DC TIG
Input Voltage / Phase:208/230/460/575V 1-Phase
Output Range:5-360A
Rated Output:320A/30V/60%
Dimensions:37.3 x 18.0 x 40.4 in
Weight:134.26 kg
Included Accessories:Magnum PRO AL Rear-Trigger Gun, Magnum PRO 300 Gun, Gas Regulator, Work Clamp

INCLUDED

  • POWER MIG® 360MP Multi-Process Welder
  • Magnum® PRO AL Rear-Trigger Gun G225A, 7 pin (25 ft.) (7.6 m)
  • Aluminum Drive Roll kit, 2-roll, 3/64 in. (1.2 mm)
  • SuperGlaze® 5554 3/64 in. (1.2 mm) 16 lb (7.3 kg) spool
  • Magnum® PRO Curve 300 15 ft. Gun
  • .035/.045 in. Drive Rolls and Guide for Steel
  • Gas Regulator and Hose
  • Work clamp and 10 ft. (3.0 m) cable
  • 230V Input Cord and Plug
  • 115V AC Auxiliary Power Receptacle
  • Storage Compartment

APPLICATIONS

  • Automotive Repair and Restoration
  • Aluminum Body Work
  • General Fabrication
  • Maintenance and Repair
  • Brewery and Distillery Equipment
  • Railcar Fabrication
  • Light Industrial Manufacturing

FAQ

The One-Pak includes the POWER MIG 360MP welder, a Magnum PRO AL Rear-Trigger Push-Pull Gun (25ft), a Magnum PRO 300 MIG gun (15ft), aluminum and steel drive rolls, a spool of SuperGlaze 5554 aluminum wire, a gas regulator/hose, work clamp, and input cords.

Yes, the POWER MIG 360MP supports DC TIG and Pulsed DC TIG welding. However, it is a DC-only machine, so it cannot TIG weld aluminum (which requires AC). A TIG torch is not included in this package and must be purchased separately.

This machine features multi-voltage input capability and can operate on single-phase power at 208V, 230V, 460V, or 575V.

Pulse-on-Pulse is a Lincoln Electric feature that uses a sequence of varying pulse wave shapes to produce a TIG-like bead appearance and excellent weld properties when MIG welding aluminum. It helps control arc length and heat input.

Absolutely. While this package is optimized for aluminum with the included push-pull gun, it also comes with a standard Magnum PRO 300 gun and drive rolls for steel, making it excellent for mild and stainless steel MIG welding.

The rated output is 320A / 30V at 60% duty cycle.

This specific package (K4663-1) includes a Push-Pull gun, which is generally superior to a spool gun for production aluminum work. However, the machine is also compatible with spool guns if desired.

ArcFX Technology provides instant graphical feedback on the 7-inch display, showing how changes in Wire Feed Speed and Voltage will affect the outcome of the weld, helping users visualize settings before welding.

CATALOGUE & SPEC SHEETS

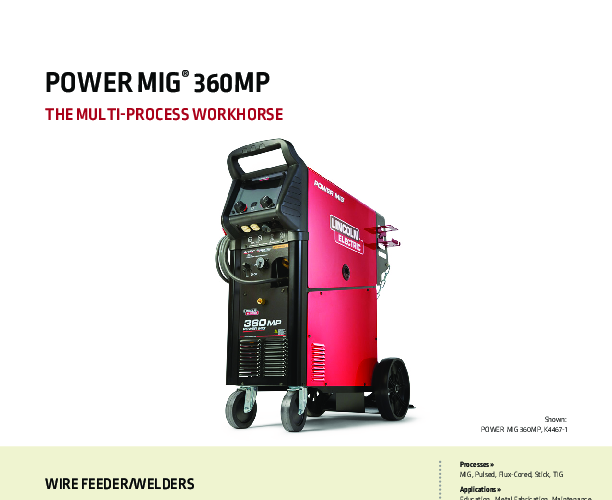

Spec Sheet
