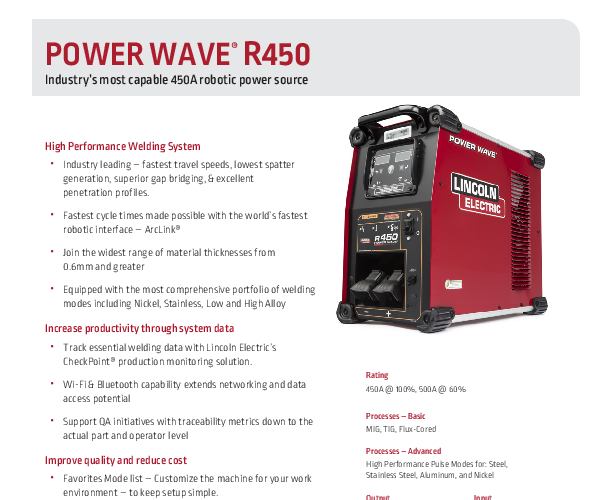

K3451-1 - Power Wave R450 Robotic Welder

Precision Power for Robotic Cells

The Power Wave R450 by Lincoln Electric is the welder's choice for automation, delivering raw power combined with sophisticated software control. Rated at 450 Amps at 100% duty cycle, this machine is built to run continuously in high-volume production environments without overheating or faltering. It supports a comprehensive portfolio of welding modes, including specialized waveforms for Nickel, Stainless Steel, and various High Alloys, ensuring you have the right arc characteristics for every job. The machine's Fastest Travel Speeds and rapid cycle times are made possible by its high-speed internal processing and ArcLink interface, which drastically reduces communication latency between the robot controller and the power source.

Setup and maintenance are streamlined with features designed for the technician in mind. The Favorites Mode List allows you to customize the machine's interface for your specific work environment, keeping setup simple and reducing the risk of operator error. The unit is also housed in a compact, rugged case (IP23 rated) that fits easily on robot risers or in crowded cells, with a footprint of just 14 inches wide. Despite its compact size, it packs a punch with a max output of 550 Amps.

Energy efficiency is also a key component of the R450's design. The Energy Saving Mode ensures the machine draws less than 50W when in Hibernate Mode, significantly reducing operational costs during idle times. Whether you are welding GMAW (MIG), GTAW (TIG), or Flux-Cored processes, the Power Wave R450 provides the stability and reliability required for precision robotic applications. It is fully compatible with Lincoln's family of advanced process software, allowing for future upgrades and waveform additions as your welding needs evolve.
