Lincoln Ranger 250 GXT Stainless Steel Engine Driven Welder K2382-5

$18,502.15/EA $17,345.76/1 Per Ea only $17,345.76/EASave 6%

Usually ships within 3-5 business days

OVERVIEW

Ranger 250 GXT: The Ultimate Stainless Steel Workhorse

Why settle for standard equipment when you can have the XTra performance of the Lincoln Ranger 250 GXT? Designed for the professional welder who demands reliability and versatility, this machine is housed in a premium stainless steel case that stands up to the elements, ensuring your investment looks and performs like new for years to come. Whether you are working on a construction site, performing field maintenance, or handling structural fabrication, the Ranger 250 GXT delivers the power you need with 250 amps of welding output for AC or DC stick and wire welding.

XTra Power and Versatility

The Ranger 250 GXT isn't just a welder; it's a powerhouse for your entire job site. With a massive 11,000 watts of peak AC generator power, you have the capacity to run high-amperage tools, lights, and even plasma cutters simultaneously. The 10,000 watts of continuous power ensures that your backup generator needs are fully met. The machine is also remote-ready, featuring a 6-pin connector that allows for extended amperage control or the addition of an AC TIG module, giving you the flexibility to weld aluminum and other alloys with precision.

Quiet, Rugged, and Reliable

Lincoln Electric understands that a comfortable work environment is a productive one. That's why the Ranger 250 GXT features a totally enclosed case that reduces noise levels to a low 76.4 dBA, allowing for easier communication on the job site. The Kohler 23 HP engine is protected behind three service access doors, making maintenance quick and hassle-free. An electric fuel gauge on the control panel lets you monitor fuel levels at a glance, so you never run dry in the middle of a critical weld. With its rugged reliability and comprehensive 3-year warranty on the welder, the Ranger 250 GXT is the partner you can trust for your toughest projects.

Additional Information
Amperage:250
Brand:Lincoln Electric
Watts:11000 W
Weld Process:Engine Drive
Duty Cycle:100%
Voltage:120/240 V
Engine Model:Kohler OHV Command CH730
Horsepower:23 HP
Fuel Type:Gasoline
Case Material:Stainless Steel
Fuel Tank Size:12 Gallons
Auxiliary Power:11,000 Watts Peak, 10,000 Watts Continuous
Noise Level:76.4 dBA at 23 ft
Weight:602 lbs
Dimensions:30.00 H x 21.50 W x 42.30 L (Inches)
Packaging Description:1 Per Ea

INCLUDED

  • Ranger 250 GXT Welder/Generator
  • Kohler OHV Command CH730 Gasoline Engine
  • Stainless Steel Case (Top, Sides, Doors)
  • Electric Fuel Pump
  • Owner's Manual

APPLICATIONS

  • Construction and Field Erection
  • General and Heavy Fabrication
  • Maintenance and Repair
  • Structural Welding
  • Farm and Ranch
  • Mechanical Contractor Support

FAQ

The Ranger 250 GXT provides 11,000 watts of peak single-phase AC generator power, which is ideal for motor starting.

Yes, this specific model (K2382-5) features a stainless steel roof, case sides, and engine doors for enhanced corrosion resistance.

It is powered by a 23 HP Kohler OHV Command CH730 2-cylinder, 4-cycle air-cooled gasoline engine.

The K2382-5 is equipped with an electric fuel pump, which helps avoid vapor lock during operation in high altitudes or hot weather.

It is capable of Stick (AC/DC), TIG (AC/DC with optional module), MIG, Flux-Cored, and Gouging processes.

The totally enclosed case design results in a low noise level of 76.4 dBA at 23 feet (7 meters).

The machine is rated for 10,000 watts of continuous single-phase AC power.

Yes, it is remote-ready with a 6-pin connector and a local/remote switch for remote control operation.

CATALOGUE & SPEC SHEETS

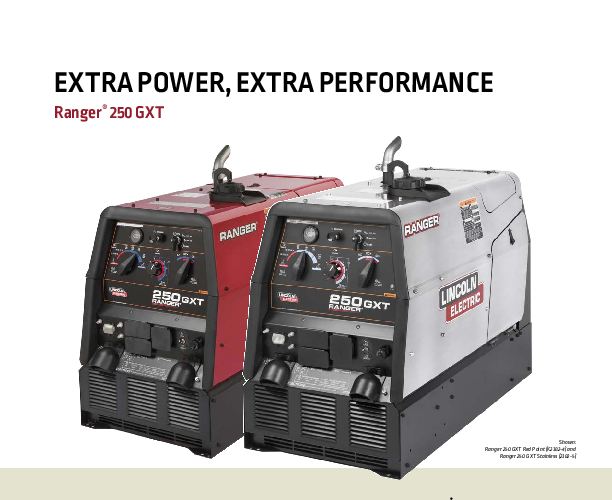

Spec Sheet
