ESAB Renegade ET 300iP Water-Cooled TIG Package with Foot Pedal

$13,426.23/ea $12,408.55/pack of 1 only $12,408.55/eaSave 8%

Usually ships within 3-5 business days

OVERVIEW

Extreme Power, Ultimate Portability

Meet the ESAB Renegade ET 300iP, the machine that changes the game for mobile TIG welding. If you are tired of hauling heavy transformer machines or underpowered inverters, the Renegade is your answer. This beast packs 300 amps of TIG welding power into a compact unit you can carry by the shoulder strap. This package is the "Pro Setup," coming complete with the TXH 252w water-cooled torch and a foot pedal, giving you the cool-running performance needed for all-day welding on thick materials or intricate alloys.

The arc characteristics of the Renegade are second to none. It features High Frequency (HF) start for non-contact ignition and Lift TIG for sensitive environments. The Pulse TIG functionality is adjustable up to 999 Hz, giving you incredible control over the weld puddle, arc width, and heat input—perfect for welding thin stainless steel or aluminum (DC) without burn-through. The interface is clean and digital, allowing you to set parameters quickly and save your favorite settings to memory buttons for instant recall.

Don't let the small size fool you; this machine is built for the grind. The housing is impact-resistant and designed to withstand the knocks and drops of real-world fabrication. Plus, with the ability to run on single or three-phase power from 208V all the way up to 575V, you never have to worry about finding the right outlet. Whether you are welding pipe in a rack, repairing heavy equipment in the field, or fabricating precision components in the shop, the Renegade ET 300iP delivers the smooth, stable arc professional welders demand.

Welder-Centric Features

  • High-Speed Pulse: Up to 999 Hz for focused arcs and reduced heat distortion.
  • Dual Process: Excellent Stick welding performance with adjustable Arc Force and Hot Start.
  • Water-Cooled Ready: Comes with the TXH 252w torch to keep your hands cool during heavy amperage runs.
  • Smart Power: Auto-detects input voltage so you can plug and weld anywhere.
Additional Information
Brand:ESAB
Amperage:300
Weld Process:TIG (GTAW)
Voltage:208/230/460/575 V
Packaging Description:1-each
Process Type:TIG (GTAW), Stick (SMAW), Pulsed TIG
Input Voltage:208V - 575V, 1-Phase / 3-Phase Auto-Detect
Amperage Range:5 A - 300 A
Duty Cycle:40%, 60%, 100%
Cooling Type:Water-Cooled Package
Included Accessories:TXH 252w TIG Torch (13ft), Foot Control, Ground Cable, Gas Hose
Portability:Portable Inverter, Handle and Shoulder Strap
Protection Class:IP23

INCLUDED

  • Renegade ET 300iP Power Source
  • TXH 252w Water-Cooled TIG Torch (13 ft / 4 m)
  • Foot Control Pedal
  • Work Lead (Ground Cable)
  • Gas Hose
  • Shoulder Strap

APPLICATIONS

  • Industrial Manufacturing
  • Pipe and Tube Fabrication
  • Aerospace and Defense
  • Shipbuilding and Offshore
  • Heavy Equipment Repair
  • Site Installation and Maintenance
  • Stainless Steel Fabrication

FAQ

The machine features an automatic input voltage sensor that accepts 1-phase or 3-phase power from 208V to 575V.

This specific package includes a water-cooled torch (TXH 252w), implying it is designed for use with a water cooler. However, the cooler unit (like the EC 1000) may need to be confirmed as included or purchased separately depending on the specific vendor bundle. The 'PKG' designation often implies a complete setup, but always verify the cooler unit inclusion.

The Renegade ET 300iP supports high-speed pulsing up to 999 Hz.

Yes, this package (FC PKG) explicitly includes a foot control pedal.

The ET 300iP is a DC TIG machine, so it is suitable for steel, stainless steel, and other ferrous metals. It does not have AC output for TIG welding aluminum (for that, you would need the Renegade ET 300iP AC/DC model).

The machine is rated at 300A @ 40% duty cycle, 250A @ 60%, and 200A @ 100%.

The power source weighs approximately 17 kg (37.5 lbs), making it highly portable for a 300A machine.

Yes, it has excellent SMAW (Stick) capabilities, including adjustable Hot Start and Arc Force.

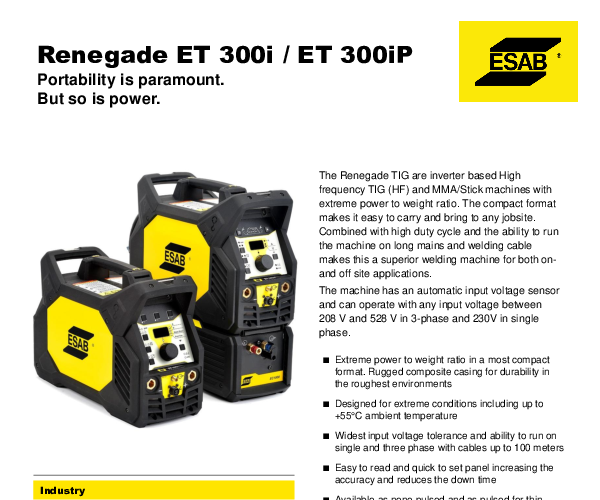

CATALOGUE & SPEC SHEETS

Spec Sheet
