1-3000-1 - Thermal Dynamics Cutmaster 30 Plus Handheld Plasma System

Packaging: 1 per ea
$2,393.95/ea $2,386.23/1 per ea only $2,386.23/ea

Usually ships within 3-5 business days

OVERVIEW

Power and Portability: Master the Cut

Take your metal cutting capabilities to the next level with the Thermal Dynamics Cutmaster 30+ Plasma Cutter. Whether you are a hobbyist working in your garage or a professional contractor on the move, this machine offers the perfect blend of raw power and lightweight design. Weighing in at just 24 lbs, the Cutmaster 30+ is built to go wherever the work is, featuring three convenient handles and a rugged, all-weather housing that can handle the bumps and bruises of the job site.

See More, Do More

Gone are the days of guessing your settings. The Cutmaster 30+ features a large, crystal-clear 4.3-inch LCD screen that puts you in total control. Easily adjust your amperage, check your air pressure, and switch between modes with a simple turn of the glove-friendly knob. The machine is smart, too—it automatically detects whether you are plugged into 110V or 240V power and adjusts its maximum output accordingly. You can cut up to 3/8-inch thick steel with precision, or sever up to 5/8-inch when you just need to separate material fast.

The Total Package

The Cutmaster 30+ isn't just a machine; it's a complete cutting solution. It comes ready to run with the industrial-grade SL60 1Torch, the same torch used on much larger systems. This means you get superior cut quality and access to widely available consumables. Speaking of consumables, this package includes the new Black Series electrodes, which last up to 60% longer than standard parts, saving you money and downtime. With features like Grate Cutting Mode (for cutting expanded metal) and a 3-year warranty, the Cutmaster 30+ is the reliable partner you need for any fabrication project.

Additional Information
Brand:Thermal Dynamics
Weld Process:Plasma Cutting
Amperage:30
Voltage:110/240 V
Duty Cycle:40%
Input Voltage:110-240 V
Phase:1-Phase
Sever Capacity:5/8 in. (16 mm)
Torch Included:SL60 1Torch
Gas Pressure:90-125 PSI
Gas Flow:170-350 CFH
Weight:24.25 lbs
Protection Class:IP23S
Packaging Description:1 per ea

INCLUDED

  • Cutmaster 30+ power supply
  • 16 ft. (5 m) SL60 1Torch with 75-degree head
  • 13 ft. (4 m) work cable with clamp and male dinse connector
  • Spare parts kit (Black Series consumables)
  • 50 A to 20 A power adapter
  • 20 A to 15 A power adapter
  • 1/4 in. NPT air fitting with quick connect
  • Operator's manual

APPLICATIONS

  • General Fabrication
  • HVAC Repair and Maintenance
  • Automotive Body Repair
  • Agricultural Equipment Repair
  • Pipeline Maintenance
  • Training Schools and Education
  • Light Industrial Manufacturing
  • Home Hobbyist and DIY Projects

FAQ

The Cutmaster 30+ has a recommended clean cut capacity of 3/8 inch (10 mm) and a maximum severance capacity of 5/8 inch (16 mm) on mild steel.

It runs on both. The machine features dual-voltage input (110-240V, 1-phase) with automatic voltage detection, so no manual rewiring is required.

The system comes with the industrial SL60 1Torch with a 16-foot lead and a 75-degree head. It uses the ATC (Advanced Torch Connector) for easy removal.

You will need a compressed air supply delivering 90-125 psi (6.2-8.6 bar) at a flow rate of 170-350 cfh (80-150 l/min).

The machine is rated for a 40% duty cycle at maximum output (30A) and a 100% duty cycle at 20A.

Yes, it includes a spare parts kit featuring the Cutmaster Black Series consumables, which are designed for up to 60% longer life.

Yes, the Cutmaster 30+ features an IP23S-rated housing, making it durable and weather-resistant for outdoor job sites.

Yes, the unit has a specific Grate Cutting Mode that maintains the pilot arc when passing over gaps in the material.

CATALOGUE & SPEC SHEETS

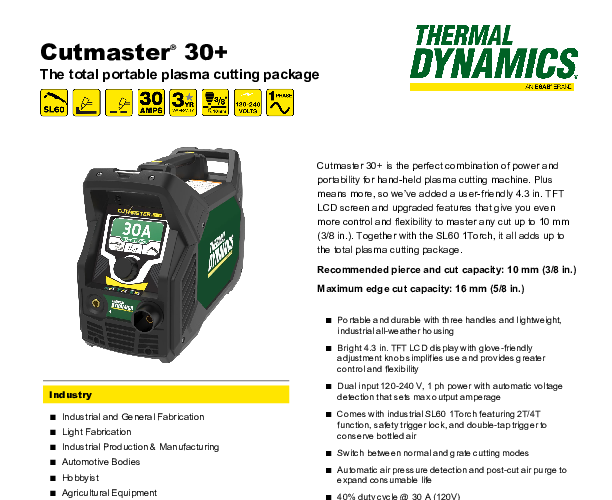

Spec Sheet
