1-5630-1X - Thermal Dynamics Cutmaster 60i Plasma Cutter with SL60QD Torch, 20ft

Packaging: 1 per each
$4,600.02/ea $4,134.07/1 per each only $4,134.07/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Portable Plasma Cutter for Every Job Site

When you need a plasma cutter that can travel anywhere and cut through almost anything, the Thermal Dynamics Cutmaster 60i is your go-to solution. Weighing in with the best power-to-weight ratio in its class, this machine is built for the welder who is constantly on the move. Whether you are working on agricultural equipment in the field, repairing automotive bodies in the shop, or handling HVAC ductwork on a construction site, the Cutmaster 60i delivers the raw power you need in a package you can easily carry. The integral multi-handle design acts as a roll cage, protecting the machine from drops and bumps while offering multiple grip points for easy transport.

The Cutmaster 60i isn't just tough; it's smart. The oversized display is easy to read even in bright sunlight, so you aren't squinting to check your settings. Setup is a breeze with the Gas Optimizer mode, which automatically sets the air pressure for the best cut, taking the guesswork out of your prep time. One of the standout features is the SL60QD 1Torch. If you damage your torch lead or handle, you don't have to buy a whole new assembly—the quick disconnect lets you swap out just the part you need, saving you money and getting you back to work faster.

With the ability to sever metal up to 1-1/2 inches thick and a solid 3/4-inch recommended cut, this machine punches well above its weight. It comes ready to run out of the box with a full set of consumables, including drag tips and a gouging tip, so you can tackle a variety of cutting and gouging tasks immediately. From the 4-year warranty to the rugged design, the Cutmaster 60i is built to keep up with the hardest working welders in the industry.

Additional Information
Brand:ESAB
Weld Process:Plasma Cutting
Amperage:60
Voltage:208/230/460 V
Duty Cycle:60%, 50%, 100%
Input Voltage:208 - 480 V
Phase:Single Phase
Recommended Cutting Capacity:3/4 in. (20 mm)
Maximum Severance:1-1/2 in. (38 mm)
Pierce Capacity:3/4 in. (20 mm)
Torch Model:SL60QD 1Torch
Torch Cable Length:20 ft
Gas Type:Air
Warranty:4 Years (Power Supply), 1 Year (Torch)
Dimensions:21.12" x 7.85" x 14.15"
Packaging Description:1 per each
Cutting Capacity:1.5"

INCLUDED

  • Cutmaster 60i Power Supply
  • SL60QD 1Torch with 20 ft (6.1 m) Lead
  • Work Lead with Ground Clamp
  • Spare Parts Kit
  • Operating Manual and Quick-Start Guide
  • 60A Consumables Set (2 Cutting Tips, 3 Drag Tips, 1 Gouging Tip)

APPLICATIONS

  • Agricultural Equipment Repair
  • Automotive Body Fabrication
  • Construction Site Cutting
  • General Manufacturing
  • HVAC Ductwork Installation
  • Maintenance and Repair Operations (MRO)
  • Training Schools and Education

FAQ

The Cutmaster 60i has a recommended cut capacity of 3/4 inch (20 mm) and a maximum severance capacity of 1-1/2 inches (38 mm).

Yes, the machine features automatic multi-voltage detection and operates on single-phase input power from 208V to 480V.

This package includes the SL60QD 1Torch with a 20-foot (6.1 m) lead and a 75-degree head.

The Cutmaster 60i is rated at a 50% duty cycle at 60 Amps, 60% at 50 Amps, and 100% at 40 Amps.

The unit requires clean, dry, oil-free air or nitrogen. It features a Gas Optimizer mode to assist in setting the correct pressure.

Yes, the SL60QD features a quick disconnect (ATC) that allows you to replace either the torch handle or the leads independently, saving replacement costs.

Thermal Dynamics offers an industry-leading 4-year warranty on the power supply and a 1-year warranty on the torch.

Yes, it comes with a full set of 60A consumables, including two cutting tips, three drag tips, and a gouging tip.

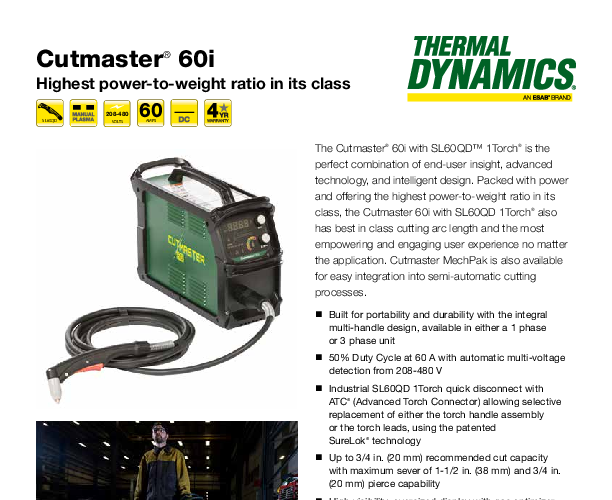

CATALOGUE & SPEC SHEETS

Spec Sheet
